techiny.com Brim and skirt are crucial techniques in 3D printing pets to ensure better adhesion and prevent warping. A brim adds extra lines of filament attached directly to the pet model's base, enhancing stability and minimizing edge lifts. A skirt prints a separate outline surrounding the pet model without touching it, priming the nozzle and allowing observation of filament flow before the main print starts.
Table of Comparison
| Feature | Brim | Skirt |
|---|---|---|
| Definition | Extra lines of filament printed around the base of the object, connected to it. | Lines of filament printed around the object but not touching it. |
| Primary Purpose | Improves bed adhesion and reduces warping. | Priming the nozzle and checking bed leveling. |
| Adhesion Impact | Increases adhesion by creating a larger surface area. | No impact on adhesion since it does not touch the print. |
| Material Usage | Higher due to additional filament connected to the print. | Minimal filament usage. |
| Removal | Requires removal after printing, can leave marks. | Easily removed, often no cleanup needed. |
| Use Case | Best for prints with small bases or prone to warping. | Best for nozzle priming and print start stability. |
Understanding Brim and Skirt in 3D Printing
Brim in 3D printing refers to a series of lines printed around the base of the object to enhance bed adhesion and prevent warping during the initial layers. Skirt involves printing a few perimeter lines away from the object to prime the extruder and stabilize the flow of filament without touching the print. Understanding the differences between brim and skirt helps optimize print quality and reduce failures caused by poor adhesion or extrusion inconsistencies.
Key Differences Between Brim and Skirt
Brim and skirt are two common 3D printing techniques used to enhance bed adhesion and print quality. A brim adds extra lines of filament connected directly to the print's base to prevent warping and improve stability, while a skirt is a non-attached outline around the model used primarily to prime the extruder and check bed leveling. Key differences include the brim's function in increasing the surface area for adhesion versus the skirt's role in extrusion preparation without affecting the print's base.
When to Use a Brim in 3D Printing
A brim in 3D printing is ideal for improving bed adhesion on models with small footprints or sharp corners that tend to warp or detach during printing. It extends outward from the base of the model by several lines, creating a solid surface that reduces the risk of print failure caused by lifting or warping. Use a brim when printing with materials prone to warping, such as ABS or nylon, or when printing intricate parts that require extra stability during the initial layers.
When to Use a Skirt in 3D Printing
A skirt in 3D printing is ideal for priming the extruder and stabilizing the flow of filament before the actual print begins, preventing under-extrusion in the initial layers. It helps verify bed adhesion and calibration without consuming much material, making it suitable for models that have a large, flat base or when using new filament. Skirts do not touch the printed object, so they are beneficial when avoiding surface imperfections or when no additional adhesion support like brim is necessary.
Pros and Cons of Brim
A brim in 3D printing expands the base of the print by adding several lines attached to the model, improving bed adhesion and reducing warping for materials like ABS and nylon. Its main advantage is enhancing stability and preventing edge lifting during printing, but it increases post-processing time since the brim must be carefully removed and can sometimes mar the surface finish near the bottom edges. Unlike a skirt, which does not touch the model, the brim's direct attachment ensures stronger adhesion but may consume more filament and complicate prints with delicate bases.
Pros and Cons of Skirt
Skirts in 3D printing create a thin outline around the print without adhesion, helping to prime the extruder and stabilize temperature before starting the main object. Pros include faster prep time and less material usage compared to brims, minimizing cleanup and reducing waste. Cons involve limited bed adhesion support, making skirts unsuitable for preventing warping on larger or warped-prone prints.
Impact on Print Quality: Brim vs Skirt
Brims improve print adhesion by creating a solid base around the model, reducing warping and enhancing the stability of the first layers, which directly improves print quality. Skirts help prime the extruder and establish consistent filament flow without affecting bed adhesion, making them less effective in preventing warping but useful for visual inspection before printing. Choosing a brim results in better edge definition and stronger part adherence, while skirts prioritize filament readiness over print stability.
Brim vs Skirt: Adhesion and Warping Solutions
Brim and skirt are essential 3D printing techniques addressing adhesion and warping issues; a brim creates a wider edge around the print, improving bed adhesion and minimizing warping by increasing the surface area in contact with the build plate. Skirts, in contrast, do not touch the print but prime the nozzle and stabilize extrusion, providing limited assistance with warping while enhancing first-layer quality. Brims are preferred for prints prone to warping or with small footprints, whereas skirts are ideal for ensuring nozzle readiness without affecting adhesion.
Optimizing Print Settings: Brim and Skirt
Brim and skirt are essential 3D printing settings used to improve bed adhesion and minimize warping, with brims adding extra lines that extend from the print's base to anchor it firmly, while skirts create a perimeter around the model without touching it to prime the nozzle. Optimizing brim settings involves adjusting width and line count for larger surfaces to prevent curling, whereas skirt adjustments focus on distance and line count to ensure consistent extrusion before printing starts. Proper calibration of brim and skirt settings enhances first-layer quality, reduces print failures, and improves overall surface finish.
Choosing the Right Option: Brim or Skirt for Your Project
Selecting between a brim or skirt in 3D printing depends on your project's adhesion needs and print surface. A brim adds extra rings of filament around the base of the object to improve bed adhesion and prevent warping, ideal for large or complex prints. Skirts, on the other hand, are outlines printed around the object without touching it, helping to prime the nozzle and stabilize extrusion but offering minimal adhesion support.

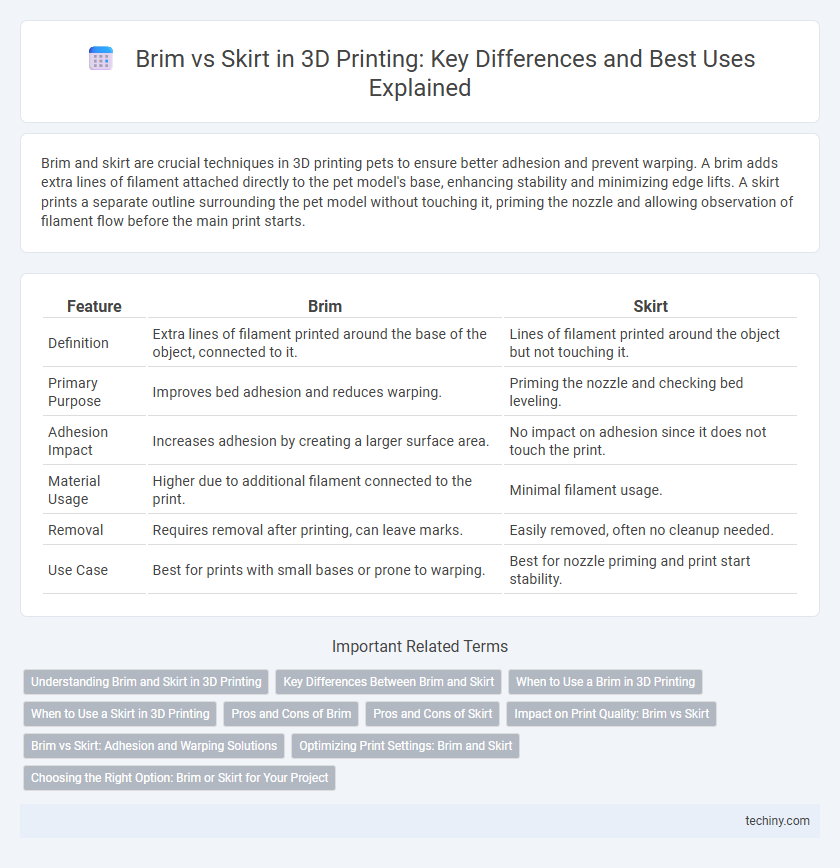

Brim vs Skirt Infographic
