techiny.com Support structures in 3D printing provide essential stability for complex pet models but often require manual removal, which can risk damaging delicate features. Soluble supports dissolve in water or specialized solvents, offering a cleaner finish and reducing post-processing time. Choosing between these options depends on the model's intricacy and the desired surface quality for realistic pet figures.
Table of Comparison
| Aspect | Support Structures | Soluble Supports |
|---|---|---|
| Material | Same as main print filament (e.g., PLA, ABS) | Dissolvable materials (e.g., PVA, HIPS) |
| Removal Method | Manual removal or breakaway | Dissolves in water or solvent |
| Surface Finish | Risk of marks or damage on removal | Smoother finish, less post-processing |
| Complex Geometry | Limited support for intricate designs | Excellent for complex overhangs and internal cavities |
| Printing Time | Typically shorter, no additional steps | Longer due to dual extrusion and dissolution |
| Cost | Lower material cost | Higher due to specialized filaments and solvents |
| Environmental Impact | Waste material disposal required | Some solvents are eco-friendly; material biodegrades |
Introduction to 3D Printing Support Systems
Support structures in 3D printing provide essential stability for overhanging features and complex geometries to prevent deformation during the printing process. Soluble supports, made from materials like PVA or HIPS, dissolve easily in water or specific solvents, enabling cleaner removal and finer surface quality on the finished part. Choosing between traditional and soluble supports depends on the printer type, material compatibility, and desired post-processing requirements for optimal print outcomes.
What Are Traditional Support Structures?
Traditional support structures in 3D printing are temporary frameworks made from the same material as the main print, designed to uphold overhanging or complex geometries during the printing process. These supports are manually removed after printing, often requiring post-processing steps like cutting or sanding, which can affect surface quality. While cost-effective, traditional supports may increase material usage and print time compared to advanced methods like soluble supports.
What Are Soluble Support Materials?
Soluble support materials are specialized filaments used in 3D printing that dissolve in specific solvents, leaving the main printed object free of any support remnants. Common soluble materials include PVA (Polyvinyl Alcohol) and HIPS (High Impact Polystyrene), which dissolve in water and limonene respectively, enabling complex geometries without manual removal. These supports improve print quality and detail resolution by preventing surface damage during the post-processing phase.
Key Differences Between Support Structures and Soluble Supports
Support structures in 3D printing provide physical backing for overhanging parts and are typically removed manually after printing, often leaving surface marks or requiring extensive post-processing. Soluble supports, made from materials like PVA or HIPS, dissolve in a specific solvent, allowing for cleaner removal and preserving complex geometries without damaging the printed object. The key differences lie in material composition, ease of removal, and the impact on surface quality and printability of intricate designs.
Material Compatibility in 3D Printing Supports
Support structures in 3D printing often rely on materials like PLA or ABS, which are compatible with a wide range of print filaments but require manual removal. Soluble supports, typically made from PVA or HIPS, offer enhanced material compatibility by dissolving in water or limonene, enabling complex geometries without surface damage. Selecting the right support material depends on the primary filament used and the printer's capabilities to ensure optimal adhesion and clean removal.
Ease of Removal: Manual vs. Dissolvable Supports
Manual support structures in 3D printing require physical removal, which can be time-consuming and risk surface damage, especially on intricate geometries. Soluble supports, made from materials like PVA or HIPS, dissolve in water or specific solvents, offering a cleaner and less labor-intensive removal process. This dissolvable method enhances print quality by preserving fine details and reducing post-processing effort.
Surface Finish and Print Quality Impact
Support structures in 3D printing provide necessary stability but often leave marks and require post-processing, which can compromise surface finish and overall print quality. Soluble supports dissolve in a solvent, ensuring cleaner edges and smoother surfaces without mechanical removal, significantly enhancing the final aesthetic and dimensional accuracy. Choosing soluble supports is ideal for intricate models requiring high detail and minimal surface imperfections.
Cost Considerations: Traditional vs. Soluble Supports
Traditional support structures in 3D printing typically incur lower material costs but add significant post-processing time, increasing labor expenses. Soluble supports, made from materials like PVA or HIPS, often have higher initial material costs but reduce manual removal effort and risk of surface damage, potentially lowering overall production costs in complex prints. Manufacturers must balance upfront expenses with time savings and quality outcomes when choosing between traditional and soluble support solutions.
Environmental and Waste Implications
Support structures in 3D printing often result in significant plastic waste, contributing to environmental pollution if not properly recycled. Soluble supports, typically made from biodegradable materials like PVA or HIPS, reduce post-printing waste by dissolving in water or specific solvents, minimizing landfill impact. Choosing soluble supports enhances sustainability by enabling easier recycling and lowering the ecological footprint associated with support removal.
Choosing the Right Support System for Your 3D Print
Selecting the right support system for your 3D print significantly impacts print quality and post-processing time. Support structures, typically made from the same material as the main print, offer stability but require manual removal and can leave surface imperfections. Soluble supports, created from materials like PVA or HIPS, dissolve in water or suitable solvents, ensuring smoother finishes and intricate detail preservation, making them ideal for complex geometries and multi-material prints.

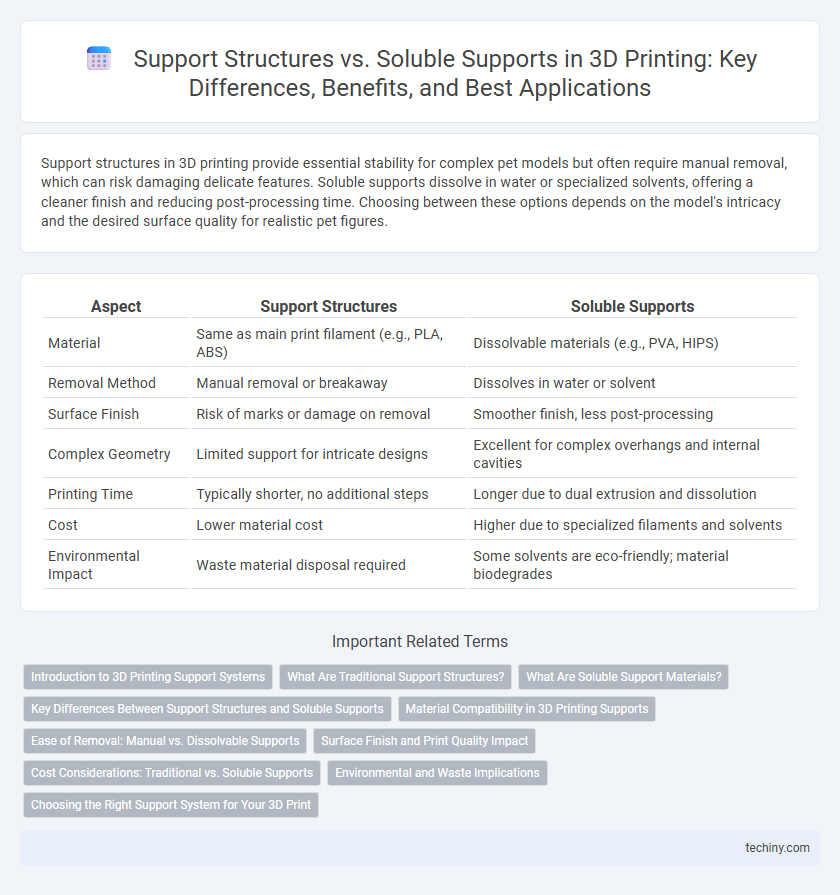

Support Structures vs Soluble Supports Infographic
