techiny.com Support structures in 3D printing provide essential stability for complex pet models with overhangs, preventing deformation and ensuring accurate detail. Rafts serve as a foundation layer that improves adhesion to the build plate, reducing warping during printing. Choosing between support structures and rafts depends on the pet model's geometry and the printer's capabilities to achieve optimal quality.
Table of Comparison
| Feature | Support Structures | Raft |
|---|---|---|
| Purpose | Support overhangs and complex geometry | Improve adhesion to the build plate |
| Material Usage | Moderate to high, based on model complexity | High, creates a base layer under the model |
| Print Time Impact | Increases time due to extra structures | Increases time due to additional layers |
| Removal Ease | Can be difficult, may leave marks | Generally easier with clean separation |
| Surface Finish | May require post-processing | Better first layer finish, possible bottom texture |
| Use Cases | Complex parts with overhangs or bridges | Models with poor bed adhesion or small footprint |
Understanding Support Structures in 3D Printing
Support structures in 3D printing are temporary frameworks designed to stabilize overhangs and complex geometries during the printing process, preventing sagging or collapse. Unlike rafts, which form a base layer to improve adhesion to the print bed, support structures specifically address the physical challenges of printing intricate details and angles. Properly designed support structures minimize material waste and post-processing effort while ensuring dimensional accuracy and surface quality in the final print.
What is a Raft in 3D Printing?
A raft in 3D printing is a horizontal lattice of filament printed beneath the actual model to improve adhesion to the build plate and prevent warping. It provides a stable foundation by compensating for uneven surfaces and ensuring the first layers adhere properly. Unlike support structures that hold overhangs, rafts are primarily used to enhance bed adhesion and facilitate easier print removal.
Key Differences: Support Structures vs Raft
Support structures in 3D printing are temporary scaffolds designed to prevent overhangs or complex geometries from collapsing during the printing process, ensuring precision and structural integrity. Rafts, conversely, serve as a foundational base layer printed beneath the actual object to enhance bed adhesion and compensate for uneven print surfaces. While supports directly contact the model to uphold intricate parts, rafts create a stable printing platform primarily for improving print stability and minimizing warping.
When to Use Support Structures
Support structures are essential in 3D printing when overhangs exceed 45 degrees or complex geometries require additional stability during the build process. They prevent print failures by providing necessary reinforcement for floating or protruding parts that cannot be printed in mid-air. Using support structures ensures better surface quality and dimensional accuracy for intricate designs compared to relying solely on rafts.
When to Use a Raft
A raft is ideal for 3D printing on uneven or warped build plates, enhancing adhesion and preventing warping during the initial layers. Use a raft when printing models with small footprints or intricate details to stabilize the base and improve overall print quality. Rafts also help when printing with materials prone to poor bed adhesion, such as ABS or nylon.
Print Quality: Support Structures vs Raft
Support structures in 3D printing enhance the quality of overhangs and intricate details by preventing sagging or warping during the printing process, resulting in smoother surface finishes. Rafts improve bed adhesion and reduce warping for the entire model but can leave rougher bottoms that require post-processing to achieve optimal print quality. Choosing between support structures and rafts depends on balancing fine detail preservation with foundational stability to achieve the highest overall print quality.
Material Consumption Comparison
Support structures in 3D printing consume less material than rafts because they are designed to only reinforce overhangs and complex geometries, minimizing unnecessary usage. Rafts require a full base layer beneath the model, significantly increasing filament consumption and print time. Optimizing print settings to reduce raft thickness or opting for support structures alone can lead to more efficient material utilization and cost savings.
Removal and Post-Processing: Ease and Challenges
Support structures in 3D printing are designed to uphold overhangs and complex geometries but often require careful removal, which can be time-consuming and may leave surface imperfections needing additional sanding or finishing. Rafts provide a stable base layer that enhances adhesion and minimizes warping, making first layers easier to print, but they must be peeled away post-printing, sometimes leaving rough undersides that require cleanup. Both support structures and rafts impact post-processing workflows, with supports typically presenting more intricate removal challenges due to their placement under model features.
Cost Implications of Supports and Rafts
Support structures in 3D printing often increase material usage and post-processing time, leading to higher overall costs compared to rafts. Rafts, while consuming extra filament, typically reduce print failure rates and improve bed adhesion, potentially minimizing costly reprints. Careful selection between supports and rafts based on part geometry and printer capabilities optimizes both material expenses and production efficiency.
Best Practices for Optimizing Supports and Raft Usage
Optimizing 3D printing support structures involves using minimal contact points with the model to reduce post-processing scarring while ensuring adequate stability for overhangs and complex geometries. Raft usage is best reserved for improving bed adhesion and warping prevention on materials prone to shrinkage, such as ABS or nylon, especially for models with small footprints. Combining thin, easily removable supports with precisely calibrated raft settings enhances print quality and reduces material waste.

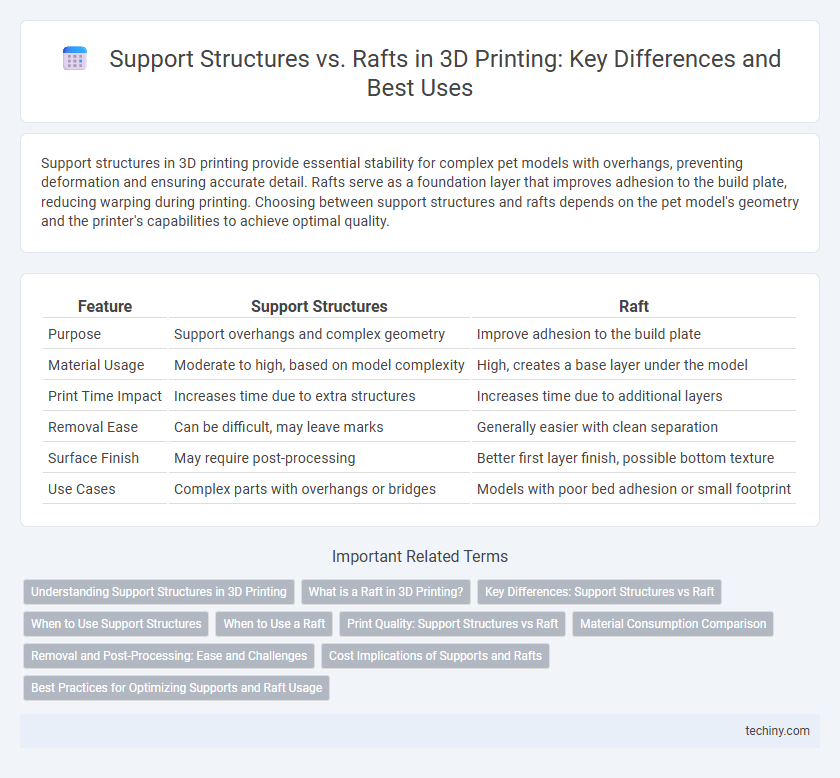

Support Structures vs Raft Infographic
