techiny.com Support structures provide temporary scaffolding for overhanging parts in 3D printing pets, ensuring accurate detail and preventing sagging during the build process. Rafts create a flat base layer beneath the pet model to improve bed adhesion and reduce warping, especially on uneven or textured print surfaces. Choosing between support structures and rafts depends on the pet's design complexity and the printer's bed quality for optimal print success.
Table of Comparison
| Feature | Support Structure | Raft |
|---|---|---|
| Purpose | Supports overhangs and complex geometries | Enhances bed adhesion and stabilizes first layers |
| Location | Directly under overhanging parts | Underneath the entire print base |
| Material Usage | Higher, depends on model complexity | Moderate, adds a solid base layer |
| Removal | Requires careful detachment to avoid damage | Peels off as a whole, usually easier |
| Print Time | Increases with complexity | Adds additional layers, moderate increase |
| Surface Finish | May leave marks on contact points | Better bottom surface, possible raft lines visible |
| Best Use Case | Complex overhangs and bridges | Warp-prone materials and uneven beds |
Understanding 3D Printing Support Structures
3D printing support structures provide essential stability for overhanging or complex geometries, preventing deformation and ensuring precise layer formation. Unlike rafts, which create a base layer to improve adhesion and reduce warping, support structures are strategically placed beneath specific model sections to uphold intricate details during printing. Proper understanding and placement of support structures optimize material use and post-processing time while enhancing print quality.
What Is a Raft in 3D Printing?
A raft in 3D printing is a horizontal lattice of material printed beneath the actual object to improve bed adhesion and prevent warping during the printing process. Unlike support structures, which provide vertical support for overhanging parts, a raft creates a stable foundation by increasing surface contact between the object and the build plate. Rafts are particularly useful for materials prone to warping, such as ABS, and help ensure successful prints by minimizing printing failures caused by poor adhesion.
Key Differences Between Support Structures and Rafts
Support structures in 3D printing provide temporary scaffolding to uphold overhanging features and complex geometries during the print, ensuring dimensional accuracy and preventing sagging. Rafts, on the other hand, form a flat, lattice-like base layer beneath the entire model to improve bed adhesion and reduce warping on challenging surfaces. Key differences include their primary function--support versus adhesion--and the post-processing complexity, as supports usually require careful removal from intricate areas, while rafts detach from the bottom without affecting model details.
When to Use Support Structures vs Rafts
Support structures are essential for 3D printing overhangs or complex geometries that exceed the printer's bridging capabilities, providing stability to prevent sagging or collapse during the print process. Rafts are best used when printing on uneven or unprepared build surfaces, enhancing bed adhesion by creating a flat, stable base that reduces warping and improves first-layer success. Selecting between support structures and rafts depends on specific print requirements: use supports for detailed overhang support and rafts for improved adhesion on challenging print beds.
Impact on Print Quality: Support Structures vs Rafts
Support structures provide targeted reinforcement for overhangs and complex geometries, minimizing deformation and ensuring precise details, which directly enhances print quality in intricate designs. Rafts create a stable base layer that improves adhesion to the build plate and reduces warping, but may leave a rougher bottom surface, potentially affecting the final finish. Choosing between support structures and rafts depends on balancing structural needs with surface quality requirements to optimize overall print accuracy and smoothness.
Material Consumption and Waste Comparison
Support structures in 3D printing consume more material as they are built to uphold overhangs and complex geometries, often resulting in increased waste after removal. Rafts, used primarily for bed adhesion, typically use less material but still contribute to excess print due to the additional base layer that must be discarded post-printing. Comparing both, support structures usually generate greater material consumption and waste compared to rafts, impacting cost efficiency and sustainability efforts.
Removal Process: Ease and Challenges
Support structures in 3D printing provide necessary scaffolding for overhangs and complex geometries, but their removal can be labor-intensive due to precision trimming and potential surface damage. Rafts, printed as a base layer beneath the model, are easier to peel off but may leave residue requiring additional post-processing to achieve a smooth finish. The choice between support structure and raft removal depends on the model's intricacy, material type, and desired surface quality.
Influence on Print Time and Efficiency
Support structures in 3D printing provide necessary stabilization for overhangs, but they increase print time due to added material and complexity in removal. Rafts improve bed adhesion, reducing failed prints, yet they also extend print duration by creating an initial base layer. Optimizing the balance between support structures and rafts can significantly enhance print efficiency while minimizing material waste and post-processing effort.
Cost Implications: Support Structures vs Rafts
Support structures in 3D printing increase material usage and post-processing time, leading to higher overall costs, especially for complex geometries requiring extensive support removal. Rafts consume additional material and printing time by creating a base layer, which can slightly raise costs but improve print adhesion and reduce warping risks. Choosing between support structures and rafts depends on balancing material expenses, print quality, and the complexity of the model to optimize cost-efficiency.
Best Practices for Optimal 3D Printing Results
Support structures are essential for overhangs and intricate geometries, ensuring stability and preventing print failures, while rafts improve bed adhesion by providing a solid base for the first layers. Optimizing support density and placement reduces material use and post-processing time, whereas selecting the right raft thickness and pattern enhances surface finish and minimizes warping. Balancing these elements according to the printer type and material significantly improves dimensional accuracy and overall print quality.

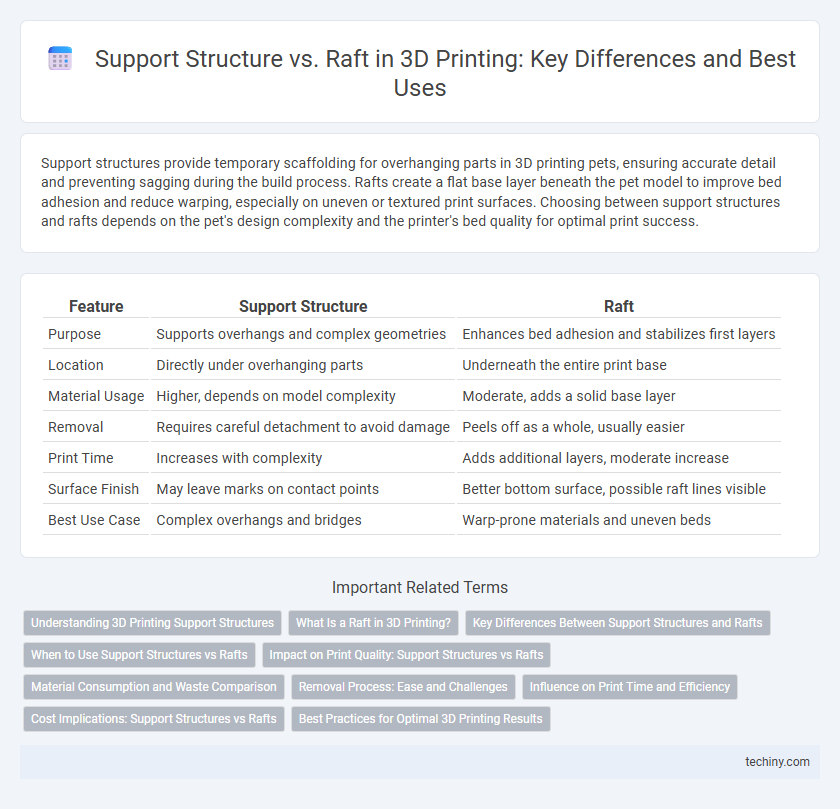

Support Structure vs Raft Infographic
