techiny.com A raft provides a sturdy base layer that enhances bed adhesion and prevents warping in 3D printing pets, especially with complex shapes or delicate parts. A skirt, on the other hand, serves as a preliminary outline to prime the extruder and stabilize material flow without directly supporting the print. Choosing between a raft and skirt depends on the pet model's geometry and the need for adhesion versus material flow preparation.
Table of Comparison
| Feature | Raft | Skirt |
|---|---|---|
| Purpose | Improves bed adhesion and levels uneven surfaces | Prepares nozzle and checks filament flow |
| Contact with Print | Direct contact, base layer under model | No contact, surrounds the model |
| Material Usage | High, creates a solid base | Low, thin line around model |
| Print Time Impact | Increases print time significantly | Minimal impact on print time |
| Removal | Requires careful removal, may damage the print | Easy to remove, no damage risk |
| Ideal Use Case | Warp-prone models, uneven print beds | Ensuring extrusion consistency before printing |
Understanding Raft and Skirt in 3D Printing
Raft and skirt are foundational adhesion techniques used in 3D printing to improve print quality and bed adhesion. A raft is a thick grid-like base printed underneath the object, providing enhanced stability and minimizing warping, especially for materials prone to shrinkage like ABS. Skirt is an outline printed around the object's perimeter without contact, priming the nozzle and verifying bed leveling before the main print begins.
Key Differences Between Raft and Skirt
Raft and skirt are fundamental build plate adhesion techniques in 3D printing, each serving distinct purposes. A raft is a thick grid of material printed beneath the entire object to improve adhesion and compensate for uneven surfaces, often increasing print time and material usage. In contrast, a skirt is a preliminary outline around the object that primes the extruder, helps detect extrusion issues, and stabilizes flow without touching the printed part, using minimal extra material.
Pros and Cons of Using a Raft
Using a raft in 3D printing provides enhanced bed adhesion and helps prevent warping, especially for models with small footprints or uneven surfaces. However, rafts consume additional filament, increase print time, and may leave rougher bottom surfaces that require post-processing. While rafts improve print stability, they can complicate removal and reduce overall surface quality compared to skirts.
Advantages and Disadvantages of Skirt
A skirt in 3D printing serves as an outline around the object to prime the extruder and stabilize temperature without using additional filament beneath the print, saving material compared to a raft. It provides easy detection of adhesion issues early in the print process but offers no direct support for the object's base, which can lead to warping with certain materials or larger prints. Skirts are faster to print and require less cleanup, making them ideal for prints on well-leveled beds where adhesion is already reliable.
When to Use a Raft in 3D Printing
Use a raft in 3D printing when printing models with small footprints or uneven surfaces to improve bed adhesion and prevent warping. Rafts provide a stable base by creating multiple layers beneath the model, enhancing first layer bonding and reducing the risk of print failure. Ideal for materials prone to curling, such as ABS or nylon, rafts improve overall print stability on less reliable build plates.
Situations Best Suited for Skirt
Skirts are best suited for situations where bed adhesion is reliable, and the primary goal is to prime the extruder without using extra material for the base. They are ideal for prints on well-leveled beds with consistent temperature control, allowing fast printing starts without risking part deformation. Skirts also help detect issues like filament flow or nozzle clogging early in the process, especially in prints with small footprints.
Impact of Raft and Skirt on Print Quality
Rafts improve print adhesion by creating a stable base, reducing warping and ensuring better layer alignment, which enhances overall print quality. Skirts help prime the extruder and stabilize the flow of filament but do not affect bed adhesion or warping directly, resulting in minimal impact on print surface quality. Choosing between raft and skirt depends on the material and printer setup, with rafts benefiting prints prone to lift or distortion while skirts suit well-calibrated printers.
Material Consumption: Raft vs. Skirt
Raft consumes significantly more material than a skirt as it involves multiple layers printed beneath the entire object to enhance adhesion and stability. Skirts use minimal filament, consisting of one or two outlines around the print to prime the extruder without additional base layers. Choosing a skirt reduces material waste and printing time, making it more economical for models with good bed adhesion.
Step-by-Step Setup for Raft and Skirt
To set up a raft in 3D printing, start by enabling the raft option in your slicer software, which generates multiple layers beneath the model for improved adhesion. Adjust parameters such as raft air gap, extra margin, and base layer thickness to optimize stability and ease of removal. For skirt setup, activate the skirt feature to create an outline around the model without contact, set the skirt line count and distance to the object, ensuring filament priming and bed temperature stability before printing.
Choosing the Right Option: Raft or Skirt
Selecting between a raft and skirt in 3D printing depends on the model's adhesion and surface quality requirements. A raft provides a thicker, more stable base for improved bed adhesion and minimization of warping for complex or detailed prints. A skirt, being a simple outline around the model, is ideal for priming the extruder and detecting bed level issues without using extra material.

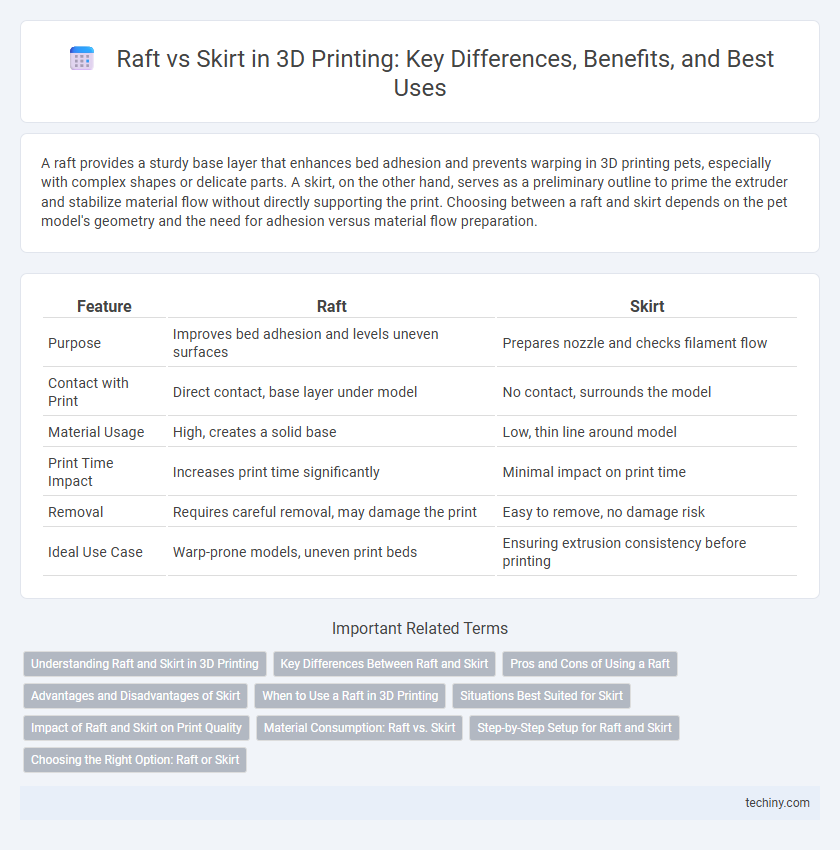

Raft vs Skirt Infographic
