techiny.com Curing in 3D printing involves hardening materials like resins through UV light or heat to achieve solid, durable pet parts with smooth finishes. Sintering, on the other hand, uses heat to fuse powdered materials without melting them, producing strong, dense components ideal for high-performance pet products. Choosing between curing and sintering depends on the desired material properties and application requirements in pet-related manufacturing.
Table of Comparison
| Process | Curing | Sintering |
|---|---|---|
| Definition | Hardening material using UV light or heat | Fusing powdered material using high heat below melting point |
| Materials | Photopolymer resins, thermosetting polymers | Metal powders, ceramic powders |
| Temperature | Low to moderate (ambient to ~150degC) | High (typically 1000degC - 1700degC) |
| Process Type | Polymerization | Particle bonding through diffusion |
| Application | Resin 3D printing (SLA, DLP) | Metal and ceramic 3D printing (binder jetting, MIM) |
| Speed | Fast curing time (seconds to minutes) | Long sintering cycles (hours) |
| Final Part | Solid polymer structure | Dense, strong metal or ceramic parts |
Understanding Curing and Sintering in 3D Printing
Curing in 3D printing involves the solidification of photopolymer resins through UV light exposure, creating a hardened and stable polymer structure critical for stereolithography (SLA) and digital light processing (DLP) techniques. Sintering, on the other hand, is a thermal process used primarily in powder bed fusion methods such as selective laser sintering (SLS), where powdered materials are fused at high temperatures below their melting points to form dense, solid parts. Understanding these processes highlights their distinct roles in achieving material strength and dimensional accuracy, with curing focused on resin solidification and sintering emphasizing particle bonding in metal and plastic powders.
Key Differences Between Curing and Sintering
Curing and sintering are distinct processes in 3D printing that enhance material properties through different mechanisms; curing uses ultraviolet light or heat to solidify photopolymers or resins, forming cross-linked polymer chains, while sintering involves heating powdered materials below their melting point to fuse particles into a dense, solid structure. Curing is typically applied in resin-based SLA or DLP 3D printing to achieve dimensional stability and surface finish, whereas sintering is common in metal and ceramic 3D printing technologies like SLS and binder jetting, producing high-strength functional parts. The temperature range, material phase changes, and resulting mechanical properties fundamentally differentiate curing, a chemical reaction process, from sintering, a thermal consolidation method.
The Science Behind Curing in 3D Printing
Curing in 3D printing involves the photopolymerization process where ultraviolet (UV) light triggers a chemical reaction to solidify liquid resin into a solid object, enhancing the mechanical properties and dimensional stability of printed parts. This process relies on photoinitiators within the resin that absorb UV photons to create reactive radicals, initiating polymer chain formation and cross-linking. Controlled curing parameters like light intensity, exposure time, and resin composition directly influence the polymerization kinetics, affecting the final strength, surface finish, and accuracy of the 3D printed models.
The Sintering Process: How It Works
The sintering process in 3D printing involves heating powdered materials just below their melting point until particles fuse together, resulting in a solid structure. This technique enhances the mechanical properties and density of printed objects by eliminating porosity and increasing material strength. Precise temperature control and uniform heat distribution are critical to achieving consistent sintering outcomes and high-quality finished parts.
Materials Best Suited for Curing and Sintering
Materials best suited for curing in 3D printing include photopolymers such as acrylates and epoxies, which solidify quickly under UV light to form detailed, high-resolution parts ideal for prototyping and small-batch production. Sintering processes excel with powdered materials like metal alloys (stainless steel, titanium) and ceramics, where high temperatures fuse particles to create dense, durable components suitable for aerospace, automotive, and medical applications. Selection between curing and sintering depends heavily on the desired material properties, part complexity, and end-use performance requirements.
3D Printing Technologies Utilizing Curing
3D printing technologies utilizing curing, such as stereolithography (SLA) and digital light processing (DLP), rely on photopolymerization to solidify liquid resins into precise, high-resolution parts. The curing process involves exposing photosensitive materials to specific wavelengths of light, triggering a polymer chain reaction that hardens the resin layer by layer. This technique offers advantages in producing detailed prototypes and complex geometries with smooth surface finishes compared to sintering methods.
3D Printing Technologies Utilizing Sintering
Sintering in 3D printing involves heating powdered materials just below their melting point to fuse particles into a solid structure, commonly used in technologies like Selective Laser Sintering (SLS) and Direct Metal Laser Sintering (DMLS). Unlike curing, which relies on photopolymerization to harden resins in processes such as stereolithography (SLA) or digital light processing (DLP), sintering enables the creation of metal or ceramic parts with high strength and durability. Sintering-based 3D printing is essential for producing complex geometries with superior mechanical properties in aerospace, automotive, and medical industries.
Advantages and Limitations of Curing
Curing in 3D printing offers rapid post-processing by using UV light or heat to harden photopolymer resins, enabling high-detail and smooth surface finishes ideal for prototyping and intricate designs. This process provides excellent dimensional accuracy and reduced material waste but is limited by the brittleness of cured parts and lower mechanical strength compared to sintered materials. Additionally, curing is typically restricted to photopolymer-based technologies, lacking the versatility of sintering, which can process metals and ceramics for functional, durable components.
Benefits and Challenges of Sintering
Sintering in 3D printing involves heating powdered materials below their melting point to fuse particles, resulting in high-density and mechanically robust parts ideal for metal and ceramic applications. The benefits of sintering include enhanced structural integrity, improved thermal and electrical properties, and the ability to produce complex geometries with fine details. Challenges include the need for precise temperature control, potential shrinkage and warping during the process, and longer post-processing times compared to curing methods.
Choosing Between Curing and Sintering for Your Project
Choosing between curing and sintering depends on the material and desired mechanical properties of the 3D printed object. Curing is ideal for photopolymer resins, utilizing UV light to harden the material with high precision and smooth surface finish. Sintering suits metal powders, where heat fuses particles to create strong, dense parts capable of withstanding structural applications.

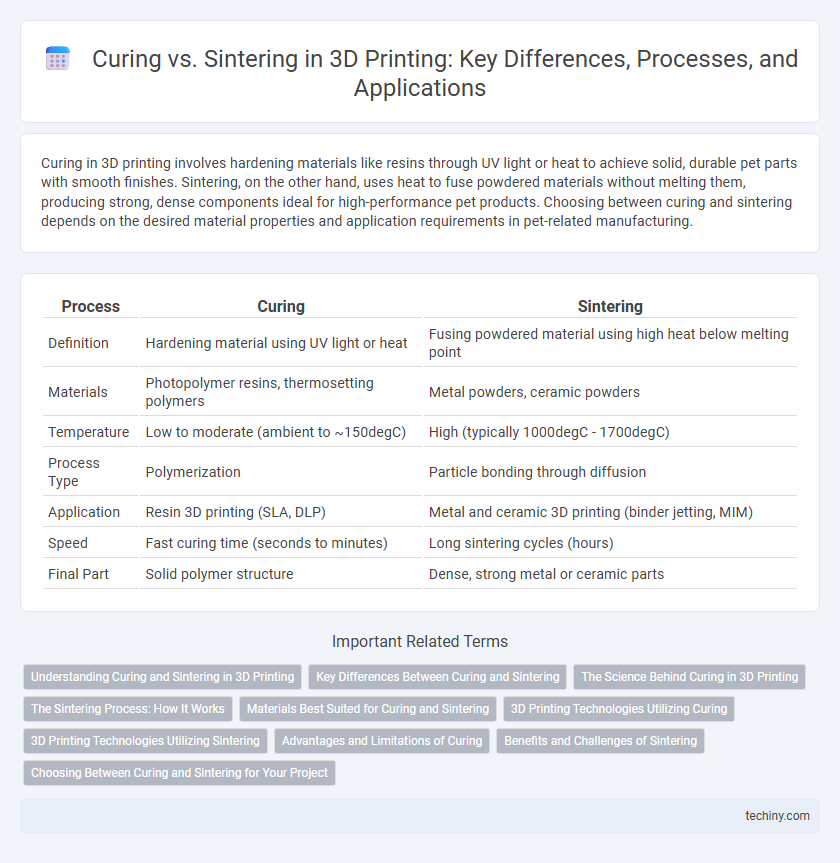

Curing vs Sintering Infographic
