techiny.com Rafts provide a sturdy base for 3D printing pets by creating a thick, detachable platform beneath the model, which improves adhesion and reduces warping, especially on uneven surfaces. Brims attach directly to the edges of the pet model, offering enhanced bed adhesion without using extra material underneath, making them ideal for delicate prints that require minimal cleanup. Choosing between a raft and a brim depends on the complexity and size of the pet model, as well as the printer's bed adhesive properties.
Table of Comparison
| Feature | Raft | Brim |
|---|---|---|
| Definition | A thick lattice base printed under the model to improve adhesion and leveling. | A single-layer outline attached around the model's base to increase bed adhesion. |
| Purpose | Prevents warping and improves first layer adhesion on uneven surfaces. | Reduces edge curling and enhances bed adhesion on flat surfaces. |
| Material Usage | Higher, due to multiple base layers. | Lower, uses less additional filament. |
| Print Time Impact | Increases total print time significantly. | Minimal increase in print time. |
| Removal | Requires careful detachment, can leave surface marks. | Easier to remove, usually clean edges. |
| Best Use Case | Complex models with uneven bottoms or poor adhesion. | Flat-bottomed models prone to slight warping or lifting. |
Introduction to 3D Printing Bed Adhesion
Raft and brim are essential techniques for improving bed adhesion in 3D printing by preventing warping and ensuring the first layer sticks firmly to the build platform. A raft creates a thick base layer beneath the model, providing strong support and stability, while a brim adds extra lines around the object's perimeter to increase surface contact without using as much material. Selecting between raft and brim depends on factors like model complexity, build surface type, and desired post-processing effort for optimal print quality.
What is a Raft in 3D Printing?
A raft in 3D printing is a horizontal lattice structure printed beneath the actual model to improve adhesion and prevent warping. It consists of multiple layers that create a stable foundation, ensuring better bed contact, especially on uneven or textured build plates. Rafts are particularly useful for prints with small footprints or complex geometries requiring enhanced stability during the initial printing stages.
Understanding Brim in 3D Printing
Brim in 3D printing refers to a layer of extruded filament surrounding the base of a printed object, enhancing bed adhesion and reducing warping during the initial printing phase. Unlike a raft, which creates a separate foundation beneath the entire object, a brim only extends outward from the perimeter, using less material and simplifying removal after printing. Understanding the application of a brim is crucial for improving print quality on models with small footprints or intricate details, especially when printing with materials prone to curling.
Key Differences Between Raft and Brim
Raft and brim are two essential 3D printing adhesion techniques that help improve print stability and bed adhesion. A raft is a thick, detachable base layer printed underneath the entire model, providing strong foundation and minimizing warping, especially for complex or large prints, while consuming more material and print time. In contrast, a brim is a thin, single-layer outline attached directly to the object's base, increasing edge adhesion without extra support and making it easier to remove with less material usage.
Pros and Cons of Using Raft
Using a raft in 3D printing provides enhanced bed adhesion and prevents warping by creating a solid foundation beneath the model, making it ideal for prints with small footprints or uneven surfaces. However, rafts increase material usage and print time, and can leave rough bottom surfaces that require post-processing to achieve a smooth finish. The removal process can be challenging, especially with complex geometries, potentially damaging delicate prints.
Advantages and Disadvantages of Brim
Brim in 3D printing enhances bed adhesion by adding a single-layer outline around the base of the print, reducing warping and improving stability for small or delicate objects. It uses less material and is easier to remove than a raft, making it efficient for models with limited contact points. However, brims may not provide as much support as rafts on uneven surfaces and can cause slight surface imperfections along the edges of the base.
When to Use Raft in Your Projects
Use a raft in 3D printing projects when adhesion to the build plate is challenging, such as with warped or uneven surfaces and materials prone to curling like ABS. Rafts provide a stable printed base that prevents warping and improves first-layer adhesion, essential for large or complex models. Choose rafts when you need extra support for intricate designs or when printing with flexible filaments that require enhanced stability.
Ideal Scenarios for Choosing Brim
Brim is ideal for improving bed adhesion on small or intricate 3D prints that have limited surface contact with the build plate, preventing warping and lift-off during printing. It is particularly effective for models with sharp corners or delicate edges where a raft might be excessive or wasteful. Choosing brim ensures easier removal while maintaining model stability and surface quality, especially with materials prone to curling like ABS or PETG.
Raft vs Brim: Surface Finish and Removal
Raft provides a stable base for 3D prints by creating a thick, detachable platform that improves adhesion but often results in a rougher surface finish on the model's bottom layer. Brim adds thin, single-layer outlines around the print's perimeter, enhancing bed adhesion while maintaining a smoother surface finish and easier removal compared to raft. Choosing between raft and brim depends on the trade-off between stability during printing and the desired quality and cleanliness of the model's base after removal.
Which One Should You Choose: Raft or Brim?
Raft provides a stable base by creating multiple layers beneath the print, ideal for objects with small footprints or uneven surfaces, ensuring better adhesion and reducing warping. Brim adds a single-layer outline around the base of the print to improve bed adhesion without using extra material or compromising surface finish, making it suitable for models with larger flat bottoms. Choose Raft for complex prints requiring strong foundational support, and Brim when minimizing post-processing effort and material use is a priority.

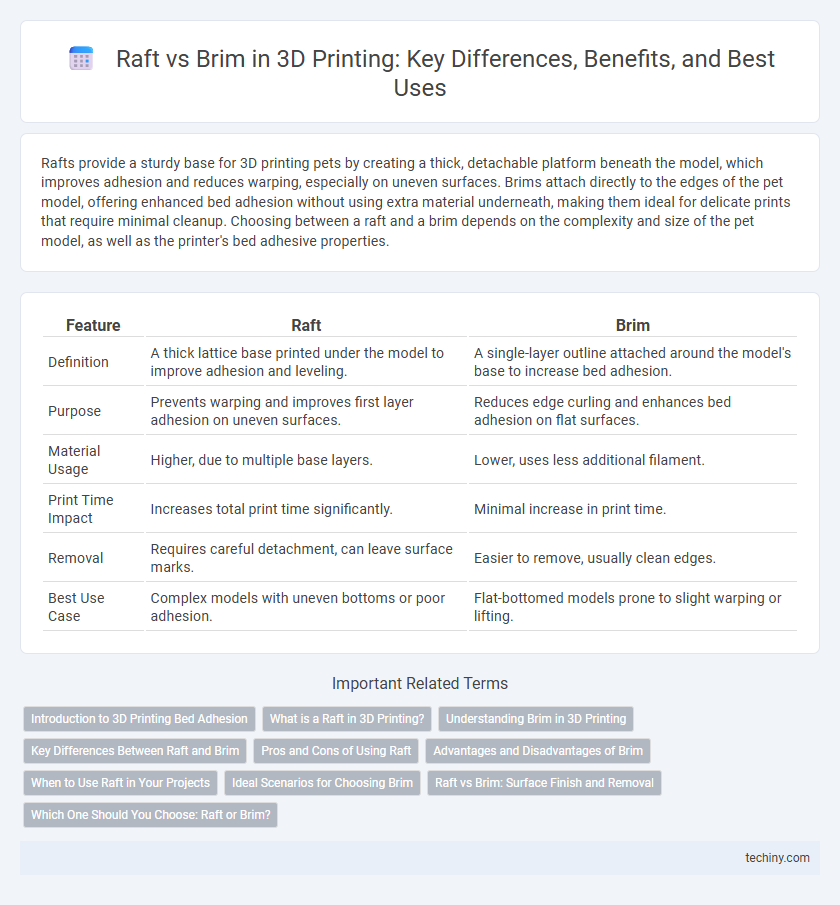

Raft vs Brim Infographic
