techiny.com In 3D printing pets, resolution determines the level of detail visible in the final model, affecting how accurately features like fur texture and facial expressions are represented. Tolerance refers to the printer's ability to replicate dimensions within acceptable limits, ensuring the pet's parts fit together seamlessly without gaps or misalignments. Balancing high resolution with precise tolerance is crucial for creating lifelike, durable 3D printed pet replicas.
Table of Comparison
| Aspect | Resolution | Tolerance |
|---|---|---|
| Definition | Minimum feature size a 3D printer can create. | Allowable deviation from target dimensions during printing. |
| Measurement | Layer height (microns), XY precision. | Dimensional accuracy (+- microns/mm). |
| Impact on Quality | Determines surface detail and smoothness. | Defines functional fit and assembly precision. |
| Typical Values | 25-300 microns layer height. | +-50-200 microns depending on technology. |
| Dependent Factors | Printer type, nozzle diameter, slicer settings. | Material properties, printer calibration, environment. |
| Example Technologies | SLA, DLP (high resolution), FDM (lower resolution). | SLA and PolyJet often have tighter tolerance than FDM. |
Understanding 3D Printing Resolution
3D printing resolution refers to the smallest feature size a printer can produce, often measured in microns and determining the level of detail in a printed object. Tolerance, on the other hand, defines the acceptable deviation from the intended dimensions, impacting the accuracy and fit of assembled parts. Understanding the distinction between resolution and tolerance is crucial for selecting the right 3D printer and materials to meet specific project requirements in prototyping and manufacturing.
What is Tolerance in 3D Printing?
Tolerance in 3D printing refers to the permissible limit of variation in the dimensions of a printed object compared to its intended design, reflecting the printer's precision and consistency. It determines how accurately the final product matches the digital model, accounting for factors like material shrinkage, layer height, and mechanical limitations of the printer. Understanding tolerance is critical for applications requiring tight fitting parts or functional prototypes where dimensional accuracy impacts performance.
Resolution vs Tolerance: Key Differences
Resolution in 3D printing refers to the smallest feature size a printer can produce, typically measured in microns, directly impacting the level of detail and surface finish. Tolerance defines the acceptable deviation from specified dimensions, indicating the printer's accuracy and ability to replicate exact measurements. Understanding the key differences between resolution and tolerance is crucial for optimizing print quality and ensuring parts meet functional and aesthetic requirements.
How Resolution Affects Print Quality
Resolution in 3D printing determines the smallest detail a printer can create, directly impacting the overall print quality and surface finish. Higher resolution settings yield finer layers, resulting in smoother and more accurate models with intricate details clearly visible. Tolerance refers to the printer's ability to maintain dimensional accuracy, but resolution primarily influences the visual precision and detail clarity of the printed object.
The Role of Tolerance in 3D Printed Parts
Tolerance plays a critical role in the quality and functionality of 3D printed parts by defining the allowable deviation from specified dimensions, ensuring parts fit and function as intended. Unlike resolution, which determines the smallest detail a printer can create, tolerance directly affects the consistency and interchangeability of components in assemblies. Maintaining tight tolerance control is essential for applications in aerospace and medical devices, where precision and reliability are paramount.
Factors Influencing Resolution and Tolerance
Resolution in 3D printing is influenced by factors such as nozzle diameter, layer height, and printer precision, determining the smallest detail the printer can produce. Tolerance depends on material properties, printing method, and post-processing steps, affecting the dimensional accuracy and fit of the final part. Environmental conditions and machine calibration also play crucial roles in maintaining consistent resolution and tolerance levels.
Practical Applications: When to Prioritize Resolution or Tolerance
In practical 3D printing applications, prioritize resolution when creating intricate models requiring fine surface details, such as jewelry or dental molds, to capture subtle features accurately. Emphasize tolerance when producing mechanical parts with assembly requirements, like gears or connectors, where dimensional precision ensures proper fit and function. Balancing resolution and tolerance depends on the end-use, with high resolution critical for aesthetics and high tolerance essential for functional mechanical components.
Common Misconceptions About Resolution and Tolerance
Resolution in 3D printing refers to the smallest feature size a printer can physically produce, while tolerance indicates the acceptable deviation from a specified dimension during the manufacturing process. A common misconception is that higher resolution automatically guarantees better tolerance, but they measure different aspects of print quality and precision. Understanding that resolution affects detail fidelity and tolerance impacts dimensional accuracy helps optimize print settings for specific application requirements.
Optimizing Designs for Best Resolution and Tolerance
Maximizing 3D printing resolution requires fine-tuning layer height and nozzle diameter to produce intricate details, while achieving optimal tolerance depends on calibrating printer accuracy and material behavior. Designing with consistent wall thicknesses and minimizing overhangs enhances dimensional precision and reduces warping, ensuring parts meet exact specifications. Selecting compatible materials and adjusting print speed further refines resolution and tolerance, delivering high-quality, functional prototypes and end-use components.
Future Trends: Advances in Resolution and Tolerance Technologies
Emerging 3D printing technologies are pushing the boundaries of resolution, achieving layer heights below 10 microns for ultra-fine detail in microfabrication and biomedical applications. Innovations in adaptive control systems and real-time monitoring are enhancing tolerance precision to within micrometer ranges, reducing defects and improving part consistency. Future trends indicate integration of AI-driven optimization and multi-material printing will further refine resolution and tolerance, enabling complex geometries with unprecedented accuracy.

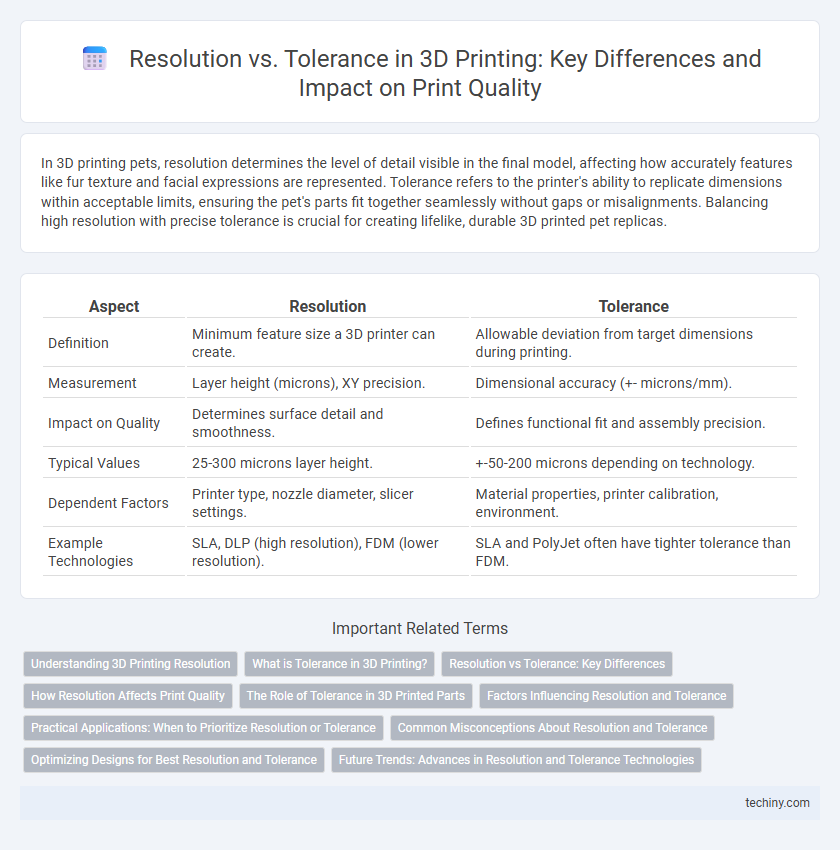

Resolution vs Tolerance Infographic
