techiny.com Passthrough AR uses external cameras to capture the real world and display it on a screen with digital overlays, offering a fully immersive experience with high-quality visuals but potential latency issues. Optical See-through AR allows users to see the real environment directly through transparent lenses while digital images are projected onto the lenses, providing natural depth perception and real-time interaction without screen lag. Each approach balances immersion and natural vision differently, making them suitable for distinct applications in augmented reality environments.
Table of Comparison
| Feature | Passthrough AR | Optical See-through AR |
|---|---|---|
| Display Method | Camera feed of real world displayed on screen | Transparent lenses overlay digital content onto real world |
| Image Quality | Dependent on camera resolution; can introduce latency | High clarity; real-world view is direct and unaltered |
| Latency | Typically higher due to video processing | Minimal latency; real-time view |
| Field of View (FOV) | Limited by camera and display screen size | Wider, depends on lens design |
| Brightness & Light Conditions | Can adjust brightness of camera feed | Subject to environmental lighting; no override |
| Use Cases | High immersion, full visual control, VR-like experiences | Situational awareness, industrial & medical applications |
| Hardware Complexity | Requires cameras, displays, GPUs | Complex optics, waveguides, transparent displays |
| Examples | Meta Quest Pro, Varjo XR-3 | Microsoft HoloLens 2, Magic Leap 2 |
Introduction to Augmented Reality: Passthrough vs Optical See-through
Passthrough Augmented Reality uses external cameras to capture and display the real world on digital displays, allowing for high-quality visuals but often with slight latency. Optical See-through AR employs transparent lenses that overlay digital content onto the real environment, providing a direct, real-time view without video processing delay. Each technology offers unique advantages in AR applications, balancing immersion, visual fidelity, and situational awareness.
Defining Passthrough AR: How It Works
Passthrough AR uses external cameras on a headset to capture real-world environments, then displays this video feed on internal screens combined with digital overlays, enabling seamless interaction between virtual and physical elements. Unlike optical see-through, which relies on transparent lenses to merge digital content, passthrough AR provides a fully digital view of the surroundings, allowing for enhanced visual clarity and environmental awareness. This technology facilitates more immersive and precise augmented experiences by delivering real-time video augmented with interactive graphics.
Understanding Optical See-through AR Technology
Optical See-through AR technology overlays digital content directly onto the user's view of the real world using transparent displays, enabling seamless interaction with both virtual and physical environments. Unlike Passthrough AR, which relies on external cameras to capture and render the surroundings, Optical See-through systems maintain real-time, unmediated vision, enhancing spatial awareness and reducing latency. Key components include waveguide displays and advanced eye-tracking sensors that ensure precise alignment of digital imagery with the physical environment.
Key Differences Between Passthrough and Optical See-through AR
Passthrough AR captures the real environment using external cameras and displays it digitally with augmented elements, offering full control over visuals but potential latency and lower resolution. Optical see-through AR uses transparent displays to overlay digital content directly onto the user's view, providing real-time, high-fidelity visuals with minimal lag but limited control over lighting and occlusion. Key differences include image quality, latency, and the method of blending virtual objects with the physical world.
Visual Quality Comparison: Clarity, Color, and Brightness
Passthrough AR offers higher visual clarity and color accuracy by using high-resolution external cameras to display a real-world view with augmented overlays, resulting in vibrant colors and bright images. Optical see-through AR relies on transparent displays, which often suffer from reduced brightness and color fidelity due to light attenuation and reflection, causing less vivid visuals. The trade-off between Passthrough AR's enhanced image quality and Optical see-through's natural view impacts user experience in applications requiring precise color and brightness reproduction.
Device Examples: Leading Passthrough and Optical See-through AR Headsets
Leading passthrough AR headsets like the Meta Quest Pro and HTC Vive Flow utilize external cameras to capture and display the real environment, providing a high-fidelity virtual overlay with enhanced depth perception. In contrast, optical see-through AR devices such as Microsoft HoloLens 2 and Magic Leap 2 employ transparent waveguide displays to blend holographic images directly into the user's natural field of view, ensuring real-time interaction without latency or video processing delays. Passthrough AR excels in immersive experiences with full environmental capture, while optical see-through AR prioritizes spatial awareness and natural light transmission.
User Experience and Applications in Real-world Scenarios
Passthrough AR leverages external cameras to overlay digital content onto a real-world video feed, offering immersive visuals suited for intricate tasks like industrial training and remote assistance, while Optical See-through AR uses transparent displays to blend virtual objects directly into the user's natural view, enhancing situational awareness in applications such as navigation and medical procedures. User experience in Passthrough AR can sometimes suffer from latency and lower resolution compared to Optical See-through AR, which provides real-time, high-fidelity visuals but with limited field of view and brightness under strong ambient light conditions. Real-world applications favor Passthrough AR for environments requiring detailed interaction and portability, whereas Optical See-through AR excels in scenarios demanding seamless integration and continuous awareness of physical surroundings.
Safety and Comfort: Evaluating Both Approaches
Passthrough AR uses external cameras to capture the real environment, offering enhanced safety by providing a fully digital overlay that can be customized for better situational awareness and obstacle detection. Optical see-through AR relies on transparent displays, maintaining direct view of the physical world, which reduces latency and eye strain but may compromise visibility in low-light conditions. Evaluating both reveals that passthrough AR excels in environmental control and hazard detection, while optical see-through ensures comfort through natural vision integration, making safety and comfort trade-offs critical for application-specific use.
Future Trends in Passthrough and Optical See-through Development
Future trends in Passthrough AR include enhanced camera resolution and real-time depth sensing, enabling more immersive and realistic mixed reality experiences. Optical See-through AR development focuses on improving waveguide displays and light field technology to achieve higher transparency and wider field of view with minimal latency. Both technologies are converging towards hybrid solutions that combine the benefits of digital overlay and natural vision for seamless augmented interactions.
Choosing the Right AR Solution: Factors to Consider
Choosing between Passthrough AR and Optical See-through depends on factors such as image quality, latency, and environmental awareness. Passthrough AR offers full environmental immersion with higher visual fidelity by using cameras to capture the real world, while Optical See-through provides a direct view of the surroundings with minimal latency but limited imagery integration. Evaluating application needs, user comfort, and hardware capabilities is essential for selecting the optimal AR solution.

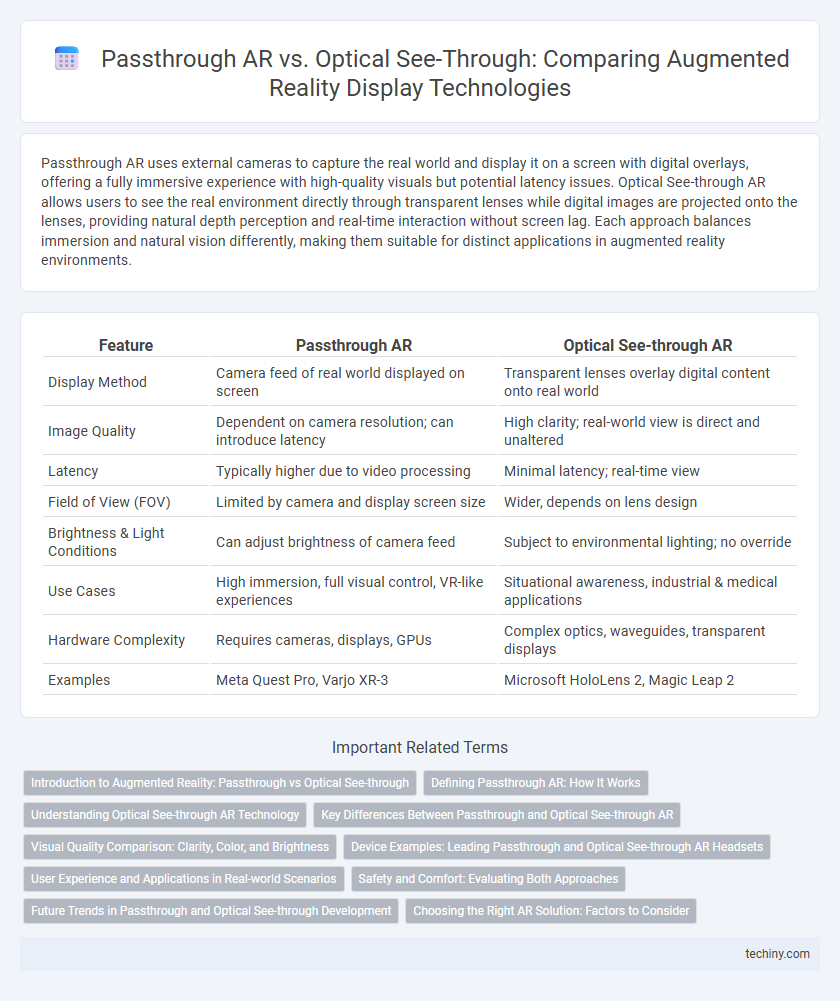

Passthrough AR vs Optical See-through Infographic
