techiny.com Proximity sensors detect objects without physical contact by sensing changes in the electromagnetic field or capacitance, making them ideal for applications requiring short-range object detection. Photoelectric sensors use a light beam, detecting objects when the beam is interrupted or reflected, suitable for longer distances and transparent objects. Choosing between proximity and photoelectric sensors depends on factors like detection range, object material, and environmental conditions.
Table of Comparison
| Feature | Proximity Sensor | Photoelectric Sensor |
|---|---|---|
| Sensing Principle | Detects metallic objects through electromagnetic fields | Detects objects using light beams (infrared, visible, or laser) |
| Object Types | Metal only | Any material (metal, plastic, glass, etc.) |
| Sensing Range | Short (typically a few mm to cm) | Longer (up to several meters) |
| Environmental Sensitivity | Resistant to dirt, dust, and moisture | Sensitive to dirt, dust, fog, and ambient light |
| Output Type | Switching output on object proximity | Switching output on light interruption or reflection |
| Applications | Metal detection in manufacturing, position sensing | Object counting, presence detection, distance measurement |
| Cost | Generally lower | Generally higher |
| Installation | Easy, no alignment required | Requires precise alignment (emitter and receiver) |
Introduction to Proximity and Photoelectric Sensors
Proximity sensors detect the presence or absence of objects by sensing changes in an electromagnetic field or capacitance without physical contact, making them ideal for metal detection and close-range object identification in automation. Photoelectric sensors use a light beam, typically infrared or visible, to detect objects by measuring the interruption or reflection of the light, offering longer detection ranges and suitability for transparent or shiny surfaces. Both sensor types serve critical roles in industrial automation by enhancing machine safety, accuracy, and efficiency through non-contact object detection.
Working Principles: Proximity vs Photoelectric Sensors
Proximity sensors operate by detecting the presence of nearby objects through electromagnetic fields or capacitance changes, enabling non-contact sensing of metallic or non-metallic items. Photoelectric sensors use a light beam, typically infrared or visible, to detect objects by emitting and receiving light, triggering a signal when the light path is interrupted or reflected. These fundamental working principles distinguish proximity sensors, ideal for detecting conductive materials, from photoelectric sensors, which excel in identifying transparent or small objects at varying distances.
Key Applications in Industrial Automation
Proximity sensors are extensively utilized in industrial automation for detecting the presence or absence of metal objects in manufacturing lines, enabling precise positioning and conveyor control. Photoelectric sensors excel in applications requiring non-contact detection of transparent or opaque materials, such as packaging verification and product counting on assembly belts. Both sensor types enhance automation efficiency by providing reliable object detection tailored to diverse environmental and material conditions.
Detection Range and Accuracy Comparison
Proximity sensors typically offer shorter detection ranges, usually up to a few centimeters, but provide high accuracy for detecting metal objects and precise positioning. Photoelectric sensors can detect objects at much longer distances, often several meters, with varying accuracy depending on the sensor type (through-beam, retro-reflective, or diffuse) and environmental conditions such as dust or lighting. For applications requiring extended detection range and versatility, photoelectric sensors are preferred, while proximity sensors excel in scenarios demanding reliable close-range metal detection.
Environmental Factors Affecting Sensor Performance
Proximity sensors and photoelectric sensors experience varying performance based on environmental factors such as temperature, humidity, and presence of dust or contaminants. Proximity sensors, often relying on electromagnetic fields, are generally less affected by lighting conditions but can face interference in metal-rich or high-moisture environments. Photoelectric sensors are highly sensitive to ambient light variations and dust accumulation, which can reduce detection accuracy and require regular maintenance for optimal operation.
Installation and Maintenance Differences
Proximity sensors require minimal installation space and are typically mounted flush with the surface, offering easy integration into compact setups, while photoelectric sensors need clear line-of-sight and proper alignment to function effectively, which can complicate installation in tight or cluttered environments. Maintenance for proximity sensors is generally low since they are less affected by dirt or environmental factors, whereas photoelectric sensors demand regular cleaning and calibration to ensure their optical components remain unobstructed and accurately aligned. Understanding these differences helps optimize sensor choice based on the operational environment and maintenance capabilities.
Cost Analysis: Proximity vs Photoelectric Sensors
Proximity sensors generally offer a lower initial cost and reduced maintenance expenses compared to photoelectric sensors, making them a cost-effective choice for detecting metal objects or presence in simple automation tasks. Photoelectric sensors, while typically more expensive upfront, provide greater versatility and longer sensing distances, which can result in cost savings in complex applications requiring precise detection or non-metallic object sensing. Total cost of ownership for either sensor type depends on the specific application requirements, environmental conditions, and necessary detection accuracy.
Integration with Automation Systems
Proximity sensors integrate seamlessly with automation systems through simple wiring and signal output options such as NPN, PNP, or analog signals, making them ideal for detecting metallic objects in harsh environments. Photoelectric sensors offer versatile communication protocols including IO-Link and Ethernet/IP, enabling advanced data exchange and remote diagnostics within Industry 4.0 frameworks. Both sensor types support programmable logic controllers (PLCs) and industrial networks, enhancing precise control and real-time monitoring in automated manufacturing processes.
Advantages and Limitations of Each Sensor Type
Proximity sensors offer reliable detection of metal objects without contact, excelling in harsh environments due to their durability and resistance to dirt and moisture; however, they are limited to sensing metallic materials and have a relatively short sensing range. Photoelectric sensors provide versatile detection of various materials, including transparent objects, with longer sensing distances and fast response times, but their performance can be affected by ambient light interference and dirt accumulation on the sensor lens. Selecting between proximity and photoelectric sensors depends on application requirements such as target material, sensing distance, environmental conditions, and installation constraints.
Choosing the Right Sensor for Your Automation Needs
Proximity sensors detect objects through electromagnetic fields or capacitive coupling, making them ideal for metal detection and close-range applications in automation. Photoelectric sensors use light beams to detect objects at various distances and are preferred for transparent or irregularly shaped items. Selecting the right sensor depends on factors like target material, sensing distance, environmental conditions, and desired response time to ensure precise and reliable automation performance.

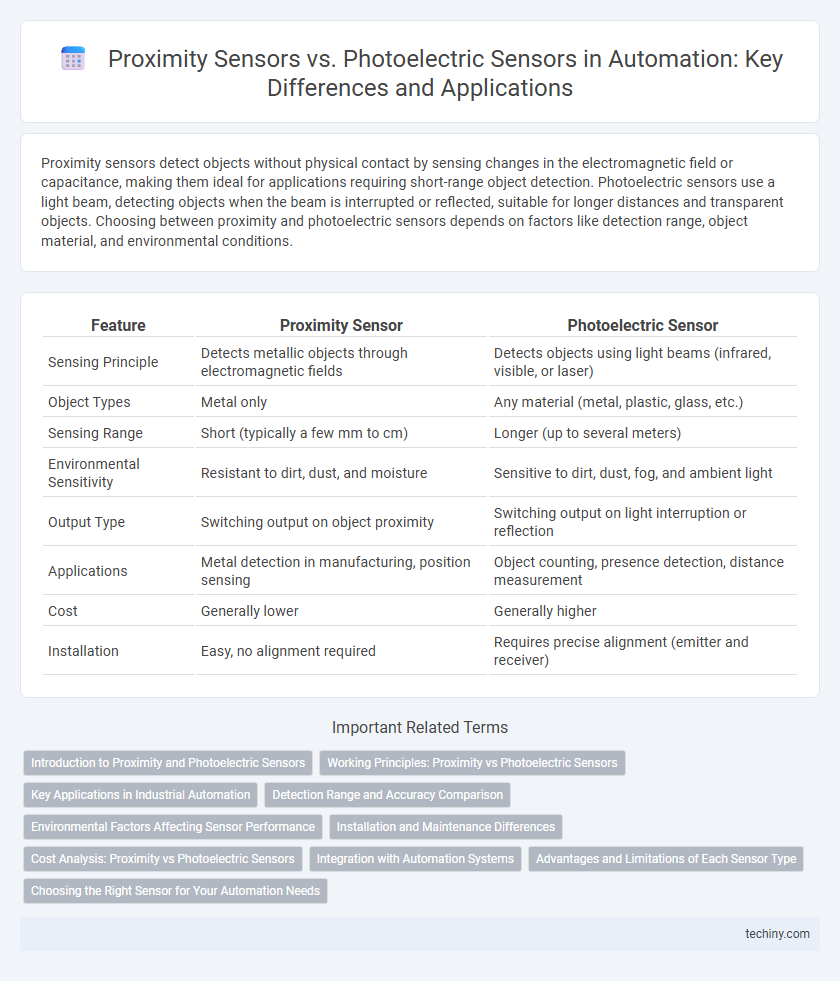

Proximity Sensor vs Photoelectric Sensor Infographic
