techiny.com Narrowband IoT (NB-IoT) offers deep indoor coverage and low power consumption, making it ideal for static, low-bandwidth applications such as smart meters and environmental sensors. LTE-M supports higher data rates and mobility, enabling use cases like asset tracking and wearables that require real-time communication. Both technologies complement each other by addressing different IoT connectivity needs within cellular networks.
Table of Comparison
| Feature | Narrowband IoT (NB-IoT) | LTE-M (LTE Cat-M1) |
|---|---|---|
| Frequency Band | Licensed spectrum, narrowband 180 kHz | Licensed spectrum, 1.4 MHz bandwidth |
| Data Rate | Up to 250 kbps | Up to 1 Mbps |
| Latency | High latency (~1.6 to 10 seconds) | Low latency (10 to 15 ms) |
| Power Consumption | Very low power, optimized for long battery life | Low power, slightly higher than NB-IoT |
| Mobility Support | Limited, primarily stationary devices | Full mobility support |
| Voice Support | No voice support | Supports VoLTE (Voice over LTE) |
| Coverage | Better indoor and deep coverage (-20 dB link budget) | Good coverage, but less than NB-IoT |
| Deployment Complexity | Simple, works with existing LTE infrastructure | More complex, requires LTE network enhancements |
| Use Cases | Smart meters, environmental monitoring, asset tracking | Wearables, connected vehicles, real-time monitoring |
Narrowband IoT vs LTE-M: Key Differences
Narrowband IoT (NB-IoT) and LTE-M are both cellular technologies designed for IoT applications but differ significantly in coverage and power consumption. NB-IoT provides extended indoor coverage and ultra-low power consumption, ideal for devices requiring long battery life and low data rates. LTE-M offers higher data throughput, lower latency, and supports mobility, making it suitable for real-time applications and mobile IoT devices.
Network Architecture Comparison
Narrowband IoT (NB-IoT) employs a simplified cellular network architecture optimized for low power, extended coverage, and massive device connectivity, operating within existing LTE bands with minimal impact on network infrastructure. LTE-M utilizes a more complex network design supporting higher data rates, mobility, and voice over LTE (VoLTE) capabilities, integrating smoothly with standard LTE networks. Both technologies leverage the evolved packet core (EPC), but NB-IoT prioritizes energy efficiency and deep indoor penetration, whereas LTE-M emphasizes enhanced throughput and latency performance for IoT applications.
Coverage Capabilities and Range
Narrowband IoT (NB-IoT) offers superior indoor and underground coverage with a maximum coupling loss of up to 164 dB, making it ideal for deep coverage scenarios such as smart metering in basements. LTE-M provides faster data rates and lower latency but has a slightly reduced coverage range, with a maximum coupling loss around 155 dB, suitable for mobile IoT applications like asset tracking. The extended range and enhanced link budget of NB-IoT enable more reliable connectivity in challenging environments compared to LTE-M.
Power Efficiency and Battery Life
Narrowband IoT (NB-IoT) offers superior power efficiency through extended discontinuous reception (eDRX) and power saving mode (PSM), enabling battery life up to 10 years for low data rate applications. LTE-M supports higher data throughput and mobility but consumes more power, typically resulting in a shorter battery lifespan of 5 to 7 years. The choice between NB-IoT and LTE-M depends on specific use cases prioritizing either longer battery life or enhanced communication capabilities.
Data Rate and Bandwidth Considerations
Narrowband IoT (NB-IoT) operates with a bandwidth of 180 kHz and supports data rates up to 250 kbps, making it ideal for low-throughput applications requiring long battery life. LTE-M, or LTE Cat-M1, utilizes a wider bandwidth of 1.4 MHz and offers higher data rates up to 1 Mbps, suitable for use cases demanding real-time communication and mobility support. The choice between NB-IoT and LTE-M depends on specific requirements for data rate, bandwidth efficiency, and power consumption in IoT deployments.
Device and Module Compatibility
Narrowband IoT (NB-IoT) supports a wide range of low-power, low-cost devices optimized for deep indoor coverage and long battery life, making it ideal for simple sensor applications. LTE-M offers broader device compatibility, including support for higher data rates and mobility, enabling use in more complex IoT applications such as wearables and asset tracking. Both technologies maintain strong module compatibility within existing LTE networks, facilitating seamless deployment across various IoT ecosystems.
Application Suitability: Use Case Scenarios
Narrowband IoT (NB-IoT) excels in static, low-bandwidth applications like smart metering and environmental monitoring due to its deep indoor coverage and low power consumption. LTE-M supports more complex use cases requiring higher data rates and mobility, such as asset tracking, wearables, and real-time health monitoring. Both technologies complement each other, with NB-IoT optimized for massive deployments with occasional data transmission, while LTE-M suits applications demanding voice, lower latency, and broader bandwidth.
Deployment Costs and ROI
Narrowband IoT (NB-IoT) offers lower deployment costs due to its simpler infrastructure and lower power consumption, making it ideal for large-scale sensor networks with long battery life. LTE-M, while presenting higher initial investment, delivers faster data rates and mobility support, which can enhance ROI in applications requiring real-time tracking and more frequent data transmissions. Choosing between NB-IoT and LTE-M depends on balancing upfront deployment expenses against long-term operational benefits tailored to specific use cases.
Global Adoption and Ecosystem Support
Narrowband IoT (NB-IoT) boasts extensive global adoption, supported by major carriers across Europe, Asia, and the Middle East, favoring low-power, wide-area applications such as smart metering and environmental monitoring. LTE-M, with its broader bandwidth and enhanced mobility, enjoys robust ecosystem support in North America and parts of Asia, enabling use cases like asset tracking and wearables requiring higher data rates and voice capabilities. Both technologies benefit from 3GPP standardization, accelerating integration into diverse IoT platforms and fostering interoperability within the expanding 5G ecosystem.
Future Trends: NB-IoT and LTE-M Evolution
Narrowband IoT (NB-IoT) and LTE-M are poised to evolve with enhanced energy efficiency, extended coverage, and support for massive device connectivity, driving widespread adoption in smart cities, agriculture, and industrial IoT. Future advancements will leverage 5G integration, enabling ultra-reliable low-latency communication (URLLC) and improved network slicing for tailored IoT applications. Continuous standardization efforts by 3GPP aim to optimize NB-IoT and LTE-M coexistence within the evolving cellular ecosystem, ensuring scalability and seamless interoperability.

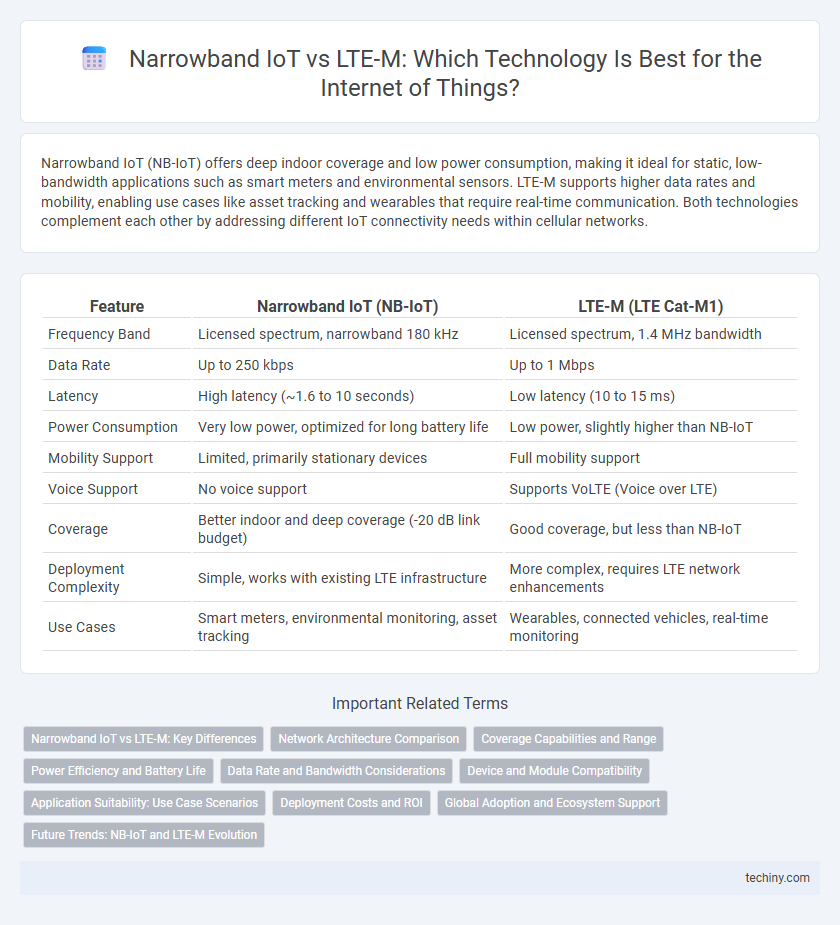

Narrowband IoT vs LTE-M Infographic
