techiny.com NB-IoT offers enhanced coverage and lower power consumption, making it ideal for devices requiring long battery life and deep indoor penetration. LTE-M supports higher data rates and mobility, suitable for applications needing real-time communication and voice support. Both technologies complement each other in the IoT ecosystem, providing tailored connectivity options for diverse use cases.
Table of Comparison
| Feature | NB-IoT | LTE-M |
|---|---|---|
| Coverage | Deep indoor, extended range | Good indoor, wide area |
| Data Rate | Up to 250 kbps | Up to 1 Mbps |
| Bandwidth | 180 kHz | 1.4 MHz |
| Power Consumption | Very low, optimized for long battery life | Low, supports mobility |
| Mobility | Limited, static devices | Supports device mobility and handover |
| Latency | High (up to 10 seconds) | Lower (1-2 seconds) |
| Use Cases | Smart metering, environmental monitoring | Asset tracking, wearables, smart city |
| Standard | 3GPP Release 13/14 | 3GPP Release 13/14 |
Introduction to NB-IoT and LTE-M
NB-IoT (Narrowband IoT) and LTE-M (LTE Cat-M1) are low-power wide-area network (LPWAN) technologies designed for IoT applications requiring extended coverage and long battery life. NB-IoT offers improved indoor penetration and low data rates, ideal for static sensors, while LTE-M supports higher data throughput and mobility for applications like asset tracking. Both technologies operate on licensed LTE spectrum, ensuring secure and reliable connectivity for smart city, industrial, and agricultural IoT deployments.
Key Differences Between NB-IoT and LTE-M
NB-IoT offers superior indoor coverage with deep penetration and supports massive device connections, making it ideal for static, low-bandwidth applications like smart meters. LTE-M provides higher data rates, lower latency, and seamless mobility support, which benefits applications requiring real-time communication such as asset tracking and wearables. Both standards operate on licensed spectrum but differ in power consumption, coverage, and cellular coexistence, influencing their suitability for various Internet of Things deployments.
Network Architecture Comparison
NB-IoT employs a simpler, standalone network architecture optimized for low-bandwidth, low-power devices, operating primarily within existing LTE spectrum bands without requiring extensive hardware upgrades. LTE-M leverages a more complex, fully integrated LTE network architecture supporting higher data rates, mobility, and voice capabilities, allowing seamless handover and better coverage for mobile IoT applications. The network architecture distinctions between NB-IoT and LTE-M directly influence deployment complexity, power consumption, and suitability for specific Internet of Things use cases such as asset tracking or smart metering.
Coverage and Range Capabilities
NB-IoT offers superior coverage with a deep indoor penetration of up to 20 dB better than LTE-M, making it ideal for challenging environments like basements and underground locations. LTE-M supports higher data rates but with slightly less extended range, typically covering up to 10 km in rural areas compared to NB-IoT's 15 km maximum. Both technologies operate on licensed spectrum but NB-IoT's optimized bandwidth and power consumption enable better long-range and low-power connectivity suited for extensive IoT deployments.
Data Rate and Bandwidth Efficiency
NB-IoT supports data rates up to 250 kbps with narrow bandwidth usage of 180 kHz, making it highly bandwidth-efficient for low-throughput applications. LTE-M delivers higher data rates up to 1 Mbps by utilizing a wider bandwidth of 1.4 MHz, enabling better performance for moderate throughput and latency-sensitive IoT use cases. The choice between NB-IoT and LTE-M depends on balancing the need for bandwidth efficiency against data rate requirements in IoT deployments.
Power Consumption and Battery Life
NB-IoT offers significantly lower power consumption than LTE-M, enabling devices to achieve battery life of up to 10 years in low-data-rate applications. LTE-M supports higher data rates and mobility but consumes more power, resulting in shorter battery longevity typically around 5 to 7 years. Effective power management in NB-IoT makes it ideal for ultra-low-power IoT deployments such as smart metering and environmental monitoring.
Device Cost and Deployment Complexity
NB-IoT devices generally feature lower cost due to simplified hardware and reduced power requirements, making them ideal for massive deployments with limited data transmission needs. LTE-M devices, while slightly more expensive, support higher data rates and mobility, which can increase both device cost and deployment complexity. Deployment of NB-IoT often leverages existing LTE infrastructure with minimal modifications, whereas LTE-M may require more advanced network configurations to support voice and real-time applications.
Use Cases for NB-IoT vs. LTE-M
NB-IoT is ideal for applications requiring low power consumption, extended coverage, and infrequent data transmission, such as smart metering, environmental monitoring, and asset tracking. LTE-M supports higher data rates and mobility, making it suitable for use cases like wearables, fleet management, and real-time health monitoring. Both technologies complement each other by addressing different IoT connectivity needs based on data volume, latency, and device complexity.
Security Features of NB-IoT and LTE-M
NB-IoT and LTE-M both offer robust security features essential for IoT deployments, with LTE-M supporting advanced encryption standards and integrity protection based on LTE security architecture. NB-IoT provides strong mutual authentication and data confidentiality through EPS (Evolved Packet System) security protocols, optimized for low power consumption. While LTE-M enables enhanced security through support for voice and mobility, NB-IoT focuses on secure, energy-efficient communication in static or low-mobility IoT applications.
Future Trends and Industry Adoption
NB-IoT and LTE-M are rapidly shaping future trends in the Internet of Things by enabling widespread deployment of low-power, wide-area networks (LPWAN). Industry adoption is accelerating as sectors like smart cities, healthcare, and logistics leverage NB-IoT's extended coverage and LTE-M's higher data rates for scalable IoT solutions. Market forecasts predict NB-IoT will dominate in fixed, stationary use cases, while LTE-M gains traction in mobile and real-time applications, driving diversified growth across global IoT ecosystems.

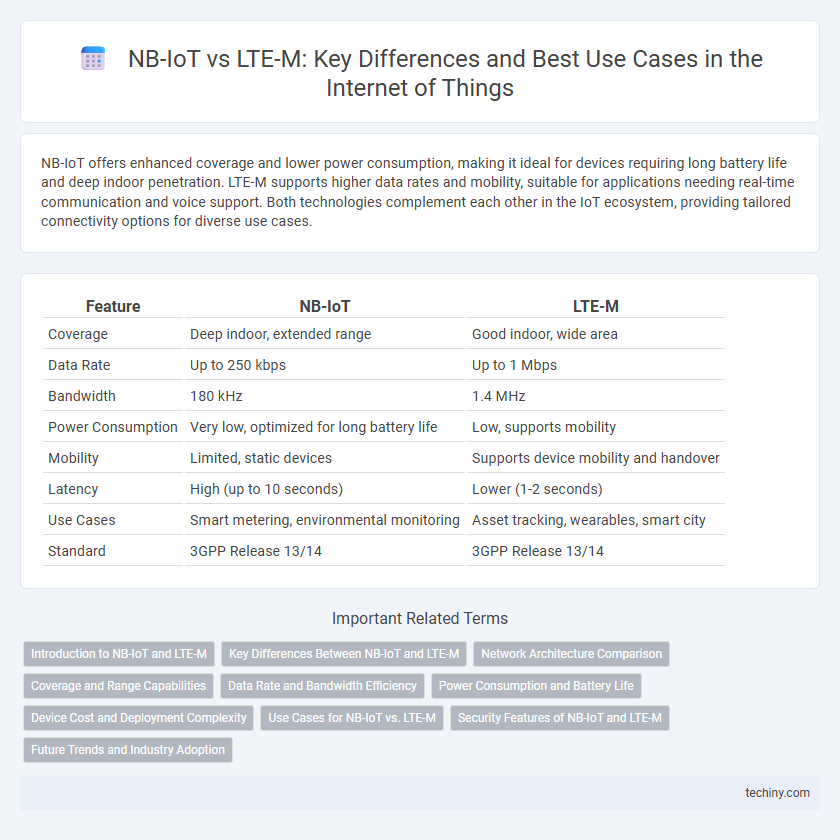

NB-IoT vs LTE-M Infographic
