techiny.com Time-Sensitive Networking (TSN) enhances standard Ethernet by providing deterministic data delivery with precise timing and low latency, crucial for real-time Internet of Things (IoT) applications. Deterministic Ethernet, a broader concept, ensures predictable network behavior by controlling delays and jitter but may lack the granular timing guarantees offered by TSN. TSN's advanced scheduling and traffic shaping mechanisms make it more suitable for mission-critical IoT systems requiring synchronized communication.
Table of Comparison
| Feature | Time-Sensitive Networking (TSN) | Deterministic Ethernet |
|---|---|---|
| Definition | Set of IEEE standards enhancing Ethernet for real-time, low-latency communication in IoT networks. | Ethernet variant ensuring predictable, low-latency packet delivery via hardware and software mechanisms. |
| Latency | Ultra-low and bounded latency using traffic scheduling and time synchronization. | Low and guaranteed latency with priority queuing and collision avoidance. |
| Synchronization | Robust IEEE 802.1AS time synchronization protocol. | May use proprietary or standard synchronization techniques. |
| Standards | IEEE 802.1 TSN Group (802.1Qbv, 802.1Qbu, 802.1AS, etc.). | Vendor-specific or industry-defined extensions on standard Ethernet. |
| Application | Critical IoT applications: industrial automation, automotive, robotics. | Industrial IoT applications needing deterministic communication but with simpler integration. |
| Traffic Management | Time-aware shapers, frame preemption, and stream reservation protocols. | Priority queuing and traffic policing mechanisms. |
| Scalability | Scales well for large IoT networks with mixed traffic types. | Optimized for smaller, controlled network environments. |
| Compatibility | Backwards compatible with standard Ethernet devices. | May require specialized hardware and software for full determinism. |
Introduction to TSN and Deterministic Ethernet
Time-Sensitive Networking (TSN) is a set of IEEE 802.1 standards designed to provide deterministic data delivery over Ethernet by enabling precise time synchronization and traffic scheduling. Deterministic Ethernet refers to Ethernet networking technologies that guarantee bounded latency and low jitter, essential for real-time applications in Industrial IoT environments. TSN expands on traditional deterministic Ethernet by introducing advanced features such as time synchronization (IEEE 802.1AS) and traffic shaping (IEEE 802.1Qbv) to ensure reliable, time-critical communication.
Core Principles of Time-Sensitive Networking
Time-Sensitive Networking (TSN) ensures deterministic data transmission through precise synchronization and traffic scheduling mechanisms, enabling low latency and minimal jitter in Industrial Internet of Things (IIoT) environments. TSN leverages standards like IEEE 802.1AS for time synchronization and IEEE 802.1Qbv for time-aware shaping, providing guaranteed bandwidth and bounded latency. Unlike traditional Deterministic Ethernet, TSN integrates multiple standards to create a unified framework for real-time communication across heterogeneous IoT devices.
Fundamentals of Deterministic Ethernet in IoT
Deterministic Ethernet in IoT ensures predictable network performance by providing guaranteed data delivery times, critical for time-sensitive applications such as industrial automation and smart grid systems. It achieves low latency and minimal jitter through mechanisms like time synchronization, traffic scheduling, and reserved bandwidth, enabling reliable real-time communication across connected devices. This deterministic approach enhances the robustness and efficiency of IoT networks by reducing packet loss and ensuring synchronized operations in complex environments.
Key Differences Between TSN and Deterministic Ethernet
Time-Sensitive Networking (TSN) is an enhancement of traditional Ethernet providing precise time synchronization and low-latency data transmission critical for real-time IoT applications. Deterministic Ethernet refers to Ethernet standards ensuring predictable communication latency but lacks the comprehensive suite of standards like traffic shaping, scheduling, and fault tolerance found in TSN. Key differences include TSN's ability to deliver bounded latency and guaranteed packet delivery through IEEE 802.1 standards, whereas Deterministic Ethernet typically focuses on static time-slot allocation without the advanced timing mechanisms integrated into TSN.
Network Synchronization and Timing Mechanisms
Time-Sensitive Networking (TSN) enhances deterministic Ethernet by providing precise network synchronization and timing mechanisms critical for industrial IoT applications requiring ultra-low latency and minimal jitter. TSN implements IEEE 802.1AS standards for time synchronization, enabling devices to maintain microsecond-level accuracy across the network, while deterministic Ethernet relies on traditional fixed schedule approaches without standardized synchronization protocols. This precise timing coordination in TSN ensures reliable data delivery and tight control over network traffic, vital for real-time automation and mission-critical communication in IoT ecosystems.
Scalability and Flexibility in Industrial IoT Environments
Time-Sensitive Networking (TSN) enhances industrial IoT scalability by providing deterministic, low-latency data transmission over standard Ethernet, enabling seamless integration of numerous devices without compromising real-time performance. Deterministic Ethernet offers fixed bandwidth allocation and guaranteed delivery, but its rigid structure limits flexibility and the ability to adapt to dynamic Industrial IoT environments with diverse and expanding device requirements. TSN's modular architecture supports scalable network growth and flexible reconfiguration, making it better suited for the evolving complexity of Industrial IoT systems.
Real-Time Performance: TSN vs Deterministic Ethernet
Time-Sensitive Networking (TSN) enhances real-time performance in IoT applications by providing guaranteed low latency and minimal jitter through time synchronization and traffic scheduling. Deterministic Ethernet also ensures predictable data delivery but lacks the comprehensive standardization and flexibility of TSN for complex industrial IoT environments. TSN's support for precise time synchronization (IEEE 802.1AS) and resource reservation (IEEE 802.1Qbv) makes it superior for mission-critical IoT use cases requiring strict timing constraints.
Interoperability with Legacy Systems
Time-Sensitive Networking (TSN) enhances deterministic Ethernet by offering standardized protocols that improve interoperability with legacy industrial systems, ensuring seamless integration without disrupting existing infrastructure. TSN supports synchronized communication and low-latency data transfer while maintaining compatibility with traditional Ethernet devices, making it ideal for upgrading IoT networks in manufacturing and automation. Deterministic Ethernet alone often lacks these standardized mechanisms, limiting its effectiveness in heterogeneous environments where legacy compatibility is critical.
Security Considerations for Critical IoT Applications
Time-Sensitive Networking (TSN) and Deterministic Ethernet both provide low-latency, reliable communication essential for critical IoT applications but differ in their security mechanisms. TSN offers enhanced traffic shaping and synchronization features that reduce attack surfaces by minimizing packet loss and jitter, crucial for maintaining data integrity in industrial IoT environments. Deterministic Ethernet emphasizes isolation through dedicated network paths and hardware-based security protocols, ensuring robust protection against cyber threats in time-critical scenarios.
Choosing the Right Solution for Your IoT Deployment
Time-Sensitive Networking (TSN) and Deterministic Ethernet both provide ultra-reliable, low-latency communication essential for mission-critical IoT deployments such as industrial automation and smart grids. TSN extends standard Ethernet by incorporating time synchronization, traffic scheduling, and resource reservation protocols, ensuring precise timing and reduced jitter across large-scale IoT networks. Choosing the right solution depends on factors like network size, real-time requirements, compatibility with existing infrastructure, and the specific latency and synchronization needs of your IoT application.

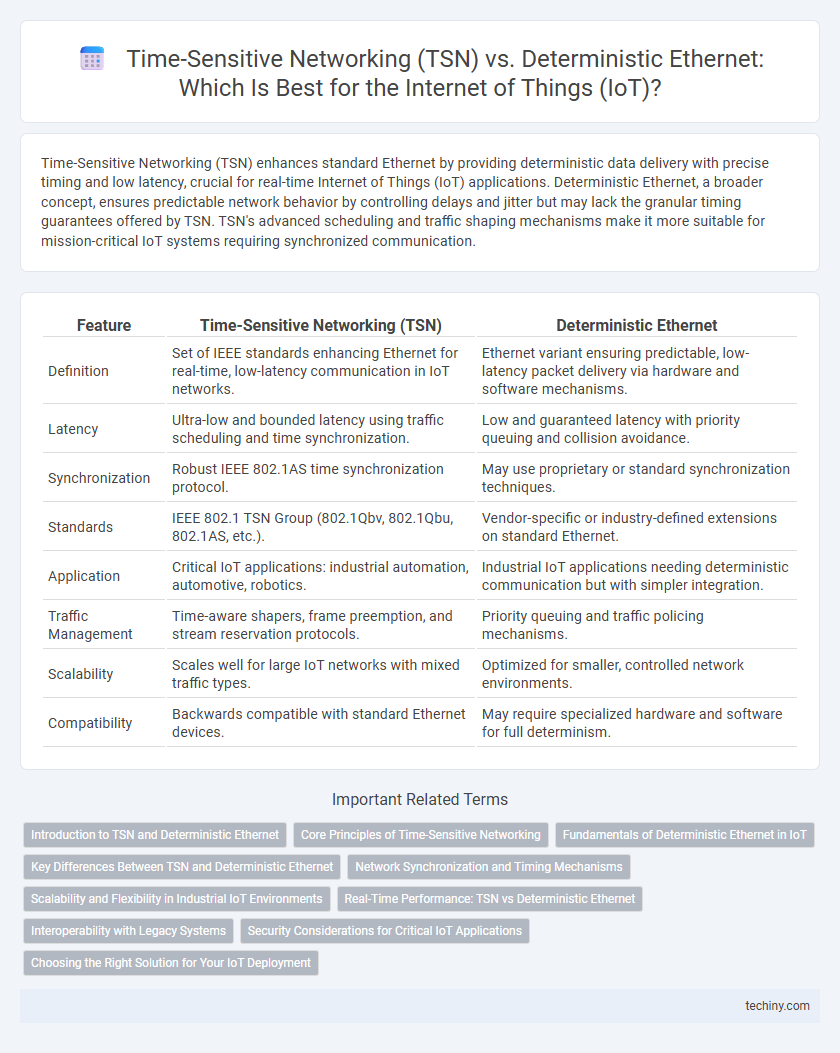

Time-Sensitive Networking (TSN) vs Deterministic Ethernet Infographic
