techiny.com BGP and OSPF serve distinct roles in network routing; BGP is primarily used for inter-domain routing between autonomous systems on the internet, emphasizing policy-based routing and scalability. OSPF operates within a single autonomous system, optimizing internal routing through link-state algorithms for fast convergence and hierarchical network design. Selecting BGP or OSPF depends on network size, scope, and routing requirements, with BGP suited for large-scale, multi-domain environments and OSPF ideal for dynamic internal network management.
Table of Comparison
| Feature | BGP (Border Gateway Protocol) | OSPF (Open Shortest Path First) |
|---|---|---|
| Protocol Type | Path vector routing protocol | Link-state routing protocol |
| Usage | Inter-domain routing (between ASes) | Intra-domain routing (within an AS) |
| Metric | Path attributes and policies | Cost based on bandwidth |
| Routing Algorithm | Policy-based path selection | Dijkstra's shortest path first algorithm |
| Convergence Speed | Slower convergence | Faster convergence |
| Scalability | Highly scalable for large networks | Suitable for medium to large networks |
| Protocol Type Number | TCP (port 179) | IP protocol 89 |
| Administrative Distance | 20 (External BGP), 200 (Internal BGP) | 110 |
| Route Advertisement | Full path and attributes | State of adjacent links |
| Typical Use Case | Internet backbone routing | Enterprise internal networks |
Introduction to BGP and OSPF
BGP (Border Gateway Protocol) is an inter-domain routing protocol designed for exchanging routing information between autonomous systems on the internet, relying on path vector mechanisms and policy-based routing decisions. OSPF (Open Shortest Path First) is an intra-domain, link-state routing protocol that uses the Dijkstra algorithm to calculate the shortest path within a single autonomous system. Both protocols play crucial roles in network routing, with BGP optimizing wide-area network connectivity and OSPF managing efficient, dynamic routing within enterprise networks.
Core Principles: How BGP and OSPF Work
BGP operates as an inter-domain protocol using path vector mechanisms to manage routing decisions across autonomous systems, prioritizing policy and path attributes such as AS path and next-hop. OSPF functions as an intra-domain link-state protocol, utilizing a shortest-path-first algorithm to dynamically calculate routes based on real-time topology changes within a single autonomous system. Both protocols maintain routing tables but differ fundamentally in scalability and route advertisement strategies suited for their respective network environments.
Protocol Types: Exterior vs. Interior Gateway
BGP (Border Gateway Protocol) is an exterior gateway protocol (EGP) designed for routing between autonomous systems on the internet, making it essential for interdomain routing. OSPF (Open Shortest Path First) functions as an interior gateway protocol (IGP) used within a single autonomous system to efficiently manage routing tables and optimize internal network paths. Understanding the distinction between these protocol types is critical for network engineers implementing scalable and reliable routing architectures across diverse network layers.
Routing Algorithms: Path Selection Differences
BGP uses the path vector algorithm, selecting routes based on attributes like AS-path, local preference, and MED to optimize inter-domain routing. OSPF employs the Dijkstra algorithm, calculating the shortest path within an autonomous system by evaluating link costs and network topology. This fundamental difference allows BGP to manage policy-based routing across multiple autonomous systems, while OSPF focuses on efficient intra-domain routing.
Scalability and Network Size Considerations
BGP excels in scalability by efficiently managing routing information across large, complex networks such as the global internet, supporting thousands of autonomous systems. OSPF is better suited for smaller to medium-sized enterprise networks due to its fast convergence and hierarchical design using areas, which limits routing table size. Large-scale environments benefit from BGP's ability to handle extensive policies and route filtering, while OSPF's scalability can be constrained by link-state database size and resource consumption in very large networks.
Convergence Speed: BGP vs. OSPF Performance
OSPF typically converges faster than BGP due to its link-state protocol design, which rapidly detects network changes and recalculates routes within seconds. BGP, relying on path vector mechanisms and extensive policy controls, often experiences slower convergence times, especially in large, complex networks. Fast convergence in OSPF minimizes downtime and improves overall network stability compared to BGP's slower adaptation to topology changes.
Security Features and Vulnerabilities
BGP relies on TCP port 179, making it susceptible to TCP-based attacks, with limited built-in security features, often requiring implementations like TTL security, MD5 authentication, or the use of BGP path validation to prevent prefix hijacking and route leaks. OSPF uses IP protocol number 89 and supports various authentication methods, including plain text, MD5, and more advanced cryptographic options, enhancing the protocol's resistance to spoofing and unauthorized route injection. Both protocols face vulnerabilities such as routing table poisoning and session hijacking, but OSPF's link-state design allows faster detection of compromised nodes, whereas BGP's path vector mechanism depends heavily on external validation for maintaining route integrity.
Typical Use Cases and Deployment Scenarios
BGP excels in inter-domain routing for large-scale internet service providers (ISPs) and enterprises requiring policy-based routing across multiple autonomous systems, ensuring scalability and control over route advertisement. OSPF is optimal for intra-domain routing within a single organization or data center, providing fast convergence and efficient route computation based on link-state metrics. Deployment scenarios commonly pair BGP for wide-area network (WAN) edge routing with OSPF managing internal LAN segments to optimize network performance and reliability.
Configuration Complexity and Management
BGP configuration complexity is higher due to its focus on inter-domain routing with extensive policy control and route filtering capabilities, requiring detailed manual setup and ongoing management. OSPF configuration is generally simpler, designed for intra-domain routing with automatic neighbor discovery and link-state advertisement, allowing easier network topology changes and reduced administrative overhead. Network administrators often prefer OSPF for straightforward internal routing environments, while BGP is essential for managing complex external routing policies across multiple autonomous systems.
Choosing Between BGP and OSPF: Key Factors
Choosing between BGP and OSPF depends on network size, complexity, and scalability requirements. BGP excels in managing routing between large autonomous systems and supports policy-based routing, while OSPF is ideal for faster convergence within single autonomous systems with hierarchical area design. Key factors include network topology, administrative control, and the need for external route advertisement or internal path optimization.

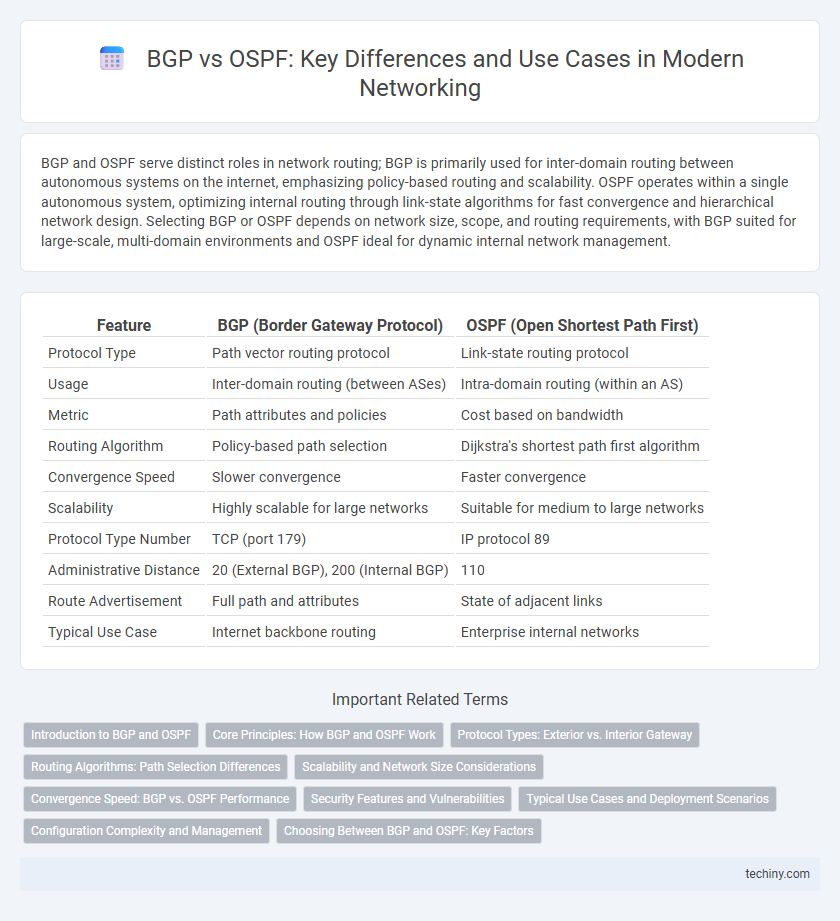

BGP vs OSPF Infographic
