techiny.com MPLS enhances network efficiency and performance by directing data through predetermined, high-speed paths, making it ideal for large-scale, service provider environments. GRE tunnels create simple, flexible point-to-point connections by encapsulating packets, useful for linking disparate networks over the internet. Comparing MPLS and GRE highlights MPLS's superior traffic engineering and scalability versus GRE's ease of deployment and protocol transparency.
Table of Comparison
| Feature | MPLS (Multiprotocol Label Switching) | GRE (Generic Routing Encapsulation) |
|---|---|---|
| Definition | Packet forwarding technology using labels for efficient routing across networks. | Tunneling protocol encapsulating diverse network layer protocols inside IP tunnels. |
| Primary Use | Traffic engineering, VPNs, and carrier-grade IP backbone networks. | Encapsulating and transporting packets between remote sites over IP networks. |
| Performance | High-performance routing with low latency and optimized bandwidth usage. | Higher overhead due to encapsulation, possible increased latency. |
| Protocol Transparency | Supports multiprotocol traffic by labeling packets regardless of protocol. | Encapsulates any Layer 3 protocols, including non-IP, inside IP packets. |
| Scalability | Highly scalable with support for large enterprise and service provider networks. | Limited scalability, best suited for smaller or point-to-point tunnels. |
| Security | Supports traffic separation and VPNs, often paired with IPsec for encryption. | No built-in encryption; typically combined with IPsec for secure tunnels. |
| Configuration Complexity | Complex configuration requiring MPLS-aware routers and label distribution. | Simple to configure with standard IP routers, no MPLS infrastructure needed. |
| Use Case Example | Service provider backbone networks delivering MPLS VPN services. | Site-to-site VPN tunnels between branch offices over the internet. |
Introduction to MPLS and GRE
MPLS (Multiprotocol Label Switching) is a high-performance routing technique that directs data from one node to another based on short path labels rather than long network addresses, improving speed and efficiency in large-scale networks. GRE (Generic Routing Encapsulation) is a tunneling protocol designed to encapsulate a wide variety of network layer protocols inside virtual point-to-point links, providing protocol flexibility across IP networks. Both MPLS and GRE enhance network traffic management and scalability but achieve these goals through fundamentally different mechanisms suited to diverse networking scenarios.
Core Principles of MPLS
MPLS (Multiprotocol Label Switching) operates by assigning fixed-length labels to packets, enabling efficient forwarding decisions based on these labels rather than IP headers, which reduces latency and improves throughput in core networks. It supports traffic engineering by directing data along pre-determined Label Switched Paths (LSPs), optimizing bandwidth utilization and enhancing Quality of Service (QoS). Unlike GRE (Generic Routing Encapsulation), MPLS integrates with Layer 2 and Layer 3 protocols natively, providing scalability and faster packet forwarding in large-scale service provider networks.
Core Principles of GRE
Generic Routing Encapsulation (GRE) is a tunneling protocol that encapsulates a wide variety of network layer protocols inside virtual point-to-point links over an Internet Protocol internetwork. It operates by creating a virtual point-to-point link, enabling the transport of packets between two networks across an IP network regardless of the underlying routing protocol. GRE's core principle involves encapsulating packets within a GRE header and an outer IP header, allowing for protocol tunneling and facilitating network virtualization, multiprotocol support, and VPN implementations.
Key Differences Between MPLS and GRE
MPLS (Multiprotocol Label Switching) uses label-based forwarding to direct packets through a predefined path, optimizing speed and traffic engineering within large service provider networks. GRE (Generic Routing Encapsulation) encapsulates a wide variety of network layer protocols inside virtual point-to-point links over IP networks, primarily enabling tunneling across disparate IP networks without inherent traffic engineering capabilities. Key differences between MPLS and GRE include MPLS's superior scalability and traffic management through label switching, contrasted with GRE's flexibility for protocol encapsulation and simpler deployment but increased overhead due to encapsulation headers.
Use Cases: When to Choose MPLS
MPLS is ideal for service providers and large enterprises requiring scalable, low-latency, and traffic-engineered networks supporting VPNs and QoS for voice and video applications. It excels in multi-site WAN environments needing reliable, secure connectivity with predictable performance over Layer 2 and Layer 3 VPNs. Choose MPLS when prioritizing network efficiency, traffic segregation, and dynamic path selection across geographically dispersed locations.
Use Cases: When to Choose GRE
GRE tunnels are ideal for scenarios requiring flexible encapsulation of a variety of Layer 3 protocols over IP networks, such as connecting disparate networks without MPLS infrastructure or supporting multicast traffic. They are commonly used for VPNs when encryption is not a primary concern or when encapsulating non-IP protocols is necessary. GRE is preferred in complex network topologies requiring tunneling over public internet or across heterogeneous service providers where MPLS is unavailable or impractical.
Performance and Scalability Comparison
MPLS offers high performance with low latency and efficient packet forwarding through label switching, making it ideal for large-scale enterprise networks. GRE tunnels encapsulate a wide variety of network layer protocols but introduce additional overhead and potential latency due to encapsulation and decapsulation processes. Scalability favors MPLS, as it supports extensive traffic engineering and seamless integration with VPNs, while GRE's scalability is limited by increased CPU usage on routers managing multiple tunnels.
Security Implications: MPLS vs GRE
MPLS offers enhanced security by operating within a provider's controlled network, isolating traffic through label switching and reducing exposure to external threats. GRE tunnels lack inherent encryption, requiring additional protocols like IPsec to secure data, which can increase complexity and overhead. Consequently, MPLS is generally preferred for secure, scalable enterprise VPNs, while GRE suits less sensitive or simpler tunneling needs.
Deployment Scenarios and Best Practices
MPLS excels in large-scale service provider networks requiring traffic engineering, low latency, and scalable VPN solutions, making it ideal for enterprise WANs and data center interconnects. GRE tunnels are better suited for simple site-to-site VPN deployments and overlay networks where compatibility and ease of setup are priorities, especially in environments lacking MPLS infrastructure. Best practices recommend using MPLS for performance-critical applications and GRE for flexible, quick tunneling solutions with limited QoS features.
Future Trends in MPLS and GRE Integration
Future trends in MPLS and GRE integration emphasize enhanced scalability and improved network automation capabilities to meet growing traffic demands. Innovations include combining MPLS's efficient traffic engineering with GRE's flexibility for seamless VPN deployment and multi-cloud connectivity. Advancements in software-defined networking (SDN) and network functions virtualization (NFV) further drive dynamic MPLS-GRE orchestration, enabling adaptive, secure, and high-performance network infrastructures.

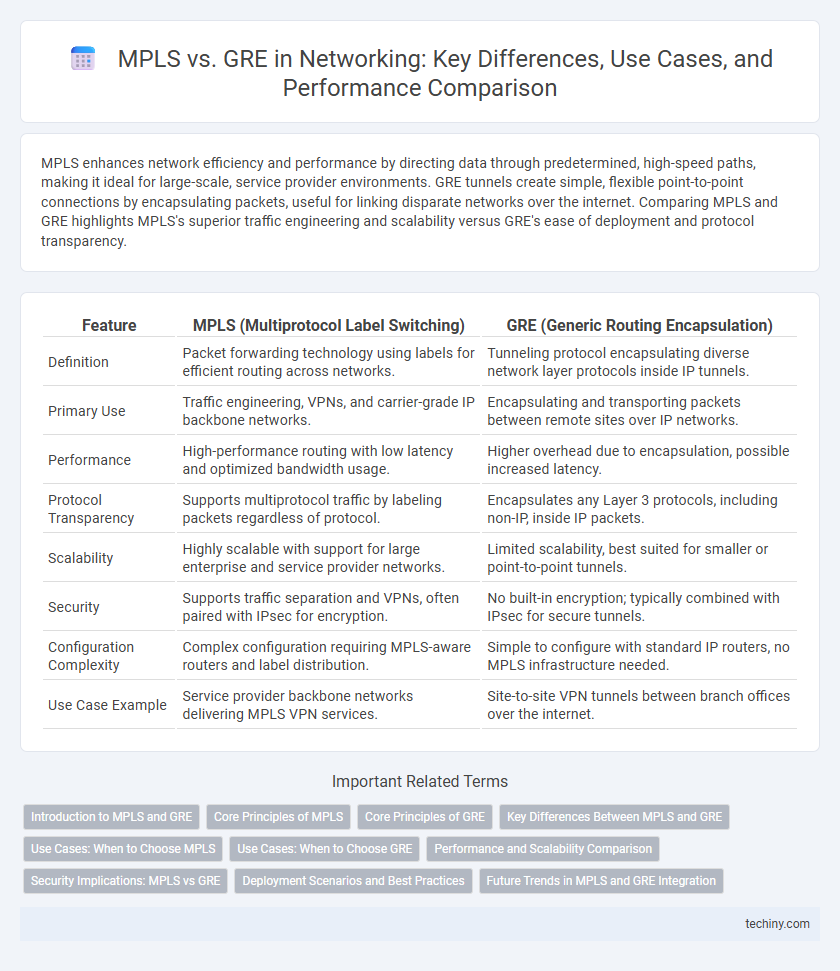

MPLS vs GRE Infographic
