OSPF vs. EIGRP: Key Differences, Advantages, and Use Cases in Modern Networking

OSPF and EIGRP are popular interior gateway protocols used to manage routing within large enterprise networks, with OSPF being a link-state protocol and EIGRP a distance-vector protocol. OSPF provides faster convergence and scalability in complex, multi-vendor environments, while EIGRP offers simpler configuration and efficient use of bandwidth with its advanced metric calculations. Choosing between OSPF and EIGRP depends on network size, vendor compatibility, and specific performance requirements such as fault tolerance and load balancing.

Table of Comparison

OSPF vs EIGRP: Protocol Fundamentals

OSPF (Open Shortest Path First) is a link-state routing protocol that organizes networks into areas and uses the Dijkstra algorithm to calculate shortest paths, ensuring fast convergence and scalability. EIGRP (Enhanced Interior Gateway Routing Protocol) is a hybrid routing protocol developed by Cisco, combining distance vector and link state features with the Diffusing Update Algorithm (DUAL) to provide loop-free, efficient routing with rapid convergence. While OSPF is an open standard supported by multiple vendors, EIGRP is proprietary to Cisco, influencing protocol selection based on network environment and interoperability requirements.

Key Differences Between OSPF and EIGRP

OSPF (Open Shortest Path First) is a link-state routing protocol that uses the Dijkstra algorithm, supports hierarchical network design with areas, and is an open standard widely used in large enterprise networks. EIGRP (Enhanced Interior Gateway Routing Protocol) is a Cisco proprietary hybrid protocol combining distance-vector and link-state features, utilizing the Diffusing Update Algorithm (DUAL) for fast convergence and supporting unequal-cost load balancing. OSPF typically requires more CPU and memory resources than EIGRP but provides better scalability and fast adaptation to topology changes in multi-vendor environments.

Network Design Considerations

OSPF supports large and complex hierarchical network designs with clear area segmentation, making it ideal for scalable enterprise networks requiring route aggregation and load balancing. EIGRP offers faster convergence and simpler configuration, suited for medium-sized networks with less hierarchical complexity and Cisco-centric environments. Choosing between OSPF and EIGRP depends on factors like network size, vendor interoperability, route summarization needs, and administrative overhead.

Scalability and Performance Comparison

OSPF excels in large-scale network deployments due to its hierarchical design using areas, which reduces routing table size and limits LSA flooding, enhancing scalability. EIGRP offers faster convergence and lower CPU utilization with its advanced Diffusing Update Algorithm (DUAL), providing superior performance in medium-sized networks. While OSPF scales efficiently with complex topologies, EIGRP delivers optimal throughput and reduced latency in dynamic environments with frequent topology changes.

Convergence Time: OSPF vs EIGRP

EIGRP typically achieves faster convergence times compared to OSPF due to its use of Diffusing Update Algorithm (DUAL), which allows for rapid recalculation of routes without waiting for the entire network to be updated. OSPF relies on link-state advertisements and a designated router to build a complete topology map, resulting in slower convergence during network changes. In large or complex networks, EIGRP's quicker convergence reduces downtime and improves overall network stability more effectively than OSPF.

Route Calculation and Metrics

OSPF uses a link-state routing algorithm with the Dijkstra shortest path first (SPF) calculation based on bandwidth as the primary metric, ensuring loop-free and precise route determination in large, hierarchical networks. EIGRP employs a hybrid routing algorithm combining distance vector and link-state features, calculating routes using the composite metric of bandwidth, delay, load, and reliability, allowing faster convergence and efficient path selection. While OSPF metrics rely solely on bandwidth for cost calculation, EIGRP's more complex metric formula provides granular control over route evaluation and network performance optimization.

Configuration and Management

OSPF configuration involves setting up area IDs and router IDs manually, requiring careful planning of hierarchical topology to optimize routing efficiency. EIGRP configuration is simpler, using automatic neighbor discovery and minimal manual input, with a focus on defining autonomous system numbers and enabling interfaces. Management of OSPF demands frequent monitoring of link states and database synchronization, while EIGRP offers easier troubleshooting with its DUAL algorithm and fast convergence capabilities.

Security Features and Best Practices

OSPF employs MD5 or SHA authentication to secure routing updates, preventing unauthorized access, while EIGRP supports MD5 authentication along with extended key lifetimes for enhanced protection. Best practices include consistently configuring authentication keys across all routers and using null0 route filtering to mitigate route injection attacks. Regularly auditing routing protocol configurations and enabling neighbor authentication timers help maintain secure OSPF and EIGRP deployments.

Use Cases for OSPF and EIGRP

OSPF is ideal for large, complex enterprise networks requiring hierarchical design and scalability, supporting multi-vendor environments with fast convergence and efficient routing in IP networks. EIGRP excels in Cisco-dominated networks, providing rapid convergence and easy configuration with advanced features like unequal-cost load balancing, making it suitable for smaller to medium-sized networks. Both protocols optimize internal routing, but OSPF is preferred for interoperability and extensive network topologies, while EIGRP is favored for Cisco-centric infrastructures with simpler deployment needs.

Choosing the Right Protocol for Your Network

OSPF offers a scalable, link-state routing protocol ideal for large, hierarchical networks with fast convergence and support for VLSM, making it suitable for multi-vendor environments requiring strict standard compliance. EIGRP, a Cisco-proprietary protocol, excels in fast convergence and ease of configuration, well-suited for Cisco-dominant networks with complex topologies demanding efficient bandwidth usage. Selecting between OSPF and EIGRP depends on factors like network size, vendor compatibility, convergence speed requirements, and administrative overhead.

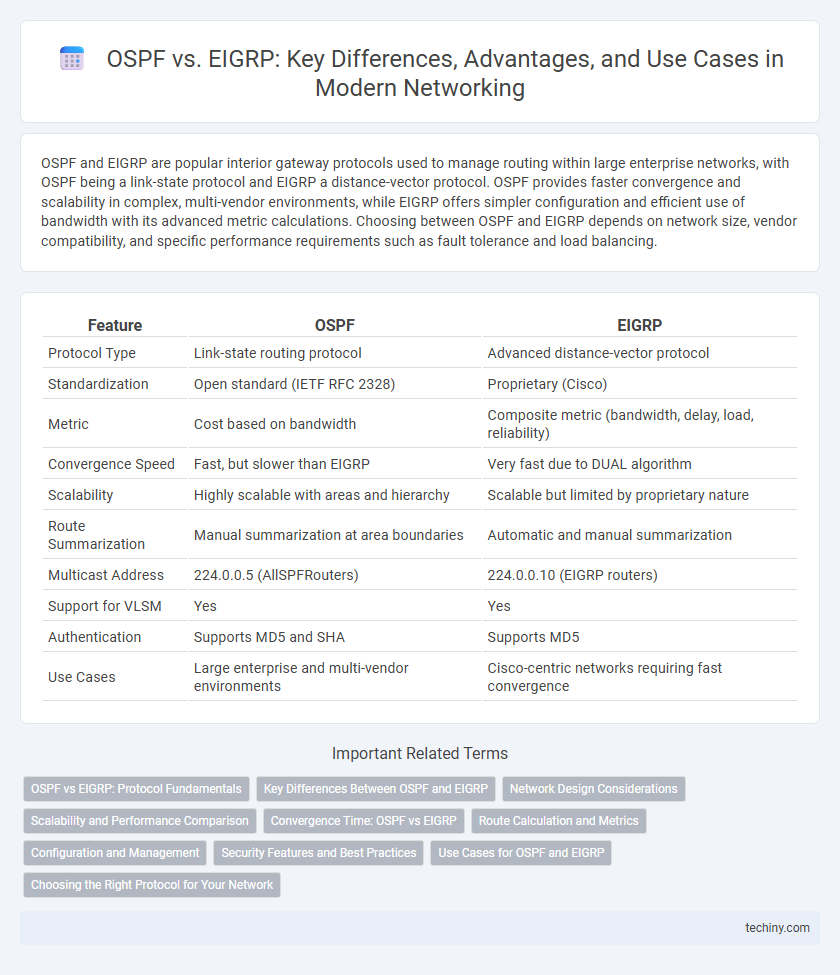

OSPF vs EIGRP Infographic
