techiny.com Route summarization consolidates multiple network routes into a single summary route to reduce routing table size and improve efficiency. Route aggregation, often used interchangeably with summarization, specifically refers to combining contiguous IP address blocks into one aggregate route to optimize network performance. Both techniques minimize routing updates and enhance scalability in complex networks.
Table of Comparison
| Feature | Route Summarization | Route Aggregation |
|---|---|---|
| Definition | Combines multiple routes into a single summarized route advertised to reduce routing table size. | Combines several network prefixes into one aggregate address, representing multiple networks as one. |
| Purpose | Optimize routing by minimizing routing updates and table entries. | Reduce routing table entries and simplify routing by aggregating prefixes. |
| Scope | Primarily internal, used within routing domains or areas. | Used both internally and externally, especially in BGP for Internet routing. |
| Implementation | Configured on routers summarizing routes into broader range. | Created with an aggregate address that encompasses multiple specific routes. |
| Effect on Routing Table | Reduces number of specific routes by replacing them with one summary route. | Replaces individual routes with a single aggregate route. |
| Example Protocols | OSPF, EIGRP, RIP | BGP, OSPF |
| Traffic Impact | Less routing update traffic within the domain. | Simplifies external routing advertisements, reducing update size. |
| Configuration Complexity | Generally simpler; involves selecting summary address ranges. | May be complex due to necessity of careful prefix selection to avoid routing issues. |
Understanding Route Summarization in Networking
Route summarization in networking condenses multiple IP routes into a single advertisement, reducing the size of routing tables and improving network efficiency. It optimizes bandwidth usage and accelerates routing convergence by minimizing the number of entries that routers process and exchange. Understanding route summarization is essential for optimizing large-scale network designs and enhancing overall routing performance.
What Is Route Aggregation?
Route aggregation is the process of combining multiple IP routes into a single summarized route to reduce routing table size and improve network performance. It helps optimize network efficiency by minimizing the number of routes exchanged between routers, thereby reducing bandwidth usage and CPU load. This technique is commonly used in large-scale networks to simplify routing, enhance scalability, and improve convergence times.
Key Differences Between Route Summarization and Aggregation
Route summarization consolidates multiple specific routes into a single summary route to reduce routing table size and improve network efficiency, while route aggregation combines multiple routes into a broader range but may include non-contiguous addresses. Summarization typically relies on contiguous network blocks and subnet masks, providing more precise and efficient routing entries, whereas aggregation can be less precise and might lead to suboptimal routing paths. Key differences lie in their handling of network addresses, with summarization optimizing routing decisions and aggregation focusing on broader address consolidation.
Benefits of Route Summarization for Network Efficiency
Route summarization reduces the size of routing tables by consolidating multiple routes into a single summary route, which significantly improves network efficiency and decreases CPU load on routers. It minimizes routing updates and limits the propagation of route changes, leading to faster convergence and reduced bandwidth consumption. By improving scalability and simplifying network management, route summarization enhances overall network performance and stability.
Advantages of Route Aggregation in Large Networks
Route aggregation reduces routing table size by combining multiple routes into a single summary route, significantly improving router memory and processing efficiency in large networks. It enhances network stability by minimizing the frequency of route advertisements and updates, lowering CPU usage and bandwidth consumption. Furthermore, route aggregation simplifies network management and troubleshooting by providing a clear hierarchical structure of IP prefixes.
Use Cases for Route Summarization
Route summarization optimizes routing tables by consolidating multiple routes into a single advertisement, reducing the size of the routing table and minimizing routing protocol overhead. It is particularly useful in hierarchical network designs, such as service provider backbones or large enterprise networks, where summarizing IP address ranges enhances scalability and improves convergence times during topology changes. Route summarization is effective in preventing routing loops and controlling the propagation of routing updates, leading to more efficient network performance and simplified management.
When to Use Route Aggregation Techniques
Route aggregation techniques should be used in large networks to reduce the size of routing tables and improve routing efficiency by combining multiple routes into a single advertisement. It is particularly beneficial in hierarchical network designs where summarizing routes between different areas or autonomous systems minimizes the exchange of detailed routing information. Employing route aggregation enhances scalability and decreases routing protocol overhead in complex, multi-router environments.
Challenges and Limitations of Summarization vs Aggregation
Route summarization faces challenges such as potential loss of detailed routing information and increased risk of suboptimal path selection due to overly broad summaries. Route aggregation, while similar, can lead to scalability issues when aggregating multiple routes from diverse sources, complicating route management and troubleshooting. Both techniques risk dropping redundant but critical routes, affecting network stability and complicating accurate traffic engineering.
Best Practices for Implementing Summarization and Aggregation
Implementing route summarization and aggregation effectively requires careful design to minimize routing table size and improve network convergence times. Best practices include selecting summary addresses that encompass all specific routes without creating routing loops or blackholes, and ensuring consistent summarization at redistribution points to maintain routing protocol stability. Using hierarchical addressing schemes and monitoring for summarization errors through regular route validation can optimize network performance and scalability.
Impact of Route Summarization and Aggregation on Network Performance
Route summarization reduces the size of routing tables by combining multiple routes into a single summary route, which decreases CPU and memory usage on routers and enhances convergence speed during network topology changes. Route aggregation, often implemented in BGP, groups multiple routes with a common prefix to minimize route advertisement and conserve bandwidth across autonomous systems, improving overall network scalability. Both techniques optimize routing efficiency, reduce processing overhead, and minimize network instability by limiting the propagation of detailed routing information.

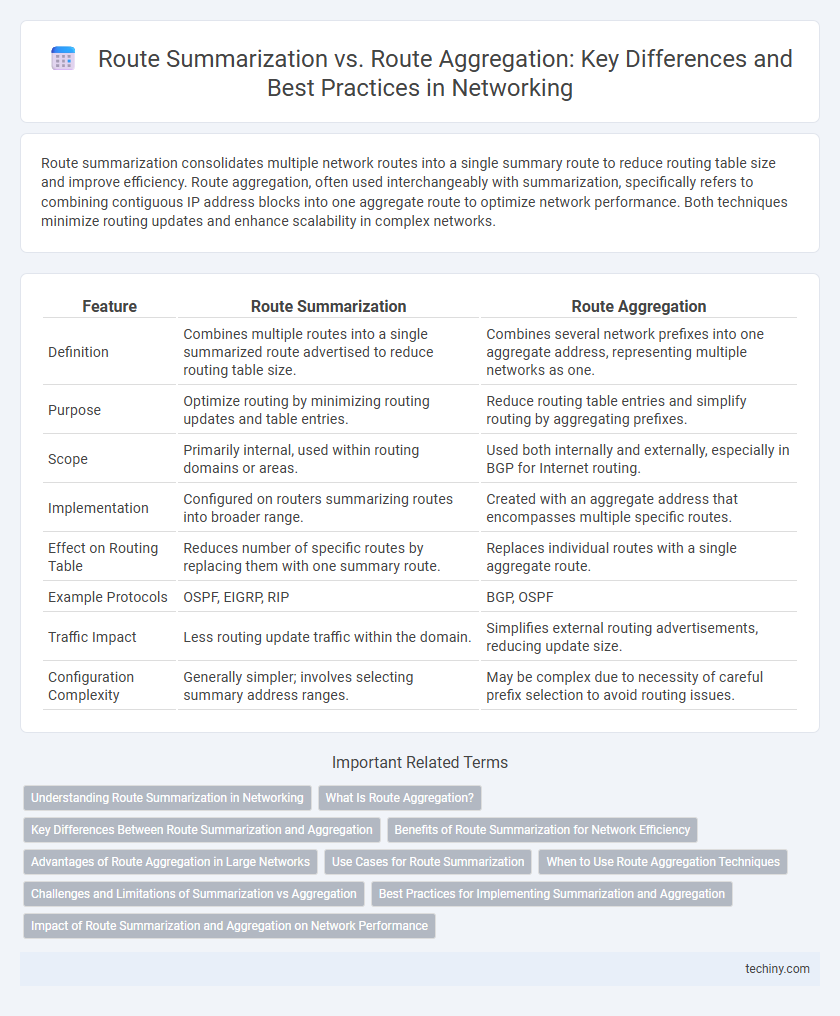

Route Summarization vs Route Aggregation Infographic
