techiny.com ICMP and ARP are essential network protocols that serve distinct purposes in managing data communication. ICMP (Internet Control Message Protocol) is used for error reporting and diagnostics within IP networks, such as informing a source host about unreachable destinations. ARP (Address Resolution Protocol) translates IP addresses to MAC addresses, enabling devices to locate each other on a local network segment for proper data delivery.
Table of Comparison
| Feature | ICMP (Internet Control Message Protocol) | ARP (Address Resolution Protocol) |
|---|---|---|
| Purpose | Network diagnostics and error reporting | Mapping IP addresses to MAC addresses |
| Protocol Type | Network Layer (Layer 3) | Data Link Layer (Layer 2) |
| Function | Reports network issues like unreachable hosts, time exceeded | Resolves IP addresses to physical hardware addresses on LAN |
| Message Types | Echo Request, Echo Reply, Destination Unreachable, Time Exceeded | Request, Reply |
| Packet Encapsulation | Encapsulated in IP packets | Encapsulated in Ethernet frames |
| Typical Use Cases | Ping, traceroute, network troubleshooting | IP to MAC address mapping on local networks |
| Addressing | Uses IP addresses | Uses MAC addresses |
Understanding ICMP: Purpose and Function
ICMP (Internet Control Message Protocol) serves as a crucial protocol for error reporting and network diagnostics within IP networks, enabling devices to send messages about network conditions such as unreachable hosts or packet loss. Unlike ARP (Address Resolution Protocol), which resolves IP addresses to MAC addresses for local network communication, ICMP operates at the network layer to provide feedback and perform diagnostic functions like the ping and traceroute utilities. Understanding ICMP's role helps optimize network performance by identifying connectivity issues and facilitating efficient troubleshooting.
Exploring ARP: Role in Network Communication
ARP (Address Resolution Protocol) plays a crucial role in network communication by mapping IP addresses to MAC addresses, enabling devices on a local network to identify each other at the data link layer. Unlike ICMP, which is primarily used for diagnostic and error-reporting purposes, ARP operates to facilitate direct data transmission within LANs by resolving hardware addresses. Efficient ARP function ensures seamless communication and reduces latency in packet delivery across Ethernet networks.
Key Differences Between ICMP and ARP
ICMP (Internet Control Message Protocol) is primarily used for error reporting and diagnostic functions within IP networks, while ARP (Address Resolution Protocol) resolves IP addresses to MAC addresses in local networks. ICMP operates at the network layer and supports messages such as echo requests and time exceeded, whereas ARP functions at the data link layer, enabling communication between devices on the same subnet. ICMP is essential for troubleshooting and network management, whereas ARP is critical for address resolution and effective data packet delivery within LAN environments.
ICMP Message Types and Their Uses
ICMP (Internet Control Message Protocol) supports various message types including Echo Request and Echo Reply, used primarily for network diagnostics like the ping operation. Destination Unreachable messages notify senders of unreachable hosts or networks, aiding in routing fault identification. Time Exceeded messages indicate TTL expiry, helping in traceroute functions to map network paths.
ARP Packet Structure and Operation
The ARP (Address Resolution Protocol) packet structure consists of fields such as Hardware Type, Protocol Type, Hardware Address Length, Protocol Address Length, Operation Code, Sender Hardware Address, Sender Protocol Address, Target Hardware Address, and Target Protocol Address, enabling efficient mapping between IP addresses and MAC addresses within a local network. ARP operates by broadcasting a request packet to all devices on the LAN to resolve the MAC address associated with a known IP address, receiving an ARP reply containing the target's MAC address for direct communication. This process underpins essential local network connectivity by ensuring accurate layer 2 addressing required for packet delivery.
Common Use Cases for ICMP
ICMP (Internet Control Message Protocol) is primarily used for error reporting and diagnostic functions such as the "ping" command, which tests the reachability of a host on an IP network. Network devices utilize ICMP to send messages about issues like unreachable destinations, time exceeded, and packet loss, aiding in troubleshooting and network management. Unlike ARP, which resolves IP addresses to MAC addresses within a local network segment, ICMP operates across networks to provide vital feedback on network communication status.
ARP Protocol Vulnerabilities and Security Risks
ARP protocol vulnerabilities primarily stem from its lack of authentication, making it susceptible to spoofing attacks such as ARP cache poisoning, where attackers send falsified ARP messages to associate their MAC address with the IP address of a legitimate device. This risk enables malicious actors to intercept, modify, or disrupt network traffic, leading to potential man-in-the-middle attacks and denial of service. Implementing dynamic ARP inspection (DAI) and using secure network architectures can mitigate these ARP-based security risks effectively.
How ICMP and ARP Interact in Network Environments
ICMP facilitates error reporting and diagnostic functions by communicating control messages between routers and hosts, while ARP resolves IP addresses to MAC addresses, enabling local network communication. In network environments, ICMP relies on ARP to obtain the physical address necessary for delivering its packets within the same subnet. This interaction ensures efficient data transmission and robust troubleshooting capabilities in IP-based networks.
Troubleshooting Network Issues: ICMP vs ARP
ICMP is essential for diagnosing network connectivity and latency issues by sending echo requests and receiving echo replies, commonly used in ping operations to verify the reachability of hosts. ARP resolves IP addresses to MAC addresses on a local network, making it crucial for identifying and fixing local address resolution problems that cause communication failures. Effective network troubleshooting leverages ICMP for end-to-end diagnostic tests and ARP for resolving physical address conflicts and ensuring accurate packet delivery within LAN segments.
Choosing the Right Protocol for Network Diagnostics
ICMP and ARP serve distinct roles in network diagnostics, with ICMP primarily used for error reporting and operational queries like pinging to test reachability, while ARP resolves IP addresses to MAC addresses within a local network segment. Selecting the appropriate protocol depends on the diagnostic objective: employ ICMP for end-to-end connectivity checks and ARP for verifying address resolution and local network integrity. Effective troubleshooting combines ICMP's network layer insights with ARP's link-layer address mapping to ensure comprehensive diagnostics.

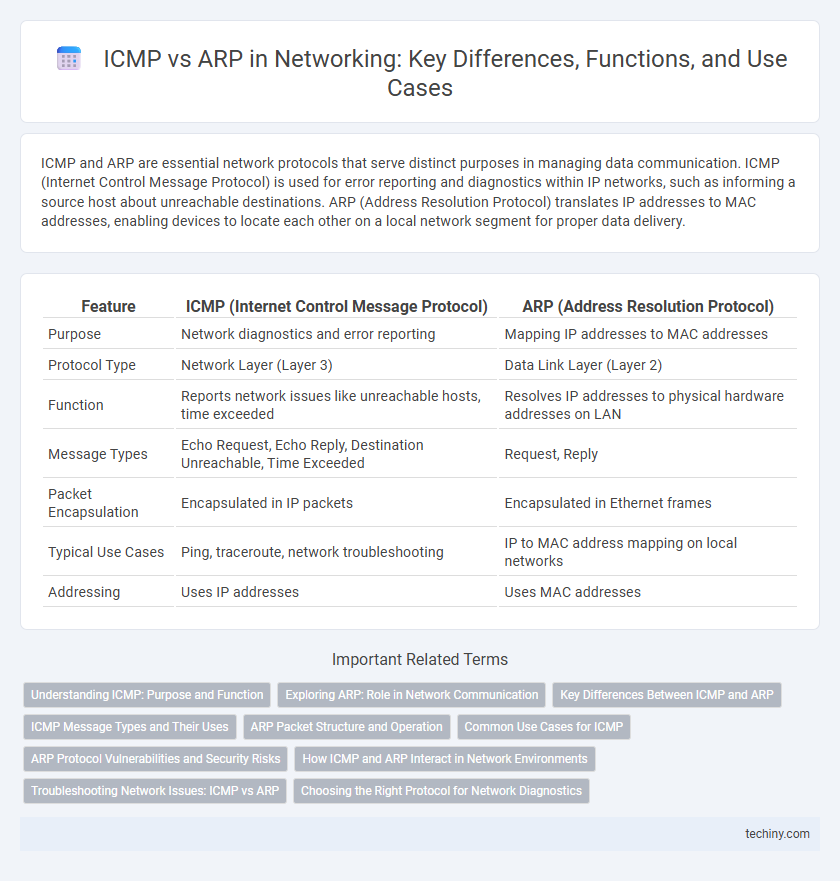

ICMP vs ARP Infographic
