techiny.com Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) both provide router redundancy to ensure network availability, but HSRP is a Cisco proprietary protocol while VRRP is an open standard. HSRP allows one active router and one or more standby routers, with a virtual IP address shared among them to enable seamless failover in case the active router fails. VRRP improves network resilience by electing a master router that handles traffic, with backup routers taking over automatically, offering interoperability across different vendor devices.
Table of Comparison
| Feature | HSRP (Hot Standby Router Protocol) | VRRP (Virtual Router Redundancy Protocol) |
|---|---|---|
| Standard | Cisco proprietary | Open standard (RFC 5798) |
| Primary Use | Router redundancy for Cisco networks | Router redundancy across multi-vendor networks |
| Virtual IP Address | Yes, shared IP for failover | Yes, shared IP for failover |
| Priority Value | Configurable priority to select active router | Configurable priority to select master router |
| Failover Time | Typically 3 seconds or configurable timers | Sub-second failover with preemption enabled |
| Preemption | Supported but not enabled by default | Supported and commonly enabled |
| Authentication | Supports MD5 authentication | Supports simple and MD5 authentication |
| Maximum Routers per Group | Typically up to 16 routers | Up to 255 virtual routers |
| Use Case | Ideal for Cisco-only environments | Ideal for heterogeneous, multi-vendor networks |
Introduction to HSRP and VRRP
Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) are network protocols designed to provide high availability and redundancy for routers in IP networks. HSRP, developed by Cisco, creates a virtual router with a single active router and one or more standby routers to ensure seamless failover in case the active router fails. VRRP, an open-standard protocol, functions similarly by electing a master router from a group, enhancing network reliability through automatic router backup and gateway redundancy.
Core Principles of HSRP
Hot Standby Router Protocol (HSRP) operates by creating a virtual router with a shared IP address that multiple routers monitor, ensuring continuous network availability through automatic failover. The protocol assigns a primary Active router and a Standby router, where the Active router handles traffic and the Standby router takes over if the Active fails, minimizing downtime. HSRP uses hello messages to monitor router status and maintain session consistency, providing seamless redundancy in Layer 3 networks.
Core Principles of VRRP
Virtual Router Redundancy Protocol (VRRP) is a network protocol that enhances gateway redundancy by allowing multiple routers to share a virtual IP address. VRRP assigns a master router responsible for forwarding traffic while backup routers monitor the master and take over automatically if it fails, ensuring continuous network availability. The protocol operates through election of the router with the highest priority, which simplifies failover and provides seamless IP routing in high-availability environments.
Protocol Architecture Comparison
Hot Standby Router Protocol (HSRP) utilizes an active and standby router system within a group to provide network redundancy, where the active router handles traffic and the standby seamlessly takes over if failure occurs. Virtual Router Redundancy Protocol (VRRP) employs a master and backup router model, offering more flexibility by allowing multiple routers to participate with preemption capability and advertisement intervals for failover control. Both protocols use virtual IP addresses to ensure continuous availability, but VRRP is an open standard supported by various vendors, while HSRP is proprietary to Cisco devices.
Configuration Differences
HSRP uses Cisco-proprietary configuration commands such as `standby` for defining group and priority, while VRRP employs standardized commands like `vrrp` with group and priority parameters, making it compatible across multiple vendors. HSRP requires explicit configuration of active and standby routers with preemption capabilities, whereas VRRP inherently supports preemption and elects a master router based on priority settings. Furthermore, HSRP supports up to 255 groups per interface, compared to VRRP's typical limit of 255 VRRP instances, reflecting varying scalability options.
Election and Failover Mechanisms
HSRP uses a priority-based election process where routers send hello messages, and the router with the highest priority becomes the active router, with a standby router ready to take over if the active fails. VRRP elects a master router using a priority value as well, but it allows preemption only if configured, causing a different failover behavior compared to HSRP. Both protocols rely on heartbeat messages to detect router failures, but HSRP typically provides faster failover times through its proactive standby router design.
Security Considerations
Hot Standby Router Protocol (HSRP) employs authentication mechanisms such as MD5 to prevent unauthorized devices from participating in the router group, enhancing network security. Virtual Router Redundancy Protocol (VRRP) supports similar authentication options, including clear-text and MD5, but lacks some proprietary encryption features found in HSRP. Both protocols require proper configuration and regular key updates to mitigate risks of spoofing and denial-of-service attacks in critical network environments.
Performance and Scalability
HSRP offers superior scalability in complex Cisco environments through its support for up to 255 groups per interface, enhancing performance in large-scale deployments. VRRP, with its open-standard design, supports multiple vendors and typically handles fewer virtual routers per interface, which can limit scalability but offers broader interoperability. Performance in HSRP is optimized by Cisco's proprietary enhancements, while VRRP relies on standardized protocols that may introduce slight latency in failover times under heavy network loads.
Real-World Use Cases
HSRP is widely used in Cisco-dominated networks to provide seamless failover and high availability for critical enterprise infrastructure, ensuring continuous connectivity during router outages. VRRP, being an open standard, excels in multi-vendor environments such as data centers and service provider networks, enabling interoperability across different router manufacturers. Both protocols support load balancing and redundancy but are selected based on specific network architecture requirements and vendor compatibility.
Choosing Between HSRP and VRRP
When choosing between Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP), consider device compatibility and licensing requirements as HSRP is Cisco proprietary, while VRRP is an open standard supported by multiple vendors. Evaluate network topology and failover timing, since HSRP offers faster convergence times with Cisco devices, but VRRP provides greater flexibility in mixed-vendor environments. Prioritizing protocol standardization and administrative control can optimize redundancy strategies and ensure reliable gateway availability in both enterprise and multi-vendor networks.

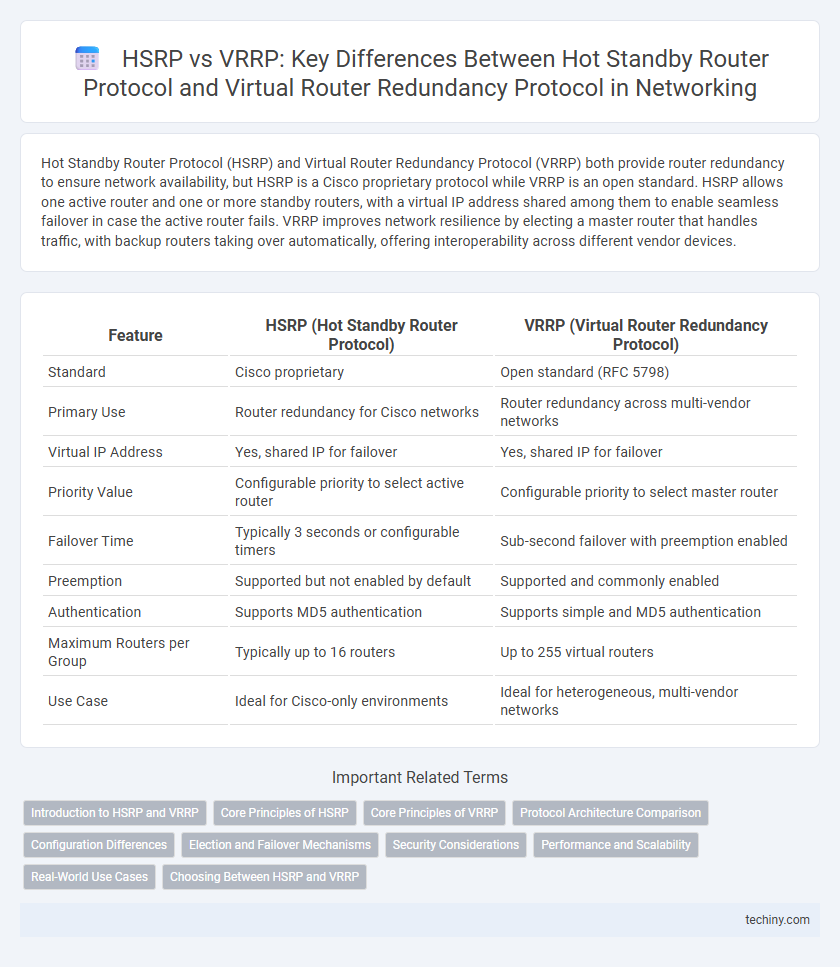

Hot Standby Router Protocol (HSRP) vs Virtual Router Redundancy Protocol (VRRP) Infographic
