techiny.com MPLS (Multiprotocol Label Switching) enhances network efficiency by directing data from one node to another using short path labels rather than long network addresses. VPLS (Virtual Private LAN Service) builds on MPLS technology to create a multipoint-to-multipoint Layer 2 VPN, enabling geographically dispersed sites to appear as a single LAN. While MPLS is suited for Layer 3 routing and traffic engineering, VPLS provides seamless Ethernet service over an IP/MPLS network, ideal for network pet environments requiring flexible, scalable connectivity.
Table of Comparison
| Feature | MPLS (Multi-Protocol Label Switching) | VPLS (Virtual Private LAN Service) |
|---|---|---|
| Definition | Label-based forwarding technology for efficient network traffic routing. | Layer 2 VPN service that emulates LAN over MPLS/IP networks. |
| Network Layer | Operates at Layer 2.5 (between Data Link and Network layers). | Operates at Layer 2 (Data Link layer). |
| Use Case | Traffic engineering, VPNs, and QoS in large-scale IP networks. | Extends Ethernet LAN across multiple sites via MPLS backbone. |
| Traffic Management | Supports Explicit Routing and traffic prioritization. | Transparent LAN service, limited traffic engineering. |
| Scalability | Highly scalable with label switching and hierarchical VPNs. | Moderate scalability; limited by MAC address learning in VPLS domain. |
| Protocol Complexity | Complex; requires label distribution protocols (LDP, RSVP-TE). | Less complex; uses BGP or LDP for signaling. |
| Deployment | Ideal for backbone networks and service provider infrastructures. | Best suited for enterprise LAN interconnect over WAN. |
| Service Type | Supports Layer 2 and Layer 3 VPNs. | Pure Layer 2 VPN. |
Introduction to MPLS and VPLS Technologies
MPLS (Multiprotocol Label Switching) is a high-performance method for forwarding packets through a network using short path labels instead of long network addresses, enhancing speed and scalability in data traffic management. VPLS (Virtual Private LAN Service) leverages MPLS to create a Layer 2 VPN, enabling geographically dispersed sites to appear as a single Ethernet LAN, facilitating seamless multipoint connectivity. Both technologies optimize service provider networks by improving flexibility, bandwidth utilization, and simplifying the deployment of virtualized private networks.
Core Differences Between MPLS and VPLS
MPLS (Multiprotocol Label Switching) primarily functions as a high-performance technique for directing data through a network using label switching, focusing on IP packet forwarding efficiency and traffic engineering. VPLS (Virtual Private LAN Service) extends MPLS technology to create a Layer 2 VPN that simulates a LAN environment over a geographically dispersed network, enabling Ethernet multipoint-to-multipoint connectivity. The core difference lies in MPLS operating at Layer 3 for scalable, efficient packet forwarding, whereas VPLS operates at Layer 2, providing seamless Ethernet service across multiple sites.
How MPLS Works: Key Concepts and Components
Multiprotocol Label Switching (MPLS) operates by assigning fixed-length labels to packets, enabling efficient data forwarding along predetermined paths known as Label Switched Paths (LSPs). Key components include Label Edge Routers (LERs) that assign and remove labels at the network edges, and Label Switching Routers (LSRs) that perform label swapping within the core network to direct packets based on label information. By decoupling forwarding from routing, MPLS enhances traffic engineering, reduces latency, and supports multiple service types over a unified infrastructure.
How VPLS Operates: Architecture and Mechanisms
VPLS operates by creating a virtual Layer 2 Ethernet switch over an MPLS network, enabling geographically dispersed sites to appear as if they are on the same LAN. The architecture uses a full mesh of pseudowires among Provider Edge (PE) devices to establish Ethernet connections, supporting multipoint-to-multipoint connectivity. Key mechanisms include MAC address learning and forwarding over MPLS tunnels, ensuring transparent LAN services and scalable Layer 2 VPN deployment.
MPLS Use Cases in Enterprise Networks
MPLS (Multiprotocol Label Switching) is widely adopted in enterprise networks for its ability to provide efficient and scalable traffic engineering, ensuring low latency and high reliability for critical applications such as VoIP and video conferencing. It supports seamless integration of multiple branch offices by enabling VPN services that securely segment traffic over shared infrastructure. MPLS also facilitates Quality of Service (QoS) prioritization, enhancing performance for latency-sensitive business applications and cloud connectivity.
VPLS Applications for Multi-Site Connectivity
VPLS (Virtual Private LAN Service) enables seamless multi-site connectivity by creating a single Layer 2 broadcast domain across geographically dispersed locations, ideal for businesses requiring consistent LAN-like experience. It simplifies network management and supports real-time applications such as VoIP and video conferencing by maintaining low latency and high availability. Compared to MPLS, VPLS offers enhanced flexibility for connecting multiple sites with simplified configuration and scalable Ethernet virtual private network services.
Performance and Scalability: MPLS vs VPLS
MPLS offers superior performance with its traffic engineering capabilities and low-latency forwarding, making it ideal for high-priority, real-time applications. VPLS provides scalable Layer 2 connectivity across geographically dispersed sites but may introduce higher latency due to encapsulation and bridging overhead. Scalability in MPLS is enhanced by label stacking and hierarchical VPNs, whereas VPLS scalability can be limited by the complexity of maintaining MAC address tables and full mesh connectivity requirements.
Security Considerations for MPLS and VPLS
MPLS (Multiprotocol Label Switching) enhances security by isolating traffic through label-based forwarding, reducing exposure to unauthorized access within a service provider's core network. VPLS (Virtual Private LAN Service) extends Ethernet services over MPLS networks, requiring additional encryption and authentication measures to secure broadcast domains and prevent data interception in multi-tenant environments. Both MPLS and VPLS benefit from integrated security features like VPN segmentation and traffic engineering, but VPLS demands stricter perimeter defenses due to its Layer 2 vulnerability.
Cost and Implementation Factors
MPLS offers lower operational costs by optimizing network traffic through label switching, reducing bandwidth usage and improving scalability compared to traditional routing methods. VPLS implementation requires more complex configuration and higher initial investment due to its need for extensive MPLS infrastructure and support for multipoint Ethernet connectivity. Enterprises often choose MPLS for cost-effective, scalable WAN solutions, while VPLS suits organizations needing seamless Layer 2 VPNs despite the increased deployment complexity and expense.
Choosing Between MPLS and VPLS: Which is Right for Your Network?
Choosing between MPLS and VPLS depends on your network's scalability, performance, and connectivity needs. MPLS excels in providing efficient, high-performance routing with traffic engineering capabilities ideal for large-scale enterprise networks requiring reliable point-to-point connections. VPLS offers a simplified layer 2 VPN solution that mimics a LAN environment across geographically dispersed sites, making it suitable for businesses prioritizing seamless Ethernet connectivity and flexible multi-site interconnections.

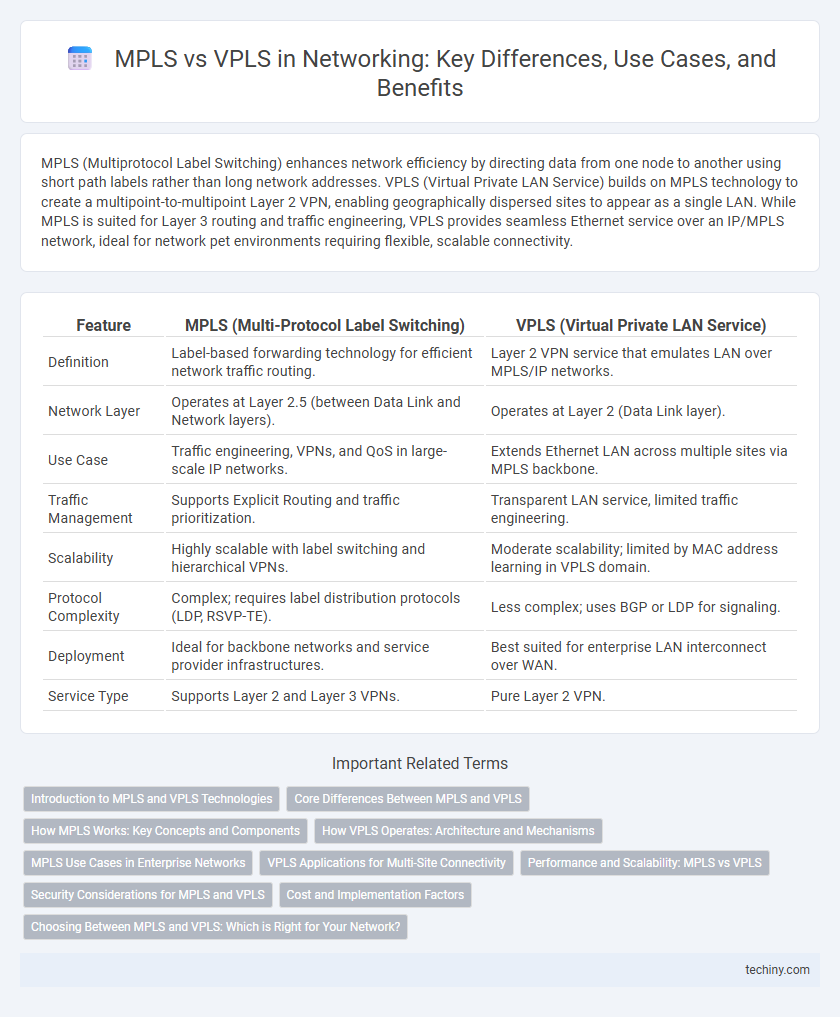

MPLS vs VPLS Infographic
