techiny.com VPNs create secure, encrypted connections over the internet, allowing remote devices to access a private network safely, ideal for secure remote work and data privacy. VLANs segment a physical network into separate logical networks, improving traffic management and reducing broadcast domains within the same infrastructure, enhancing security and efficiency in local environments. Both VPN and VLAN serve distinct purposes in networking, with VPNs focusing on secure external access and VLANs optimizing internal network segmentation.
Table of Comparison
| Feature | VPN (Virtual Private Network) | VLAN (Virtual Local Area Network) |
|---|---|---|
| Definition | Encrypted connection over the internet to secure data transmission between remote users or sites. | Logical segmentation of a physical network into multiple broadcast domains within a LAN. |
| Primary Use | Secure, remote access and privacy for users and networks over public networks. | Network segmentation to improve performance and security within a local network. |
| Scope | Wide Area Network (WAN) over public or private internet connections. | Local Area Network (LAN) within a single organization or site. |
| Security | Provides encryption, tunneling protocols (IPsec, SSL/TLS), and authentication. | Segmented traffic reduces broadcast domains but depends on additional security measures. |
| Implementation | Software or hardware-based VPN clients and gateways. | Configured on switches using 802.1Q tagging or port-based VLAN assignments. |
| Performance | Can introduce latency due to encryption and tunneling overhead. | Minimal overhead, efficient traffic management within LAN. |
| Cost | May require VPN licenses and infrastructure costs. | Uses existing LAN equipment, no extra cost for VLAN configurations. |
| Typical Protocols | IPsec, OpenVPN, SSL/TLS, L2TP. | IEEE 802.1Q VLAN tagging. |
Understanding VPN and VLAN: Core Concepts
VPN (Virtual Private Network) and VLAN (Virtual Local Area Network) are pivotal networking technologies designed to enhance security and segmentation. VPN creates encrypted tunnels over public networks, enabling secure remote access and data transmission between geographically dispersed sites. VLAN, on the other hand, segments a physical network into multiple logical networks, improving network management and traffic isolation within a local environment.
Key Differences Between VPN and VLAN
VPN (Virtual Private Network) creates secure, encrypted connections over public networks to enable remote access and protect data privacy. VLAN (Virtual Local Area Network) segments a physical network into multiple logical networks to improve traffic management and enhance security within an organization. VPN operates at the network layer to extend connectivity across different locations, while VLAN functions at the data link layer to isolate network traffic internally.
How VPNs Work: Securing Remote Connections
VPNs create secure tunnels by encrypting data transmitted between remote devices and private networks, ensuring confidentiality and integrity. They use protocols like IPsec or SSL/TLS to establish authentication and protect against unauthorized access. By masking IP addresses and routing traffic through remote servers, VPNs enable secure access to resources over public or untrusted networks.
How VLANs Function: Segmenting Local Networks
VLANs function by creating distinct broadcast domains within a single physical network, allowing segmentation of local networks into separate logical groups. Each VLAN operates as an independent subnet, enhancing traffic management and reducing congestion by isolating network segments based on function or department. This segmentation improves security and performance by limiting broadcast traffic and enabling targeted policies within the local area network.
VPN Use Cases in Modern Enterprises
VPNs enable secure remote access for employees connecting to corporate networks from any location, ensuring data encryption and privacy over public internet connections. They facilitate secure site-to-site communication between branch offices, supporting seamless data exchange and centralized resource management. VPNs also help enterprises comply with data protection regulations by safeguarding sensitive information during transmission across unsecured networks.
VLAN Applications in Network Management
VLANs enable efficient network segmentation by isolating traffic within defined broadcast domains, improving security and reducing congestion. They are commonly used in enterprise environments to separate departments, manage network resources, and enforce access controls without additional hardware. VLAN implementation enhances network scalability and simplifies policy management through logical grouping of devices across physical locations.
Security Implications: VPN vs VLAN
VPNs provide secure remote access by encrypting data traffic over public networks, effectively protecting sensitive information from interception and unauthorized access. VLANs segment a local network into separate broadcast domains, improving internal network security by isolating traffic but do not inherently encrypt data or protect against external threats. Combining VPNs and VLANs enhances overall network security by securing remote connections and enforcing strict access controls within internal network segments.
Performance Impact: Comparing VPN and VLAN
VPNs often introduce latency due to encryption and routing overhead across public networks, which can affect real-time application performance. VLANs operate at the data link layer, reducing broadcast domains and improving network efficiency with minimal latency impact. For high-performance environments, VLANs typically offer better throughput and lower delay compared to VPNs, especially when traffic remains within a local network.
Scalability Considerations for VPN and VLAN
VPN scalability relies on the capacity of encryption protocols and the performance of VPN gateways, making it suitable for expanding remote access across multiple locations without extensive physical infrastructure changes. VLAN scalability depends on the underlying network hardware and the design of the switching fabric, allowing segmentation of growing local networks but potentially facing limitations in large-scale or geographically dispersed environments. Efficient VPN deployment supports scalable, secure connectivity over public networks, while VLANs optimize intra-network traffic management within defined physical or virtual boundaries.
Choosing the Right Solution: VPN, VLAN, or Both?
Selecting between VPN and VLAN depends on the specific network requirements, where VPN offers secure remote access over public networks by encrypting data traffic, ideal for connecting dispersed users or offices. VLAN segments a physical network into multiple logical networks, enhancing internal network performance and security within the same infrastructure. Combining VPN and VLAN can optimize security and segmentation, enabling secure remote connections while maintaining internal network isolation and traffic management.

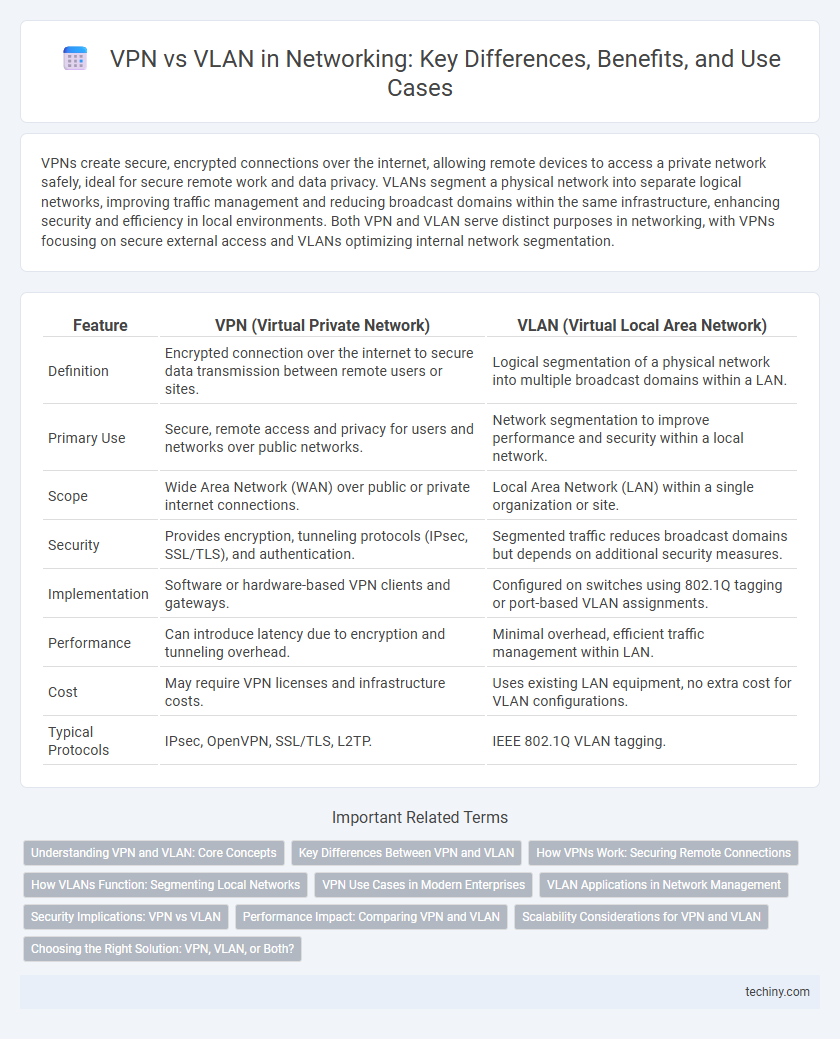

VPN vs VLAN Infographic
