techiny.com BGP excels in managing routing between large, diverse networks by using path vector protocol to ensure policy-based routing and scalability across the internet, while EIGRP operates efficiently within smaller, autonomous systems using a distance vector approach with rapid convergence and easy configuration. BGP's ability to handle multiple paths and complex policies makes it ideal for ISP-level and inter-domain routing, whereas EIGRP provides optimized performance for internal routing with features like unequal-cost load balancing and fast topology updates. The choice between BGP and EIGRP depends on network scope, size, and specific routing requirements, balancing complexity and control against simplicity and speed within an enterprise or service provider environment.
Table of Comparison
| Feature | BGP (Border Gateway Protocol) | EIGRP (Enhanced Interior Gateway Routing Protocol) |
|---|---|---|
| Protocol Type | Path vector exterior gateway protocol | Distance vector interior gateway protocol |
| Use Case | Inter-AS routing (Internet backbone) | Intra-AS routing (within an autonomous system) |
| Routing Metric | Path attributes (AS path, next-hop, MED) | Bandwidth, delay, load, reliability |
| Convergence Speed | Slower, depends on policy and path selection | Fast, using DUAL algorithm |
| Scalability | Highly scalable, supports thousands of routes | Moderate scalability, best for medium-sized networks |
| Protocol Type | TCP-based (Port 179) | Proprietary Cisco protocol (IP protocol 88) |
| Classful/Classless | Classless | Classless |
| Load Balancing | Supports equal and uneven-cost load balancing | Supports equal and unequal-cost load balancing |
| Authentication | Supports MD5 and TCP-AO | Supports MD5 |
Introduction to BGP and EIGRP
Border Gateway Protocol (BGP) is an interdomain routing protocol designed for exchanging routing information between autonomous systems on the internet, emphasizing scalability and policy-based routing. Enhanced Interior Gateway Routing Protocol (EIGRP) operates within a single autonomous system, providing fast convergence and efficient routing through a hybrid of distance-vector and link-state features. Both protocols optimize network performance but serve distinct roles: BGP manages global routing across diverse networks, while EIGRP facilitates dynamic routing in enterprise environments.
Key Differences Between BGP and EIGRP
BGP (Border Gateway Protocol) is an inter-domain routing protocol designed for scalability across the internet, relying on path vector mechanisms and policies to manage routing between autonomous systems. EIGRP (Enhanced Interior Gateway Routing Protocol) is a Cisco proprietary interior gateway protocol optimized for fast convergence within a single autonomous system using a distance-vector/advanced hybrid approach. Key differences include BGP's use of TCP port 179 for reliable connections versus EIGRP's reliance on multicast for neighbor discovery, along with BGP's policy-driven route selection compared to EIGRP's metric based on bandwidth, delay, load, and reliability.
Protocol Fundamentals: BGP Overview
Border Gateway Protocol (BGP) is an inter-domain routing protocol designed to exchange routing information between autonomous systems (AS) on the internet, using path vector mechanisms. It relies on TCP port 179 for reliable communication and maintains a routing table based on policies and attributes such as AS path, next-hop, and multi-exit discriminator (MED). BGP's scalability and policy-based routing distinguish it from EIGRP, which is primarily a distance-vector routing protocol optimized for internal network routing within a single AS.
Protocol Fundamentals: EIGRP Overview
EIGRP (Enhanced Interior Gateway Routing Protocol) is a Cisco proprietary advanced distance-vector routing protocol that uses Diffusing Update Algorithm (DUAL) to ensure loop-free and efficient path computation. It supports rapid convergence and provides unequal-cost load balancing by calculating the best route based on bandwidth, delay, reliability, and load metrics. Unlike BGP, which is an inter-domain protocol designed for routing between autonomous systems, EIGRP operates primarily within a single autonomous system for interior routing.
Routing Protocol Types: Exterior vs. Interior
BGP (Border Gateway Protocol) operates as an Exterior Gateway Protocol (EGP) designed to route data between different autonomous systems on the internet, emphasizing path vector routing and scalability for large networks. EIGRP (Enhanced Interior Gateway Routing Protocol) functions as an Interior Gateway Protocol (IGP) optimized for routing within a single autonomous system, offering rapid convergence and efficient use of bandwidth through its hybrid distance-vector algorithm. The primary distinction lies in BGP's role in inter-domain routing across multiple networks versus EIGRP's focus on intra-domain routing within a local enterprise network.
Scalability and Network Design Considerations
BGP excels in scalability for large, diverse networks by supporting extensive routing tables and policy-based routing, making it ideal for Internet-scale and multi-AS environments. EIGRP offers faster convergence and simpler configuration suited for smaller to medium enterprise networks but lacks the scalability needed for global deployments. Network design leveraging BGP should account for complex path selection and administrative overhead, whereas EIGRP requires careful hierarchical design to avoid routing loops and maintain efficient resource utilization.
Configuration and Management Complexity
BGP configuration demands thorough understanding of autonomous systems, route policies, and path attributes, making it inherently complex and suited for large-scale, inter-domain routing. EIGRP offers a more straightforward setup with automatic summarization and simpler metric calculations, ideal for intra-domain environments. Managing BGP requires ongoing policy adjustments and route filtering to prevent routing loops, whereas EIGRP's management involves tuning parameters like delay and bandwidth to optimize convergence.
Performance and Convergence Speed
BGP typically offers scalability and robust policy control, making it suitable for large-scale networks, but it has slower convergence times due to its path vector protocol nature. EIGRP leverages its distance vector protocol with DUAL algorithm to achieve faster convergence and efficient route recalculation in medium to large enterprise networks. Performance-wise, EIGRP's rapid convergence minimizes downtime during topology changes, whereas BGP prioritizes stability and scalability over speed in route updates.
Use Cases: When to Choose BGP or EIGRP
BGP is ideal for large-scale networks, such as ISPs and data centers, requiring inter-domain routing and policy-based path selection, while EIGRP excels in smaller to medium-sized enterprise networks with rapid convergence and simplified configuration. Use BGP when managing multiple autonomous systems and needing scalable, internet-wide routing, but prefer EIGRP for internal routing within a single organization where fast adaptability and ease of implementation are priorities. Network architects should evaluate factors like network size, administrative control, and route complexity to determine the optimal choice between BGP and EIGRP.
Security Implications of BGP and EIGRP
BGP operates over TCP, allowing for robust session authentication using MD5 or TCP-AO, which enhances its security against session hijacking and spoofing, whereas EIGRP primarily relies on plain MD5 authentication for neighbor verification. BGP's widespread use in the internet backbone exposes it to risks like route hijacking and prefix injection, demanding careful implementation of filtering and prefix validation to secure routing information. EIGRP, typically used in more controlled enterprise environments, faces less exposure but requires rigorous key management and regular authentication updates to prevent unauthorized route advertisement within an autonomous system.

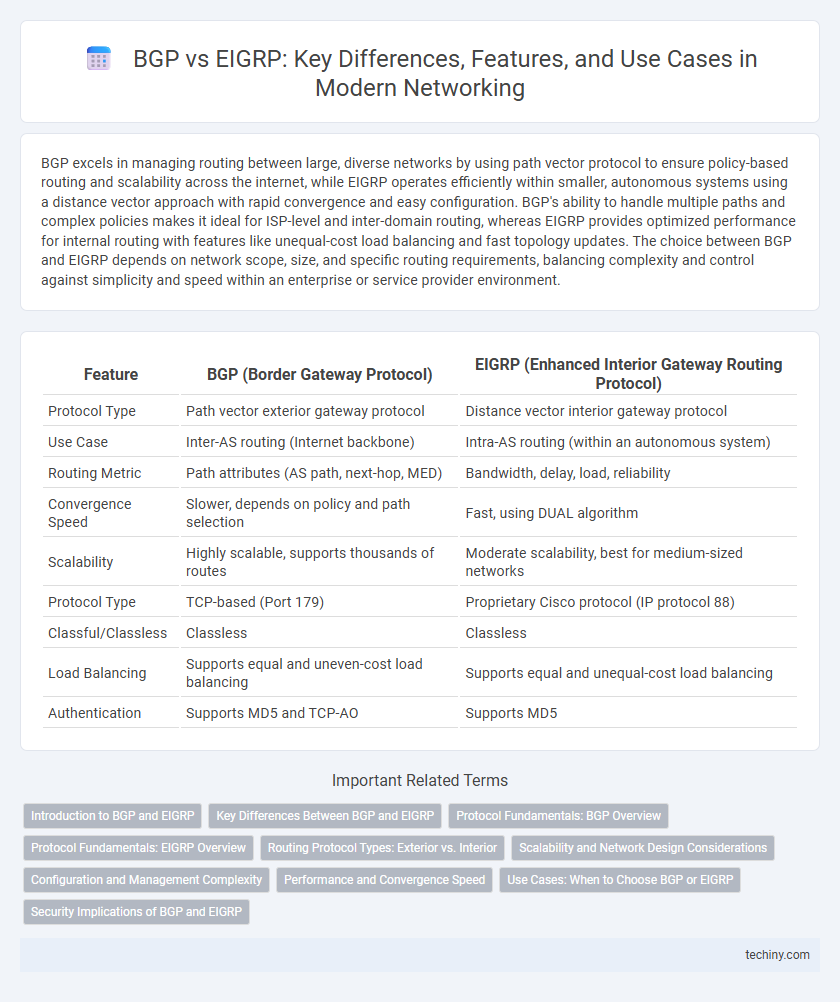

BGP vs EIGRP Infographic
