techiny.com EIGRP offers faster convergence and better scalability compared to RIP, making it ideal for larger and more complex networks. RIP relies on hop count as its sole metric and has a maximum limit of 15 hops, which can restrict network growth. EIGRP uses a composite metric including bandwidth and delay, enabling more efficient and reliable routing decisions in dynamic environments.
Table of Comparison
| Feature | EIGRP | RIP |
|---|---|---|
| Protocol Type | Advanced Distance Vector | Distance Vector |
| Metric | Composite (Bandwidth, Delay, Load, Reliability) | Hop Count |
| Maximum Hop Count | 224 | 15 |
| Convergence Speed | Fast | Slow |
| Algorithm | DUAL (Diffusing Update Algorithm) | Bellman-Ford |
| Update Type | Partial, Triggered | Periodic (every 30 seconds) |
| Classful/Classless | Classless | Classful |
| Support for VLSM | Yes | No |
| Load Balancing | Equal and Unequal Cost | Equal Cost Only |
| Network Size Suitability | Medium to Large | Small |
| Scalability | High | Low |
Overview of EIGRP and RIP
EIGRP (Enhanced Interior Gateway Routing Protocol) is a Cisco proprietary advanced distance-vector routing protocol known for fast convergence, scalability, and efficient use of bandwidth through its metric based on bandwidth, delay, load, and reliability. RIP (Routing Information Protocol) is an older, simpler distance-vector protocol that uses hop count as its metric, with a maximum limit of 15 hops, making it suitable for smaller, less complex networks. EIGRP's use of DUAL (Diffusing Update Algorithm) allows for rapid route recalculation and loop prevention, while RIP relies on periodic updates every 30 seconds, leading to slower convergence and potential routing loops.
Key Features Comparison
EIGRP offers faster convergence and uses Diffusing Update Algorithm (DUAL) to ensure loop-free routing, while RIP relies on hop count with a maximum limit of 15, causing slower convergence and potential routing loops. EIGRP supports variable-length subnet masking (VLSM), supports unequal-cost load balancing, and advertises only incremental updates, whereas RIP sends full routing table updates periodically. Scalability and efficiency in large or complex networks make EIGRP more suitable compared to RIP's simplicity and limited metric based on hop count.
Protocol Operation Mechanisms
EIGRP uses a dual algorithm combining distance vector and link-state features, utilizing Diffusing Update Algorithm (DUAL) for loop-free and fast convergence by maintaining topology tables and feasible successors. RIP operates by periodically broadcasting entire routing tables using hop count as the metric, with a maximum limit of 15 hops, leading to slower convergence and potential routing loops. EIGRP supports multicasting updates only when necessary, whereas RIP relies on frequent full updates, impacting bandwidth efficiency.
Routing Algorithm Differences
EIGRP utilizes a hybrid routing algorithm combining distance vector and link-state features, employing the Diffusing Update Algorithm (DUAL) for rapid convergence and loop-free routing. RIP relies on the Bellman-Ford algorithm, which uses hop count as the sole metric, leading to slower convergence and susceptibility to routing loops. EIGRP supports variable-length subnet masking (VLSM) and provides more efficient routing updates, whereas RIP sends full routing tables at fixed intervals.
Scalability and Network Performance
EIGRP offers superior scalability compared to RIP due to its efficient use of bandwidth, faster convergence times, and support for larger, more complex networks with multiple routes. RIP's scalability is limited by its maximum hop count of 15 and slower convergence, making it less suitable for extensive networks. Network performance under EIGRP benefits from advanced metrics including bandwidth, delay, load, and reliability, optimizing routing decisions, whereas RIP relies solely on hop count, which can lead to suboptimal routing paths.
Convergence Speed
EIGRP offers significantly faster convergence speeds compared to RIP, often converging in milliseconds to seconds due to its advanced DUAL algorithm. RIP relies on periodic updates every 30 seconds and a maximum hop count of 15, resulting in slower network adjustments and potential downtime. EIGRP's efficient use of triggered updates and incremental topology changes enables rapid failure recovery and reduced network disruption.
Resource Utilization and Efficiency
EIGRP utilizes bandwidth and CPU resources more efficiently than RIP through its advanced metric computation and incremental updates, reducing unnecessary network traffic. RIP broadcasts the entire routing table every 30 seconds, consuming more bandwidth and processing power, which leads to higher overhead in larger networks. EIGRP's efficient use of Diffusing Update Algorithm (DUAL) allows for faster convergence with minimal resource consumption compared to RIP's simpler distance-vector approach.
Configuration and Management Ease
EIGRP offers simpler configuration and management due to its use of classless routing and advanced algorithms, reducing manual tuning compared to RIP's classful routing and hop count limitations. EIGRP supports automatic route summarization and neighbor discovery, streamlining network topology adjustments without extensive manual intervention. RIP requires frequent manual updates and is less scalable, making EIGRP more efficient for complex network environments.
Security Capabilities
EIGRP (Enhanced Interior Gateway Routing Protocol) offers superior security features compared to RIP (Routing Information Protocol), including support for MD5 authentication to ensure the integrity and authenticity of routing updates. RIP lacks robust authentication mechanisms, making it more vulnerable to attacks such as route poisoning and spoofing. Network administrators prefer EIGRP for environments requiring enhanced security and reliable routing protocol protection.
Use Cases and Best Practices
EIGRP is ideal for complex, large-scale enterprise networks requiring rapid convergence and efficient bandwidth use due to its advanced metric-based path selection and support for VLSMs, while RIP suits smaller, simple networks with limited routing requirements where ease of configuration and compatibility are prioritized. Best practices recommend using EIGRP in environments demanding scalability and fast network recovery, leveraging its DUAL algorithm, whereas RIP is best confined to legacy systems or situations needing minimal routing overhead. Network administrators should assess network size, traffic patterns, and device capabilities before selecting the protocol to ensure optimal performance and resource utilization.

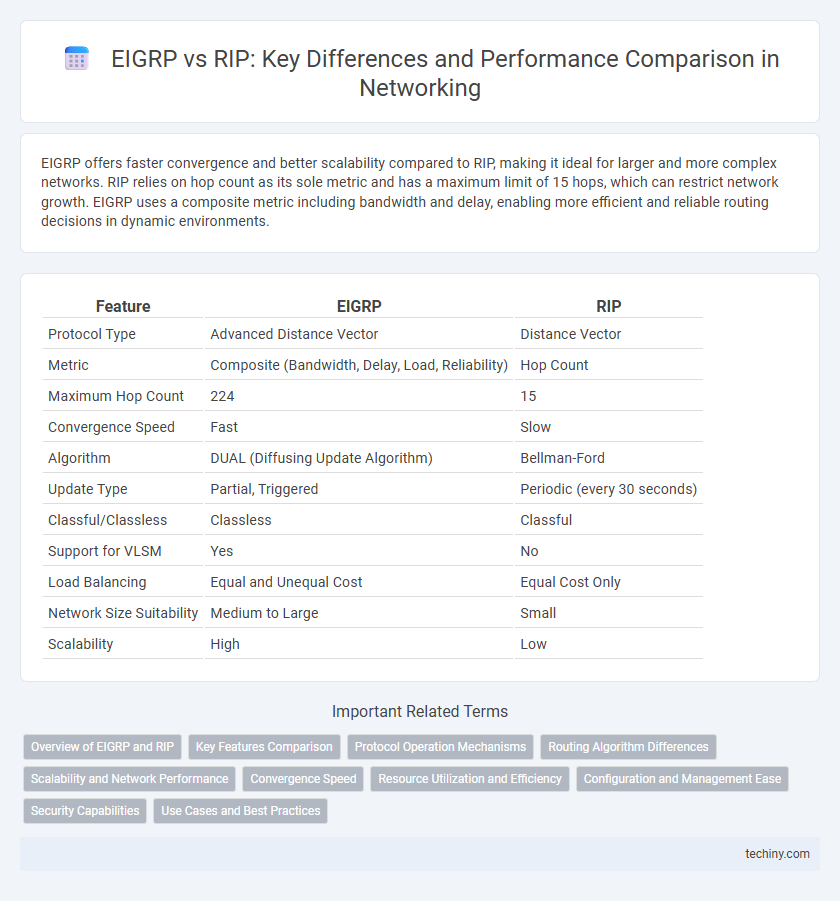

EIGRP vs RIP Infographic
