techiny.com Network Address Translation (NAT) allows multiple devices on a private network to share a single public IP address by mapping private IP addresses to a public one. Port Address Translation (PAT), a type of NAT, extends this functionality by differentiating sessions through unique port numbers, enabling multiple connections to use the same public IP simultaneously. PAT is essential in networking pet environments to efficiently manage limited public IP addresses while maintaining distinct device communication.
Table of Comparison
| Feature | NAT (Network Address Translation) | PAT (Port Address Translation) |
|---|---|---|
| Definition | Maps private IP addresses to a single or multiple public IP addresses. | Maps multiple private IP addresses to a single public IP using unique port numbers. |
| IP Address Usage | Requires multiple public IP addresses for multiple devices. | Uses one public IP address for many devices via port differentiation. |
| Port Translation | No port translation; only IP address changes. | Translates both IP addresses and port numbers. |
| Scalability | Less scalable due to limited public IP addresses. | Highly scalable; supports many devices on a single IP. |
| Common Use Case | Used for simple IP address mapping in smaller networks. | Widely used in home and enterprise networks to conserve IPs. |
| Security | Provides basic security by hiding internal IPs. | Enhances security by using port mapping to control traffic. |
Introduction to NAT and PAT
Network Address Translation (NAT) enables multiple devices on a local network to share a single public IP address by mapping private IP addresses to the public one, enhancing IP address conservation and security. Port Address Translation (PAT), a type of NAT, translates multiple private IP addresses to a single public IP address by assigning unique port numbers, allowing many devices to maintain simultaneous internet connections. Both NAT and PAT are fundamental in managing IP address allocation and facilitating communication between private networks and the internet.
Core Concepts: How NAT Works
Network Address Translation (NAT) modifies IP address information in packet headers while they are in transit across a traffic routing device, enabling multiple devices on a private network to share a single public IP address. Port Address Translation (PAT), a type of NAT, extends this functionality by translating multiple private IP addresses to a single public IP address with a unique port number for each session, allowing efficient management of multiple connections. NAT operates by rewriting the source or destination IP addresses, while PAT combines this with port number translation to support many simultaneous sessions using one public IP.
Understanding PAT: Key Principles
Port Address Translation (PAT) is a type of Network Address Translation (NAT) that maps multiple private IP addresses to a single public IP address using unique port numbers. This technique conserves IP addresses by allowing multiple devices on a local network to share one public IP for external communication. PAT operates by modifying the source port number of outgoing packets, enabling return traffic to be correctly routed to the originating device within the private network.
Differences Between NAT and PAT
Network Address Translation (NAT) maps multiple private IP addresses to a single public IP address, maintaining a one-to-one correspondence for each internal device. Port Address Translation (PAT), a type of NAT, translates multiple private IP addresses to a single public IP address by using different port numbers to differentiate each session. The key difference lies in PAT's ability to multiplex many internal connections through one public IP by tracking port numbers, whereas basic NAT requires unique public IPs for each internal device.
Benefits of Using NAT in Networking
Network Address Translation (NAT) enhances security by masking internal IP addresses from external networks, reducing vulnerability to attacks. It conserves public IP addresses by allowing multiple devices within a private network to share a single public IP address. NAT simplifies network administration and enables seamless communication between private networks and the internet without requiring a unique public IP for each device.
Advantages of PAT for Network Security
Port Address Translation (PAT) enhances network security by allowing multiple devices on a local network to share a single public IP address, reducing the exposure of internal IP addresses to external threats. PAT effectively masks internal host identities, making it difficult for attackers to target specific devices within the private network. This dynamic port mapping also limits unsolicited inbound traffic, creating a layer of defense against unauthorized access and potential cyberattacks.
Common Use Cases: NAT vs PAT
NAT (Network Address Translation) is commonly used to map private IP addresses to a single public IP address for outbound internet access, ideal for small business or home networks requiring basic IP address conservation. PAT (Port Address Translation), a type of NAT, extends this by distinguishing multiple connections through unique port numbers, making it suitable for larger networks that require simultaneous multiple device access to external networks using a single public IP. Enterprise environments often deploy PAT to efficiently manage numerous internal hosts behind one public IP, enhancing security and resource optimization in high-demand networking scenarios.
Implementation Best Practices
Implementing NAT (Network Address Translation) requires careful management of IP address pools to avoid conflicts and ensure scalability, while PAT (Port Address Translation) optimizes resource usage by mapping multiple private addresses to a single public IP with distinct port numbers. Best practices include regularly updating NAT tables, using secure ACLs (Access Control Lists) to control traffic, and monitoring translation performance to prevent latency and connection drops. Employing automated scripts for configuration and maintaining comprehensive logs enhances troubleshooting and network reliability in complex environments.
Troubleshooting NAT and PAT Issues
Troubleshooting NAT and PAT issues often involves verifying correct IP address translations and ensuring that port mappings correspond to the intended internal devices. Common problems include overlapping IP address spaces, misconfigured access control lists (ACLs), and expired NAT translations causing connection drops. Using network diagnostic tools like traceroute, ping, and show commands on routers helps identify translation failures and connectivity bottlenecks.
Future Trends in IP Address Translation
Future trends in IP address translation emphasize the integration of more advanced Network Address Translation (NAT) and Port Address Translation (PAT) techniques to support the exponential growth of connected devices. Innovations such as automated NAT configurations and enhanced security features aim to optimize IPv6 adoption while maintaining compatibility with legacy IPv4 systems. Emerging solutions prioritize scalability, improved address allocation efficiency, and seamless transition mechanisms to accommodate the evolving demands of Internet of Things (IoT) and 5G networks.

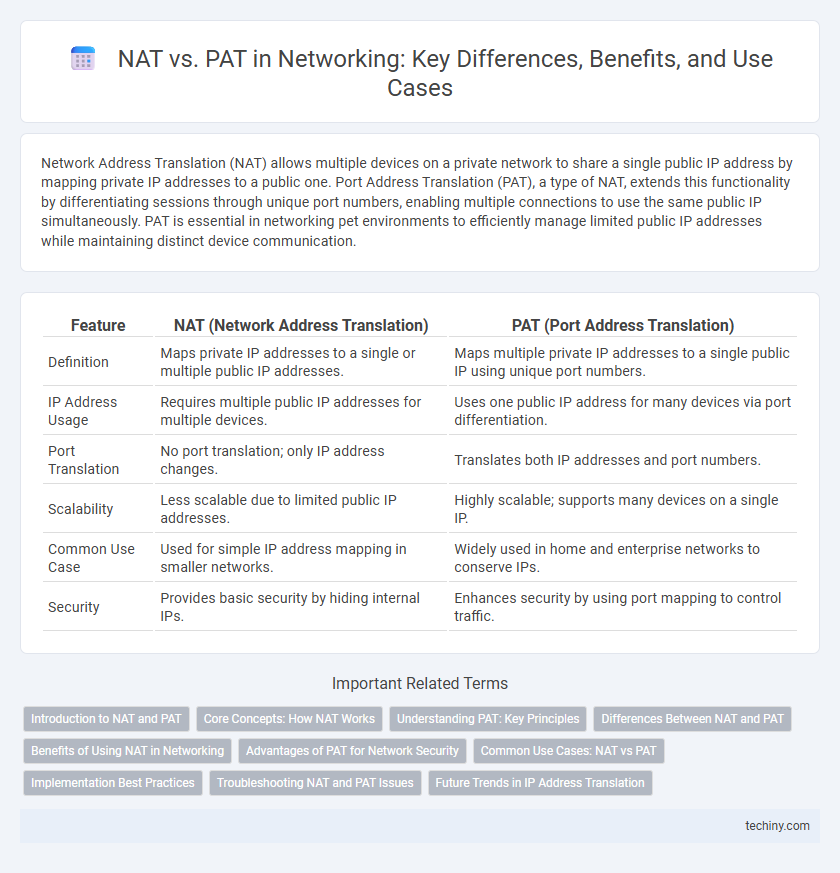

NAT vs PAT Infographic
