techiny.com 802.1Q defines VLAN tagging to segment and manage network traffic by inserting a tag into Ethernet frames, enabling multiple VLANs on a single physical link. 802.1P provides prioritization by adding a 3-bit priority code point (PCP) within the 802.1Q tag, facilitating Quality of Service (QoS) for traffic classification. Together, these standards optimize traffic segregation and QoS in Ethernet networks by combining VLAN identification with packet prioritization.
Table of Comparison
| Feature | 802.1Q | 802.1P |
|---|---|---|
| Definition | Standard for VLAN tagging in Ethernet frames | Standard for traffic prioritization using VLAN tags |
| Function | Inserts 4-byte VLAN tags to identify VLAN membership | Uses 3-bit Priority Code Point (PCP) for QoS prioritization |
| Purpose | Segregate network into multiple VLANs | Prioritize network traffic for quality of service |
| Tag Location | Between Ethernet source MAC and EtherType fields | Part of the 802.1Q VLAN tag |
| Priority Levels | Not specified by 802.1Q alone | 8 priority levels (0-7) |
| Key Use Cases | Network segmentation and VLAN management | Traffic shaping and QoS in VLANs |
| Related Standards | IEEE 802.1Q | IEEE 802.1P |
Overview of IEEE 802.1Q and 802.1P
IEEE 802.1Q defines the VLAN tagging protocol that inserts a 4-byte tag into Ethernet frames, enabling multiple virtual LANs to coexist on the same physical network infrastructure. IEEE 802.1P specifies the prioritization mechanism within the 802.1Q tag, using a 3-bit Priority Code Point (PCP) field to classify traffic into eight priority levels for Quality of Service (QoS). Together, 802.1Q and 802.1P facilitate efficient network segmentation and traffic prioritization to optimize data flow and enhance performance in switched Ethernet networks.
Key Differences Between 802.1Q and 802.1P
802.1Q is a VLAN tagging protocol that inserts a 4-byte tag into Ethernet frames to identify VLAN membership, enabling network segmentation and traffic isolation. In contrast, 802.1P focuses on Quality of Service (QoS) by prioritizing traffic through a 3-bit Priority Code Point (PCP) in the VLAN tag, allowing for traffic class differentiation and improved latency for critical data. While 802.1Q handles VLAN identification, 802.1P manages traffic prioritization within those VLANs, both essential for efficient LAN traffic management.
VLAN Tagging Explained: The Role of 802.1Q
802.1Q is a networking standard that defines VLAN tagging by inserting a 4-byte VLAN tag into Ethernet frames, enabling multiple virtual LANs to coexist on a single physical network. This VLAN tag includes a 12-bit VLAN identifier (VID) that specifies the VLAN membership, facilitating traffic segregation and improved network management. In contrast, 802.1P focuses on Layer 2 priority tagging within the VLAN tag for Quality of Service (QoS), allowing prioritization of network traffic without altering VLAN membership information.
Traffic Prioritization and QoS: Inside 802.1P
802.1P defines a 3-bit Priority Code Point (PCP) within the VLAN tag to enable traffic prioritization at Layer 2, supporting up to eight priority levels for Quality of Service (QoS). This prioritization allows switches to manage congestion and ensure timely delivery of critical traffic such as voice and video. While 802.1Q provides VLAN tagging to segregate traffic, 802.1P is specifically designed to mark frames for QoS policies within those VLANs.
Frame Structure Comparison: 802.1Q vs 802.1P
802.1Q introduces a 4-byte VLAN tag inserted into the Ethernet frame header between the Source MAC address and the EtherType fields, consisting of a 2-byte Tag Protocol Identifier (TPID) and a 2-byte Tag Control Information (TCI) which includes the VLAN ID and priority bits. In contrast, 802.1P uses only the 3-bit Priority Code Point (PCP) field within the 802.1Q tag's TCI to provide Layer 2 traffic prioritization without VLAN tagging capabilities. The key difference in frame structure lies in 802.1Q's inclusion of VLAN identification alongside priority, while 802.1P focuses solely on priority marking within existing VLAN-tagged frames.
Use Cases: When to Use 802.1Q or 802.1P
802.1Q is primarily used for VLAN tagging, enabling network segmentation by inserting VLAN identifiers into Ethernet frames for efficient traffic management in large networks. 802.1P focuses on traffic prioritization by adding priority codes to frames, ensuring Quality of Service (QoS) for latency-sensitive applications like voice and video transmission. Use 802.1Q when separating and managing VLAN traffic, while 802.1P is ideal for prioritizing critical traffic within those VLANs.
Configuration in Switches: 802.1Q and 802.1P
802.1Q configuration in switches involves creating VLAN tags to segment network traffic by inserting a 4-byte tag into Ethernet frames, enabling multiple VLANs to share the same physical switch port. 802.1P configuration focuses on prioritizing traffic by assigning a 3-bit priority value within the VLAN tag, allowing switches to prioritize frames for Quality of Service (QoS) management. Both standards are configured on managed switches through VLAN and QoS settings, where 802.1Q primarily divides traffic and 802.1P enforces traffic prioritization within those VLANs.
Interoperability and Compatibility Issues
802.1Q defines VLAN tagging to enable multiple VLANs on a single physical link, while 802.1P provides Quality of Service (QoS) through priority tagging within the VLAN tag. Interoperability challenges arise when devices support one standard but not the other, causing inconsistent handling of VLAN IDs or priority bits and leading to packet loss or misclassification. Compatibility issues often occur in mixed vendor environments where some switches recognize only 802.1Q VLAN tags without prioritization, resulting in degraded network performance and QoS enforcement failures.
Security Considerations for 802.1Q and 802.1P
802.1Q implements VLAN tagging to segment network traffic, enhancing security by isolating broadcast domains and preventing unauthorized access across VLANs. 802.1P introduces priority tagging for Quality of Service (QoS), which can be exploited if priority bits are manipulated, potentially leading to denial-of-service attacks or traffic interception. Robust security configurations, including proper VLAN design, tagging authentication, and monitoring mechanisms, are critical to mitigate risks associated with VLAN hopping and priority tag tampering in 802.1Q and 802.1P implementations.
Future Trends in VLAN and QoS Standards
802.1Q continues to evolve with enhancements in VLAN scalability and support for multi-tenancy in cloud architectures, enabling more efficient network segmentation in large-scale deployments. Meanwhile, 802.1P's priority tagging is being integrated with emerging Quality of Service (QoS) frameworks to ensure low latency for real-time applications like 5G and IoT networks. Future trends emphasize harmonizing VLAN tagging and priority mechanisms to support dynamic, software-defined networking (SDN) environments and improved traffic management for next-generation broadband services.

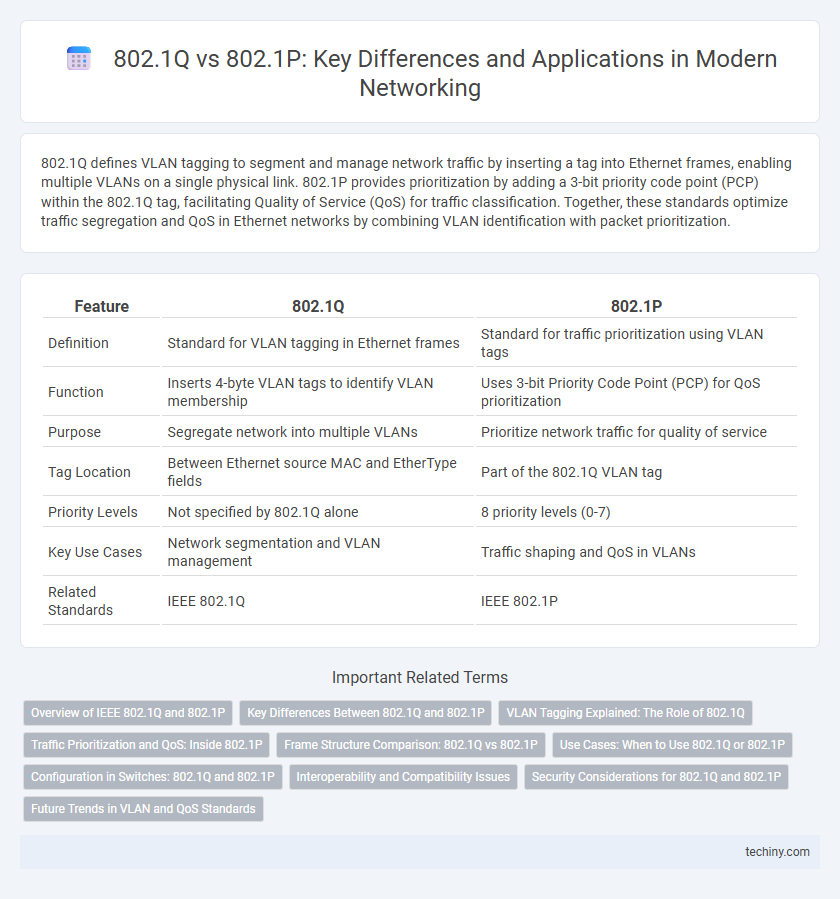

802.1Q vs 802.1P Infographic
