techiny.com DTE (Data Terminal Equipment) refers to devices like computers or routers that serve as data sources or destinations, while DCE (Data Circuit-terminating Equipment) includes devices such as modems or switches responsible for establishing, maintaining, and terminating the data communication link. The primary difference lies in their roles, where DTE generates or receives data and DCE provides the necessary interface for signal transmission over communication lines. Proper understanding of DTE and DCE is crucial for configuring serial connections in networking pets to ensure seamless data exchange.
Table of Comparison
| Feature | DTE (Data Terminal Equipment) | DCE (Data Circuit-terminating Equipment) |
|---|---|---|
| Role | Source or destination of data | Provides data transmission and connection |
| Function | Generates and consumes data | Establishes, maintains, and terminates the communication link |
| Examples | Computer, router, terminal | Modem, CSU/DSU, hub |
| Connection Interface | Uses a male connector (usually) | Uses a female connector (usually) |
| Signal Direction | Transmits data out, receives clock signal | Receives data in, provides clock signal |
| Clocking | Clock source: Receives clock | Clock source: Generates clock |
| Standards | Defined by ITU-T V-series, RS-232 | Defined by ITU-T V-series, RS-232 |
Understanding DTE and DCE: Core Definitions
Data Terminal Equipment (DTE) refers to devices like computers or routers that serve as data sources or destinations within a network. Data Circuit-terminating Equipment (DCE) includes devices such as modems or network interface units that provide the interface and clocking necessary for data transmission between DTE devices. Understanding the distinction between DTE and DCE is essential for configuring proper communication links and ensuring accurate signal timing in serial data exchanges.
Key Differences Between DTE and DCE Devices
DTE (Data Terminal Equipment) devices serve as data sources or destinations, typically end-user equipment like computers or routers, while DCE (Data Circuit-terminating Equipment) devices provide the actual communication interface, such as modems or CSU/DSUs. The core difference lies in signal direction and timing: DTE devices generate and consume data signals, whereas DCE devices establish, maintain, and terminate the communication link, often supplying the clocking signal required for synchronization. Interface roles and connector types also vary, with DTE using female connectors and DCE using male connectors, ensuring proper data flow and network integrity.
Common Examples of DTE and DCE in Networks
Data Terminal Equipment (DTE) commonly includes devices such as computers, routers, and terminals that serve as data sources or destinations in a network. Data Circuit-terminating Equipment (DCE) typically consists of modems, switches, and multiplexers that provide the necessary signal conversion and timing for data transmission. In serial communication, a computer (DTE) connects to a modem (DCE) to establish a network connection, demonstrating their distinct but complementary roles.
Roles of DTE and DCE in Data Communication
In data communication, the Data Terminal Equipment (DTE) serves as the source or destination device, such as computers or routers, responsible for generating, sending, and receiving data. The Data Circuit-terminating Equipment (DCE) acts as the intermediary device, like modems or network switches, facilitating signal conversion and synchronization to enable transmission over communication lines. DTE interfaces with DCE to establish communication sessions and maintain data flow control across networks.
DTE-DCE Interface Standards: RS-232, V.35, and More
DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) interface standards such as RS-232, V.35, and others define the electrical and mechanical characteristics for serial communication between devices. RS-232 is widely used for short-distance communication with voltages ranging from +-3 to +-15 volts, while V.35 supports higher data rates and longer distances, typically used in WAN connections. These standards ensure compatibility and proper signal timing between DTE devices like computers and DCE devices such as modems or routers.
Cable Wiring and Pin Configuration for DTE vs DCE
DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) devices differ significantly in cable wiring and pin configuration, impacting their connectivity in serial communication. DTE devices typically transmit data on pin 2 and receive on pin 3, whereas DCE devices reverse this configuration, transmitting on pin 3 and receiving on pin 2, which necessitates the use of straight-through or crossover cables accordingly. Understanding the RS-232 pin assignment is crucial for ensuring proper cable wiring to achieve functional communication between DTE and DCE, especially in setups involving routers, modems, or serial consoles.
Identifying DTE and DCE in Real-World Setups
In real-world networking setups, Data Terminal Equipment (DTE) typically refers to end devices like computers, routers, and terminals that generate or consume data, while Data Circuit-terminating Equipment (DCE) includes devices such as modems, CSU/DSUs, and network switches responsible for providing the clocking and signal conversion needed for communication. Identifying DTE and DCE involves examining cable types and connector pins; DTE devices usually have male connectors transmitting data, whereas DCE devices have female connectors receiving data. Recognizing these roles ensures proper cable configuration, particularly with crossover or straight-through cables, to enable seamless data transmission across wide area networks (WANs) and serial interfaces.
DTE and DCE Handshaking Mechanisms
DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) utilize handshaking mechanisms to establish and maintain synchronized communication in serial interfaces. DTE devices generate and respond to control signals like RTS (Request to Send) and CTS (Clear to Send), while DCE devices interpret these signals to manage data flow, ensuring error-free transmission. This coordinated handshaking allows seamless data exchange crucial for network efficiency and reliability.
Troubleshooting DTE-DCE Connectivity Issues
Troubleshooting DTE-DCE connectivity issues primarily involves verifying cable types, ensuring correct pin configurations, and confirming interface settings such as clock rate on the DCE device. Misalignment in Data Terminal Equipment (DTE) and Data Circuit-terminating Equipment (DCE) configurations often results in link failures, requiring checks on physical layer integrity and interface parameters. Proper identification of signal direction and synchronization settings can resolve common DTE-DCE transmission problems and restore effective network communication.
Future Trends: The Evolution of DTE and DCE in Modern Networking
Future trends in networking show the evolution of DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) increasingly merging with software-defined networking (SDN) and network function virtualization (NFV). DTE devices are expected to integrate advanced automation and AI-driven capabilities, enhancing data processing and transmission efficiency. Meanwhile, DCE components will evolve towards smarter, cloud-based infrastructures that facilitate seamless connectivity and higher bandwidth scalability.

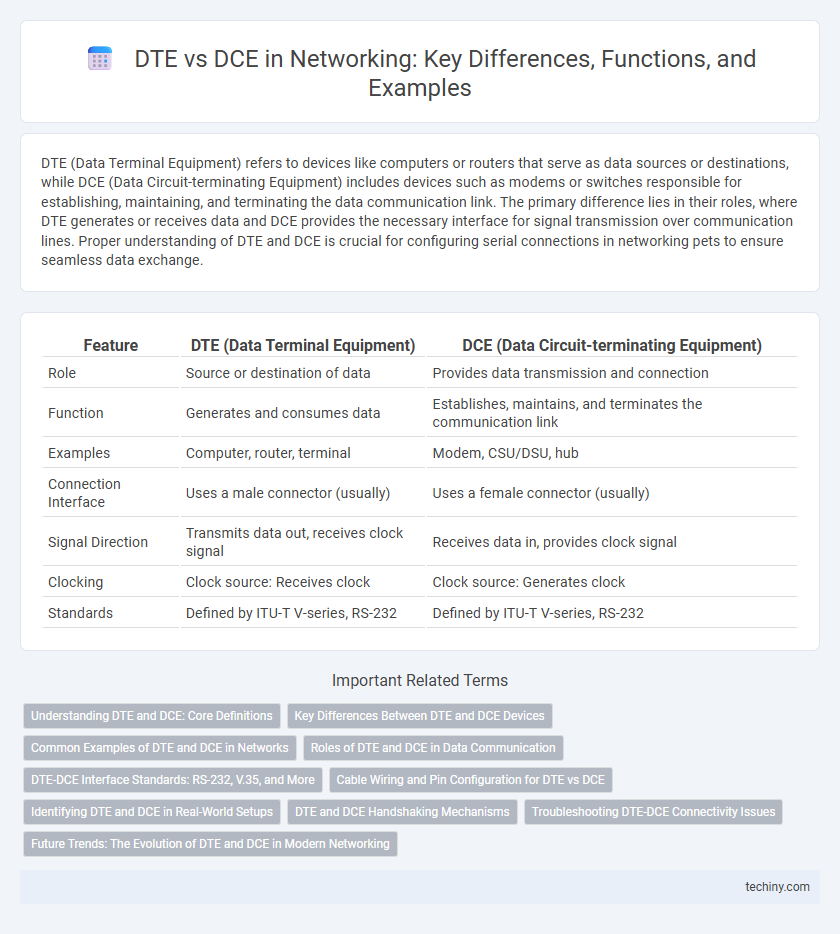

DTE vs DCE Infographic
