techiny.com Layer 2 switches operate primarily at the data link layer, using MAC addresses to forward frames within the same VLAN, making them efficient for simple network segmentation and local traffic management. Layer 3 switches combine the functions of a router and a switch by handling packet routing based on IP addresses, enabling inter-VLAN routing and more advanced traffic control within larger or more complex networks. Choosing between a Layer 2 and Layer 3 switch depends on the network design needs, where Layer 2 switches suffice for basic connectivity and Layer 3 switches support enhanced network routing and scalability.
Table of Comparison
| Feature | Layer 2 Switch | Layer 3 Switch |
|---|---|---|
| Function | Data Link Layer switching (MAC address based) | Network Layer routing (IP address based) |
| Primary Role | Forward frames within the same VLAN | Route packets between VLANs or subnets |
| Routing Capability | None (rely on external router) | Integrated routing functionality |
| Layer Operation | Layer 2 (Data Link Layer) | Layer 3 (Network Layer) |
| VLAN Handling | Supports VLAN tagging and segmentation | Supports VLANs and performs inter-VLAN routing |
| Performance | Higher frame switching speed within LAN | Handles both switching and routing, may have slightly higher latency |
| Use Case | Small networks or simple LAN segmentation | Large networks requiring inter-VLAN communication and routing |
| Cost | Lower cost | Higher cost due to added routing features |
Introduction to Layer 2 and Layer 3 Switches
Layer 2 switches operate at the Data Link layer, focusing on MAC address-based forwarding within the same VLAN to efficiently manage local network traffic. Layer 3 switches combine Layer 2 switching functions with routing capabilities at the Network layer, enabling inter-VLAN communication and IP packet forwarding. These devices optimize network segmentation and performance by integrating switching and routing processes.
Key Differences Between Layer 2 and Layer 3 Switches
Layer 2 switches operate at the data link layer using MAC addresses to forward frames within the same VLAN, enabling efficient local network segmentation. Layer 3 switches perform routing functions by processing IP addresses to route packets between different VLANs or subnets, combining switching speed with Layer 3 routing capabilities. The primary difference lies in Layer 2 switches focusing on switching based on MAC addresses, while Layer 3 switches incorporate routing protocols for inter-VLAN communication and advanced network traffic management.
How Layer 2 Switching Works
Layer 2 switching operates by using MAC address tables to forward data frames within the same VLAN, ensuring efficient local network traffic management. It learns the MAC addresses of connected devices by analyzing incoming frames and forwards packets based on the destination MAC address. This process minimizes latency and maximizes bandwidth by switching packets at the data link layer without involving IP routing.
How Layer 3 Switching Works
Layer 3 switching combines the high-speed switching capabilities of Layer 2 with routing functionalities at Layer 3, enabling the device to forward packets based on IP addresses rather than just MAC addresses. It uses hardware-based routing mechanisms, such as route lookup tables and ASICs, to perform efficient inter-VLAN routing and manage network traffic between different subnets. This integration allows Layer 3 switches to handle both switching within a LAN and routing between networks, improving overall network performance and reducing latency.
Use Cases for Layer 2 Switches
Layer 2 switches are primarily used in network environments requiring efficient MAC address-based forwarding within the same VLAN, such as in small to medium-sized LANs where segmentation is limited but traffic management is essential. They excel in scenarios like connecting end devices, reducing collision domains through port segmentation, and supporting protocols like Spanning Tree for loop prevention. Layer 2 switches are ideal for access layer deployments where speed and cost-effectiveness take precedence over routing capabilities.
Use Cases for Layer 3 Switches
Layer 3 switches are ideal for inter-VLAN routing, enabling efficient traffic management between multiple VLANs within large enterprise networks. They provide high-speed routing capabilities with hardware acceleration, making them suitable for core and distribution layers where latency and bandwidth are critical. Use cases also include enhanced network segmentation, improved security through access control lists (ACLs), and support for dynamic routing protocols such as OSPF and EIGRP.
Performance and Scalability Comparisons
Layer 2 switches excel in high-speed data forwarding within local VLANs by using MAC address tables, offering low latency and efficient handling of Ethernet frames. Layer 3 switches integrate routing capabilities, enabling inter-VLAN communication and advanced traffic management, which improves network scalability by reducing bottlenecks in larger, segmented environments. Performance-wise, Layer 3 switches handle routing at hardware speeds with ASICs, ensuring minimal delay even as network complexity grows, while Layer 2 switches can struggle with scalability due to limited VLAN segmentation and lack of routing functions.
Security Features: Layer 2 vs Layer 3
Layer 2 switches primarily provide security through features like VLAN segmentation, port security, and MAC address filtering, which help control access at the data link layer. Layer 3 switches enhance security by integrating routing capabilities with advanced mechanisms such as Access Control Lists (ACLs), IP filtering, and network segmentation via routing policies, enabling better traffic control between VLANs and subnets. The combination of Layer 2 and Layer 3 security features allows organizations to implement granular access controls and protect against threats both within local networks and across routed boundaries.
Cost Considerations and ROI Analysis
Layer 2 switches generally offer lower upfront costs due to their simpler hardware design focused on MAC address forwarding, making them cost-effective for basic network segmentation tasks. In contrast, Layer 3 switches incorporate routing capabilities, increasing initial investment but delivering higher ROI in complex network environments by reducing the need for separate routers and enhancing traffic management. Evaluating total cost of ownership (TCO) requires factoring in long-term operational efficiency, scalability, and reduced latency that Layer 3 switches provide in enterprise-level deployments.
Choosing the Right Switch for Your Network
Layer 2 switches operate at the data link layer, primarily handling MAC address-based forwarding and VLAN segmentation, making them ideal for simple LAN environments requiring efficient packet switching and traffic isolation. Layer 3 switches combine the functionalities of Layer 2 switching with routing capabilities, supporting IP routing protocols like OSPF and EIGRP, which is essential for larger, more complex networks demanding inter-VLAN routing and advanced traffic management. Choosing the right switch depends on network size, complexity, and the need for routing features, where Layer 2 switches suit small-to-medium networks and Layer 3 switches provide scalability and enhanced network control.

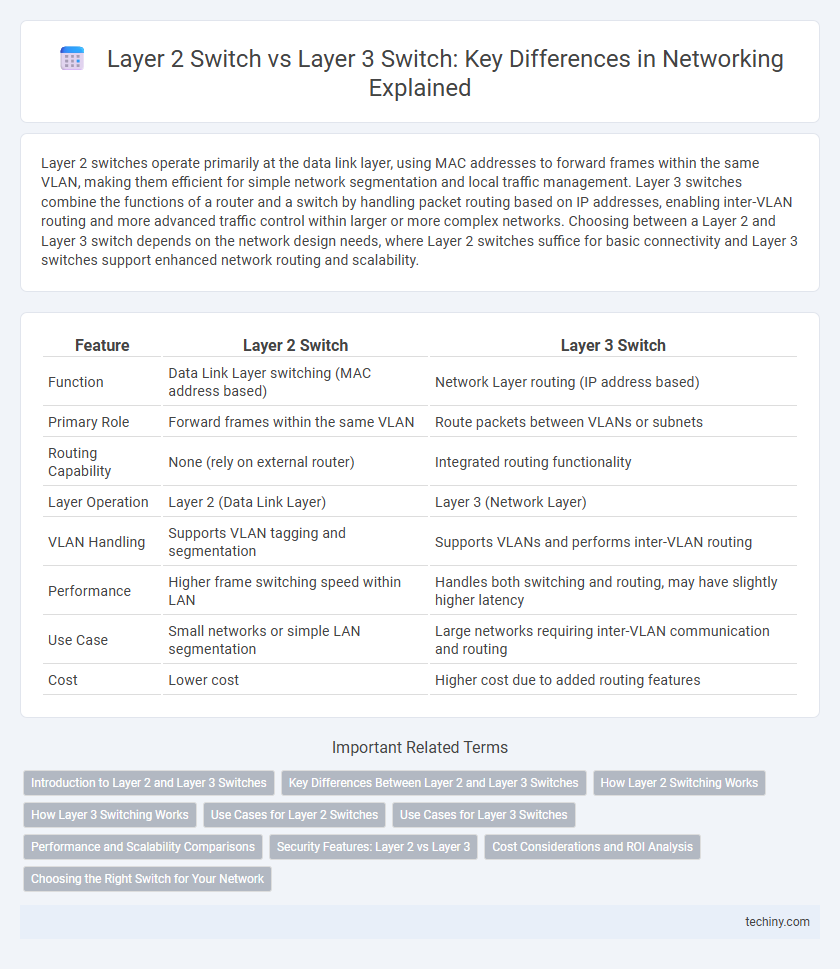

Layer 2 Switch vs Layer 3 Switch Infographic
