techiny.com Administrative Distance (AD) determines the trustworthiness of routing information from different routing protocols, while the metric measures the cost of a path within a specific protocol. Routers use AD to choose between routes learned from multiple protocols, and metrics help select the best route within a single protocol's routing table. Understanding both concepts is crucial for optimizing routing decisions and network performance.
Table of Comparison
| Feature | Administrative Distance (AD) | Metric |
|---|---|---|
| Definition | Value that rates the trustworthiness of a routing protocol | Value used to determine the best path within a routing protocol |
| Purpose | Prioritize routes from different routing protocols | Choose the optimal route within a single protocol |
| Scope | Inter-protocol route selection | Intra-protocol route selection |
| Value Range | 0 to 255 (lower is better) | Varies by protocol (e.g., hop count, bandwidth) |
| Example Values | Directly connected = 0, OSPF = 110, EIGRP = 90 | OSPF cost calculated from bandwidth, RIP hop count |
| Impact on Routing | Determines which protocol's route is installed in the routing table | Determines best path chosen by a protocol |
| Modifiable | Yes, but rarely changed (default values) | Yes, based on network metrics and policies |
| Used By | Routers when multiple routing protocols provide routes | Routing protocols internally for path selection |
Understanding Administrative Distance in Networking
Administrative Distance (AD) is a crucial value in networking used by routers to select the best path when multiple routes to the same destination exist from different routing protocols. It quantifies the trustworthiness of a route source, with lower AD values indicating more reliable routes; for example, directly connected interfaces have an AD of 0, while external EIGRP routes have an AD of 170. Understanding AD allows network administrators to optimize routing decisions, prevent routing loops, and ensure network stability by prioritizing routes based on protocol reliability rather than just path cost or metric.
Defining Routing Metrics: What They Mean
Administrative Distance (AD) quantifies the trustworthiness of a routing protocol, with lower values indicating preferred routes when multiple protocols provide the same destination. Metrics measure the cost of a route based on factors such as hop count, bandwidth, delay, load, and reliability, influencing the selection of the optimal path within a single routing protocol. Understanding both Administrative Distance and routing metrics is essential for network engineers to optimize route selection and maintain efficient, reliable network performance.
Differences Between Administrative Distance and Metric
Administrative Distance (AD) is a value used by routers to select the best path when there are multiple routes to the same destination from different routing protocols, with lower AD indicating higher trustworthiness. Metric refers to the cost assigned to a route within a specific routing protocol, used to determine the best path among multiple routes learned by that protocol. While AD compares routes between different routing protocols, metrics are used to compare routes learnt from the same protocol, making them fundamentally different aspects of route selection.
Role of Administrative Distance in Route Selection
Administrative Distance (AD) determines the trustworthiness of routing information received from different routing protocols, influencing the primary path chosen by a router. Lower AD values indicate more reliable routes, thus the router prefers routes with the smallest AD when multiple protocols offer paths to the same destination. This mechanism ensures consistent and efficient route selection in complex networks by prioritizing routing information effectively.
How Routing Protocols Use Metrics
Routing protocols use metrics to determine the most efficient path for data packets by evaluating parameters such as bandwidth, delay, hop count, and load. Metrics provide a quantifiable value that helps routers rank multiple routes within the same routing protocol, enabling optimal path selection. Administrative distance, on the other hand, serves to compare routes learned from different routing protocols by assigning preference values, but metrics are crucial for route calculation within each protocol.
Practical Examples: AD vs Metric in Real Networks
Administrative Distance (AD) prioritizes routing protocols in a router's decision-making process by assigning a reliability value, where lower AD values indicate more trusted sources, such as OSPF with an AD of 110 versus RIP's 120. Metric, on the other hand, determines the best path within a given routing protocol by evaluating specific attributes like hop count, bandwidth, or delay, exemplified by OSPF using cost (based on bandwidth) to select optimal routes. In practical networking scenarios, a route learned through OSPF (AD 110) with a metric of 10 will be preferred over one from RIP (AD 120), regardless of the RIP route's metric, illustrating how routers choose between different protocols first and then the best path within the selected protocol.
Adjusting Administrative Distance for Network Optimization
Adjusting Administrative Distance is crucial for optimizing routing decisions by influencing the trustworthiness of routing protocols in a network. Lowering the Administrative Distance for preferred protocols such as OSPF (default 110) over RIP (default 120) ensures the router prioritizes more reliable and faster routes, improving overall network efficiency. Proper tuning of Administrative Distance values helps prevent routing loops and enhances route selection by controlling which routing information is installed in the routing table.
Common Routing Protocol Metrics Explained
Administrative Distance (AD) determines the trustworthiness of a routing protocol, with lower values indicating higher preference, while Metric measures the cost of reaching a destination within a routing protocol, influencing path selection. Common routing protocols use different metrics such as hop count in RIP, bandwidth in EIGRP, and link cost in OSPF to calculate the best path. AD is used to choose between routes from different protocols, whereas Metric optimizes path selection within the same protocol.
Best Practices for Managing AD and Metrics
Managing Administrative Distance (AD) and metrics effectively requires prioritizing AD to determine route reliability between different routing protocols, while metrics fine-tune path selection within a single protocol. Best practices include assigning lower AD values to preferred routes for faster failover and adjusting metrics to optimize traffic flow based on bandwidth, delay, or hop count. Regular monitoring and dynamic adjustments ensure optimal routing performance and network stability.
Troubleshooting Routing Issues: AD and Metric Scenarios
Administrative Distance (AD) determines the trustworthiness of routing protocols, with lower AD values indicating more preferred routes, while metrics measure the cost of a route within a specific protocol. Troubleshooting routing issues often involves verifying the AD to ensure the correct protocol route is chosen and comparing metrics to find the most efficient path within that protocol. Misconfigurations in either AD or metric values can cause suboptimal routing, loops, or route flaps, leading to network instability.

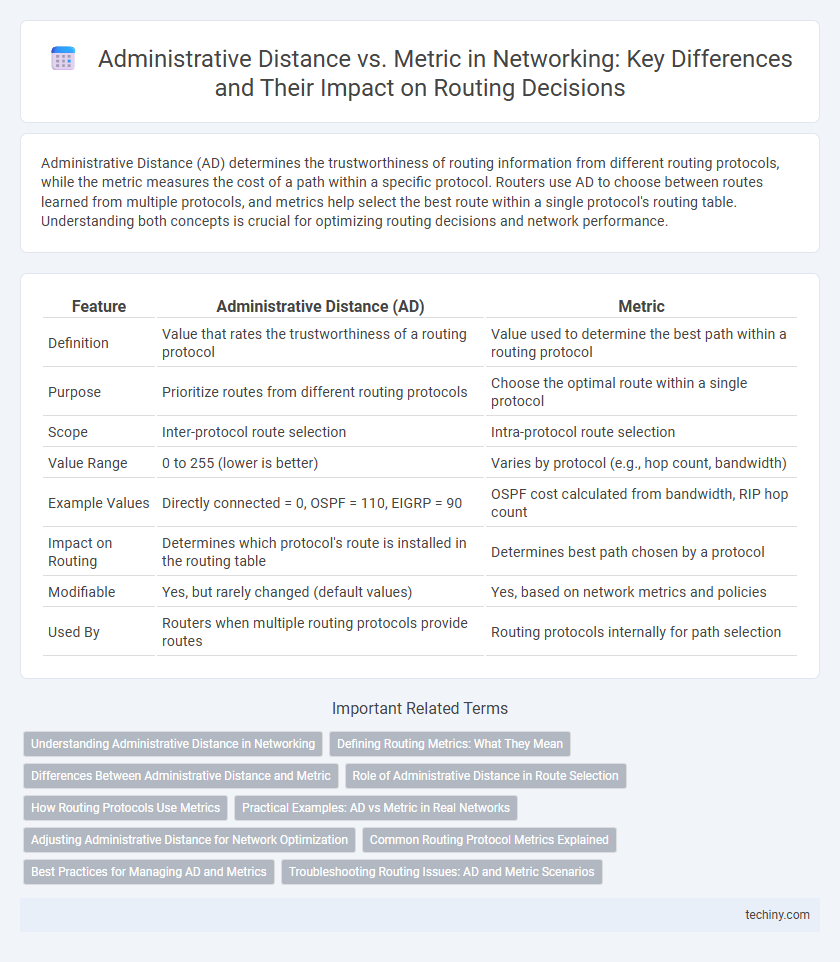

Administrative Distance vs Metric Infographic
