techiny.com RJ45 connectors are widely used for Ethernet networking, supporting speeds up to 10 Gbps over copper cables, making them ideal for most home and small office networks. SFP+ ports offer higher flexibility and performance, enabling 10 Gbps or greater connections over fiber optics or direct attach copper cables, which are essential for data centers and high-bandwidth applications. Choosing between RJ45 and SFP+ depends on network speed requirements, distance, and infrastructure, with RJ45 favoring cost-effectiveness and ease of deployment, while SFP+ excels in scalability and longer reach.
Table of Comparison
| Feature | RJ45 | SFP+ |
|---|---|---|
| Connector Type | 8P8C modular connector | Small Form-factor Pluggable Plus (hot-pluggable) |
| Data Speed | Up to 10 Gbps | Up to 16 Gbps, commonly 10 Gbps |
| Cable Type | Twisted pair copper cable (Cat5e, Cat6, Cat6a) | Fiber optic or Direct Attach Copper (DAC) |
| Max Distance | Up to 100 meters | Fiber: Up to 10 km or more; DAC: up to 10 meters |
| Use Case | Local networks, desktop, and low-cost connections | Data centers, high-speed uplinks, long-distance links |
| Latency | Higher latency due to electrical interference | Lower latency, optimized for high-performance networking |
| Cost | Lower cost for cables and connectors | Higher cost; requires compatible transceivers and cables |
| Power Consumption | Higher power consumption per port | Lower power consumption, efficient for data centers |
Understanding RJ45 and SFP+: Key Differences
RJ45 connectors primarily support copper Ethernet cables and are widely used for standard networking speeds up to 10 Gbps, making them cost-effective for most enterprise and home networks. SFP+ modules interface with fiber optic or direct attach copper (DAC) cables, enabling high-speed data transfer rates up to 25 Gbps or more, crucial for data centers and high-performance computing environments. The key difference lies in RJ45's reliance on twisted-pair copper cabling versus SFP+'s versatility in supporting various media types for extended reach and higher bandwidth.
Physical Connector Types: Copper vs Fiber
RJ45 connectors primarily support copper twisted-pair cables such as Cat5e, Cat6, and Cat6a, offering cost-effective and straightforward Ethernet connectivity up to 10 Gbps over short distances. SFP+ modules accommodate both copper (usually via DAC cables) and fiber optic cables, providing flexible physical connector options that support higher bandwidths and longer transmission distances, typically up to 10 Gbps or beyond. Fiber optic SFP+ connectors use LC or SC types for single-mode or multi-mode cables, delivering low latency and enhanced signal integrity compared to RJ45's copper interfaces.
Speed Capabilities: RJ45 vs SFP+ Performance
RJ45 connectors typically support speeds up to 10 Gbps over twisted-pair copper cables, suitable for most Ethernet networks within short distances. In contrast, SFP+ modules enable 10 Gbps speeds over fiber optic or copper direct attach cables, providing higher bandwidth and longer reach with lower latency. SFP+ is preferred in data centers and enterprise networks demanding enhanced performance and scalability beyond standard RJ45 capabilities.
Use Cases in Modern Networks
RJ45 connectors are ideal for standard Ethernet applications supporting speeds up to 10 Gbps over twisted-pair copper cables, commonly used in office environments and small-to-medium business networks. SFP+ modules offer greater flexibility with support for 10 Gbps and higher speeds over both fiber optic and copper connections, making them essential in data centers and enterprise networks requiring high bandwidth and low latency. Modern networks leverage RJ45 for cost-effective, short-distance connections, while SFP+ drives scalability and performance in backbone and aggregation layers.
Cost Comparison: RJ45 vs SFP+ Infrastructure
RJ45 infrastructure generally offers lower initial costs due to widespread compatibility with standard Ethernet equipment and cables, making it a cost-effective choice for many network setups. SFP+ infrastructure involves higher expenses from specialized transceivers and fiber optic cabling but delivers superior performance for high-speed data transfer and longer distances. Evaluating total cost of ownership should consider not only upfront hardware prices but also maintenance, scalability, and performance requirements in high-demand networking environments.
Cable Length and Transmission Distance
RJ45 connectors typically support Ethernet cable lengths up to 100 meters using Cat5e or Cat6 cables, ideal for short to medium-distance networking. SFP+ modules enable higher transmission speeds over longer distances, with options like SR (Short Range) up to 300 meters on multimode fiber and LR (Long Range) reaching 10 kilometers or more on single-mode fiber. The choice between RJ45 and SFP+ depends on the required cable length and transmission distance for efficient network performance.
Power Consumption and Efficiency
RJ45 connectors typically consume more power due to their reliance on copper cabling and active electronic components for signal transmission, whereas SFP+ modules, designed for fiber optic or direct attach connections, offer higher efficiency with lower power consumption. SFP+ supports speeds up to 10 Gbps with reduced heat generation, making it ideal for data centers aiming to minimize energy costs. The energy efficiency of SFP+ directly contributes to improved network performance and longer hardware lifespan compared to traditional RJ45 interfaces.
Installation and Compatibility Considerations
RJ45 connectors leverage widespread CAT5e and CAT6 cabling, enabling straightforward installation in Ethernet networks with broad device compatibility. SFP+ modules require compatible switch ports and fiber or direct-attached copper cables, necessitating more precise planning and matching for optimal performance. Installation costs for RJ45 are generally lower due to standardized cabling infrastructure, while SFP+ setups support higher data rates and longer distances but demand specialized hardware compatibility checks.
Reliability and Signal Integrity
RJ45 connectors, commonly used in Ethernet networks, offer reliable connectivity for standard gigabit speeds but are more susceptible to signal degradation over longer distances due to electrical interference. SFP+ modules, designed for high-speed data transmission up to 10 Gbps and beyond, maintain superior signal integrity through optical or direct attach copper connections, minimizing electromagnetic interference and attenuation. Enterprises prioritizing robust network performance and minimal data loss often prefer SFP+ for critical applications requiring enhanced reliability and consistent signal quality.
Future Trends: RJ45 and SFP+ in Evolving Networks
RJ45 connectors, widely used for Gigabit Ethernet with speeds up to 10 Gbps over copper cables, remain prevalent in enterprise and residential networks due to their cost-effectiveness and ease of installation. SFP+ ports support faster data rates of up to 25 Gbps and beyond with fiber optics, aligning with the demand for higher bandwidth and lower latency in data centers and cloud infrastructures. Future trends indicate a gradual shift towards SFP+ and beyond, driven by increasing network speed requirements and the adoption of 5G, while RJ45 continues to serve as a reliable solution for shorter distance and less demanding applications.

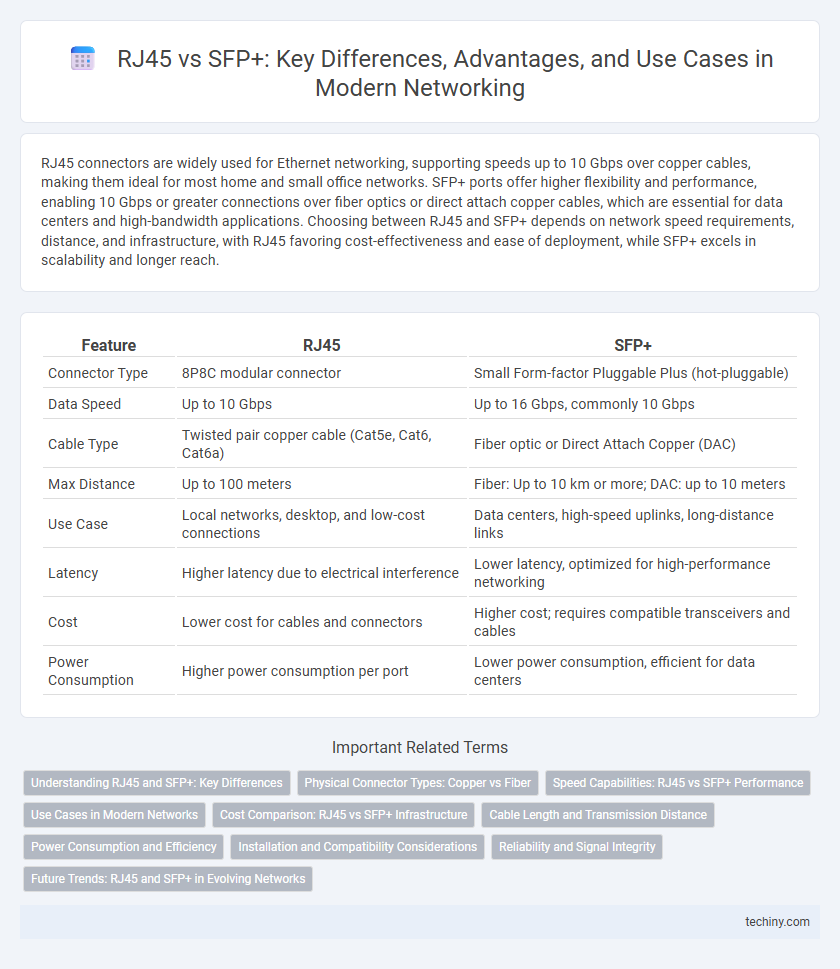

RJ45 vs SFP+ Infographic
