techiny.com Home eNodeB, also known as femtocells, provide localized cellular coverage within homes or small offices, enhancing indoor signal strength and capacity for a limited number of users. Macro eNodeB serves as a large-scale base station covering extensive outdoor areas, supporting high user density and managing broader network traffic. The choice between Home eNodeB and Macro eNodeB depends on deployment needs, with Home eNodeB optimizing indoor connectivity and Macro eNodeB ensuring wide-area network coverage.
Table of Comparison
| Feature | Home eNodeB | Macro eNodeB |
|---|---|---|
| Coverage | Small area (home or office) | Large outdoor area |
| Transmit Power | Low power (100mW to 250mW) | High power (up to 40W) |
| Deployment | Indoor, plug-and-play | Outdoor, tower or rooftop mounted |
| Capacity | Limited users (up to 8-16) | Hundreds of users |
| Backhaul | Typically broadband internet (DSL, fiber) | Dedicated fiber or microwave links |
| Cost | Low deployment cost | High capital and operational expense |
| Use Case | Indoor coverage boost, residential or small enterprise | Wide area coverage, macrocell network |
Introduction to Home eNodeB and Macro eNodeB
Home eNodeB, also known as femtocell, is a small cellular base station designed for indoor use, enhancing mobile coverage and capacity within homes or small offices by connecting to the mobile operator's core network via broadband. Macro eNodeB refers to large-scale outdoor base stations that provide wide-area cellular coverage, supporting high-capacity simultaneous connections and serving as key infrastructure in LTE networks. Both Home eNodeB and Macro eNodeB operate within the LTE framework but differ significantly in deployment scale, coverage range, and user density handling.
Architecture Differences Between Home eNodeB and Macro eNodeB
Home eNodeB architecture features a compact, integrated design with a simplified backhaul connection directly to the operator's core network, optimized for residential and small office environments. Macro eNodeB employs a complex, large-scale architecture with multiple sector antennas, higher transmission power, and robust backhaul infrastructure to support wide-area coverage and high user capacity. The primary architectural difference lies in the deployment scale, where Home eNodeB prioritizes ease of installation and lower cost, while Macro eNodeB emphasizes extensive coverage, capacity, and advanced interference management.
Deployment Scenarios and Use Cases
Home eNodeB, also known as femtocells, are primarily deployed in residential or small office environments to enhance indoor LTE coverage and capacity, effectively offloading traffic from macro networks. Macro eNodeB, or macrocells, are suited for wide-area outdoor coverage, supporting high user density and providing robust connectivity over large geographic areas. Deployment scenarios for Home eNodeB focus on improving user experience in indoor settings with limited coverage, while Macro eNodeB are essential for urban, suburban, and rural network infrastructure to ensure broad LTE service availability.
Coverage Area and Capacity Comparison
Home eNodeB offers limited coverage area, typically serving a single household or small indoor environment with low to moderate user capacity. Macro eNodeB provides extensive coverage spanning several kilometers, supporting high user density and greater traffic capacity in outdoor or urban settings. The choice between Home and Macro eNodeB depends on deployment needs, balancing localized indoor coverage against broad macro-level connectivity.
Installation and Maintenance Considerations
Home eNodeBs require simplified installation with plug-and-play capability suitable for residential or small business environments, minimizing professional intervention. Macro eNodeBs involve complex site acquisition, structural integration, and specialized maintenance to support high-capacity urban or rural coverage. Ongoing maintenance for Home eNodeBs emphasizes remote troubleshooting and firmware updates, while Macro eNodeBs demand frequent physical inspections and robust equipment servicing due to their critical network role.
Security Features in Home vs. Macro eNodeB
Home eNodeB security features prioritize subscriber privacy and local access control, implementing robust encryption protocols such as AES and secure key management to protect residential networks against unauthorized access. Macro eNodeBs feature advanced security mechanisms including comprehensive intrusion detection systems and network-wide attack mitigation to safeguard large-scale cellular infrastructure. Both Home and Macro eNodeBs employ mutual authentication with the core network to ensure secure communication, but macro eNodeBs emphasize scalability and resilience against large-volume threats in wide-area deployments.
Interference Management Strategies
Home eNodeBs employ advanced interference management techniques such as closed-loop power control and dynamic spectrum allocation to minimize cross-tier interference with macro eNodeBs. Macro eNodeBs utilize enhanced inter-cell interference coordination (eICIC) and almost blank subframes (ABS) to mitigate interference from dense small cell deployments like home eNodeBs. The integration of coordinated multipoint (CoMP) transmission further optimizes interference management by enabling joint signal processing across both home and macro eNodeBs.
Cost Implications and Investment Analysis
Home eNodeB offers significantly lower capital expenditure (CAPEX) and operational expenditure (OPEX) compared to Macro eNodeB due to its smaller coverage area and simplified deployment requirements. Investment analysis highlights that while Macro eNodeBs require substantial infrastructure and site acquisition costs, Home eNodeBs enable cost-effective capacity enhancement in indoor environments, reducing the need for extensive macro cell densification. Optimizing network investment by integrating Home eNodeBs can improve return on investment (ROI) through targeted coverage and reduced maintenance expenses.
Scalability and Network Expansion Capabilities
Home eNodeB offers limited scalability due to its localized deployment primarily designed for residential or small office environments, supporting fewer concurrent users and lower traffic volumes. Macro eNodeB provides extensive network expansion capabilities with high-capacity hardware and broad coverage areas, enabling seamless integration into large-scale cellular networks. Deploying macro eNodeBs enhances network scalability by supporting a greater number of connected devices and handling increased data traffic effectively across urban and suburban regions.
Future Trends in eNodeB Deployment
Future trends in eNodeB deployment emphasize the increased integration of Home eNodeBs to enhance indoor coverage and capacity, addressing the growing demand for high-speed data in residential environments. Macro eNodeBs continue to evolve with advanced massive MIMO and beamforming technologies to support ultra-reliable low-latency communication (URLLC) and massive IoT connectivity across broader areas. The convergence of Home and Macro eNodeBs within 5G and beyond networks will enable seamless handovers, optimized spectrum usage, and improved user experience through dynamic network slicing and AI-driven resource management.

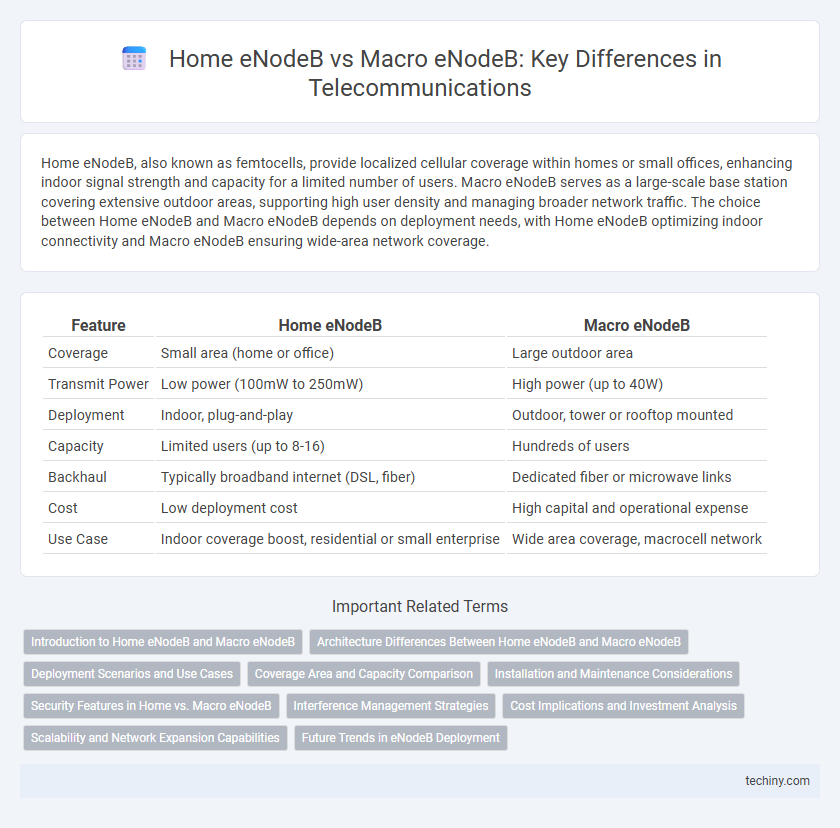

Home eNodeB vs Macro eNodeB Infographic
