techiny.com SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Networking) are standardized protocols designed for transmitting digital signals over optical fiber networks. SDH is widely adopted outside North America, offering flexible data rates and efficient network management, while SONET dominates in the United States with similar hierarchical framing structures and synchronization methods. Both technologies enable high-capacity, scalable, and reliable telecommunications infrastructure, supporting voice, data, and multimedia services.
Table of Comparison
| Feature | SDH (Synchronous Digital Hierarchy) | SONET (Synchronous Optical Network) |
|---|---|---|
| Standard Origin | ITU-T | ANSI |
| Geographical Usage | International | North America |
| Basic Transmission Rate | STM-1 (155.52 Mbps) | OC-1 (51.84 Mbps) |
| Multiplexing | STM-n multiples (n = 1,4,16, etc.) | OC-n multiples (n = 1,3,12, etc.) |
| Frame Structure | 270-byte frame every 125 ms | 810-byte frame every 125 ms |
| Payload | VC-4 container | Synchronous payload envelope (SPE) |
| Network Use | Primarily telecom networks outside NA | Telecom networks in North America |
| Interoperability | Compatible with SONET | Compatible with SDH |
Introduction to SDH and SONET Technologies
Synchronous Digital Hierarchy (SDH) and Synchronous Optical Networking (SONET) are standardized protocols designed for high-speed optical fiber networks, enabling efficient and scalable data transmission. SDH, predominantly used internationally, offers flexible multiplexing and interoperability across diverse network equipment, while SONET is primarily implemented in North America, emphasizing synchronization and standardized framing. Both technologies support synchronous transmission with robust error detection and network management capabilities, facilitating the backbone infrastructure of modern telecommunications.
Historical Evolution of SDH and SONET
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) emerged in the 1980s to standardize optical fiber transmission and address the growing demand for high-speed telecommunication networks. SONET was developed primarily in North America as a protocol for synchronous data transmission over optical fibers, while SDH was introduced by the ITU-T to serve as a global standard, incorporating improvements for international compatibility and network management. The historical evolution of SDH and SONET reflects their roles in enabling scalable, high-capacity, and interoperable optical networks critical to modern telecommunications infrastructure.
Key Architectural Differences between SDH and SONET
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) exhibit key architectural differences primarily in their frame structure and hierarchy, with SDH using a 125 microsecond frame period and SONET employing a slightly different frame format optimized for North American standards. SDH frames consist of a synchronous transport module (STM-1) with a payload capacity of 155.52 Mbps, while SONET frames are based on the Synchronous Transport Signal level 1 (STS-1) structure, equivalent in bandwidth but with differing overhead and multiplexing techniques. These distinctions affect the network management and interoperability in global telecommunications systems.
Frame Structure and Multiplexing Techniques
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) both utilize standardized frame structures for efficient data transmission, with SDH frames organized in a 125 microsecond multiplex frame comprising 9 rows by 270 columns, while SONET frames consist of 9 rows by 90 columns repeated every 125 microseconds. Multiplexing techniques differ as SDH employs byte-interleaved multiplexing, enabling hierarchical mapping of lower-order tributaries into higher-order frames, whereas SONET uses a similar multiplexing approach based on fixed-size payload containers (Virtual Tributaries) to facilitate flexible bandwidth allocation. These structural and multiplexing variations optimize synchronous data transport across optical networks, ensuring high compatibility and scalability within telecommunications infrastructure.
Transmission Rates and Capacity Comparison
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) both support high-capacity transmission rates, with SDH primarily used outside North America and SONET dominant within it. SDH's base rate starts at STM-1 with 155.52 Mbps, scaling up to STM-64 at 10 Gbps, while SONET begins with OC-1 at 51.84 Mbps, increasing to OC-192 at approximately 9.953 Gbps. Capacity comparison reveals SONET offers finer granularity in multiplexing due to its lower base rate, whereas SDH provides standardization benefits in international networks.
Interoperability and Global Deployment
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) are standardized protocols for optical fiber transmission, with SDH predominantly used outside North America and SONET primarily in North America, leading to regional interoperability challenges. Both frameworks ensure seamless data transmission and synchronization but differ in frame structures and data rates, which requires specialized equipment or adaptation layers for global network integration. Their interoperability remains critical for multinational telecommunications providers aiming to maintain consistent service quality across diverse infrastructure standards worldwide.
Synchronization and Network Management
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) both provide robust synchronization by employing a master clock system to maintain precise timing across network elements, ensuring seamless data transmission. SDH features flexible synchronization mechanisms optimized for international standards, while SONET offers stringent synchronization adhering primarily to North American protocols. Network management in SDH leverages the OSI model-based architecture enabling comprehensive fault management and performance monitoring, whereas SONET relies on the TL1 interface emphasizing real-time alarm reporting and network configuration control.
Equipment and Vendor Support
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) differ primarily in regional adoption, with SDH widely used outside North America and SONET dominant within it, influencing equipment availability and vendor ecosystems. Major telecommunications vendors such as Cisco, Huawei, Ericsson, and Nokia offer platforms supporting both standards, but equipment compatibility often hinges on network geography and legacy infrastructure. Vendor support for SDH and SONET includes integrated management systems and interoperability solutions ensuring seamless data transmission across diverse optical networks.
Application Scenarios in Modern Networks
SDH (Synchronous Digital Hierarchy) is predominantly deployed in European and Asian telecommunications networks, supporting high-capacity data transmission with robust error correction, making it ideal for metropolitan and regional network backbones. SONET (Synchronous Optical Network) is widely used in North America, optimized for seamless interoperability and scalability in long-haul fiber optic networks and carrier-grade infrastructure. Both standards enable efficient multiplexing of multiple digital channels, but choice depends on regional standards, legacy infrastructure, and specific applications such as metro Ethernet services or intercontinental data links.
Future Trends and the Shift to Packet-Based Networks
SDH (Synchronous Digital Hierarchy) and SONET (Synchronous Optical Network) are being progressively supplemented by packet-based networks such as MPLS and Carrier Ethernet to accommodate increasing data traffic and diverse service requirements. Future trends emphasize integrating SDH/SONET infrastructures with IP/MPLS technologies to enable seamless transport of packet data while leveraging existing optical frameworks. This shift supports higher bandwidth flexibility, improved network scalability, and enhanced support for emerging applications like 5G and IoT.

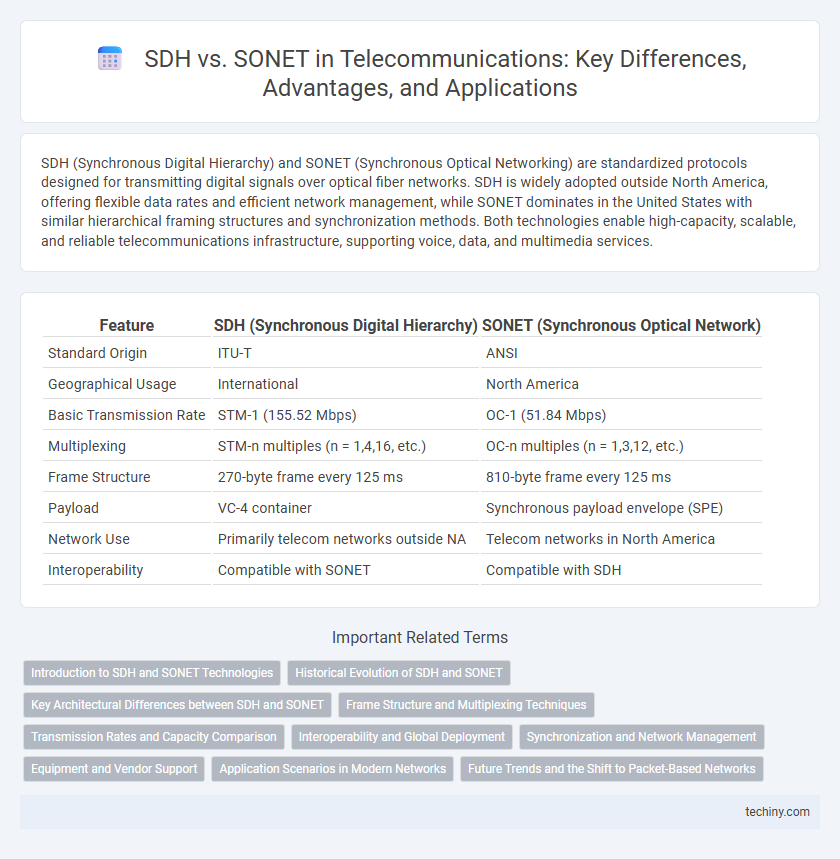

SDH vs SONET Infographic
