techiny.com Optical Transport Network (OTN) offers enhanced scalability and better support for high bandwidth data transmission compared to Synchronous Digital Hierarchy (SDH), making it ideal for modern telecommunications demands. OTN provides more efficient error correction and multiplexing capabilities, enabling improved network performance and flexibility. While SDH remains reliable for legacy systems, OTN's advanced features position it as the preferred choice for next-generation optical networks.
Table of Comparison
| Feature | OTN (Optical Transport Network) | SDH (Synchronous Digital Hierarchy) |
|---|---|---|
| Technology Type | Packet-friendly optical transport | Legacy circuit-switched transport |
| Data Rate | Up to 400 Gbps and beyond | Up to 40 Gbps (STM-256) |
| Multiplexing | Flexible multiplexing, supports variable data rates | Fixed multiplexing hierarchy |
| Transparency | Protocol agnostic, supports Ethernet, IP, Fibre Channel | Primarily TDM-based, less protocol-flexible |
| Error Correction | Built-in Forward Error Correction (FEC) | No native FEC |
| Management | Advanced OAM for fault detection and performance monitoring | Basic OAM functions |
| Use Case | High-capacity optical networks, data center interconnects | Legacy telecom networks, voice and early data transport |
| Standardization | ITU-T G.709 | ITU-T G.707 |
Introduction to Optical Transport Network (OTN) and Synchronous Digital Hierarchy (SDH)
Optical Transport Network (OTN) provides a scalable, high-capacity framework for multiplexing, switching, and managing different types of client signals over optical fiber, enhancing data integrity with advanced forward error correction and facilitating efficient bandwidth utilization. Synchronous Digital Hierarchy (SDH) is a standardized protocol that enables the synchronous transmission of digital signals over optical networks, primarily designed for voice and legacy data services with predictable, fixed bandwidth allocations. OTN outperforms SDH by supporting heterogeneous traffic types, greater flexibility in bandwidth management, and improved survivability features for modern telecommunication infrastructures.
Evolution of Telecommunication Transport Technologies
Optical Transport Network (OTN) represents a significant advancement over Synchronous Digital Hierarchy (SDH) by enabling higher bandwidth capacities and improved data multiplexing for modern telecom infrastructures. OTN supports efficient transport of diverse data formats, including Ethernet and IP, through enhanced error correction and management features, optimizing network reliability and scalability. The evolution from SDH to OTN reflects the telecommunications industry's shift toward all-optical networks that accommodate growing demand for high-speed data transmission and flexible service integration.
Key Technical Differences: OTN vs SDH
OTN (Optical Transport Network) offers enhanced data multiplexing and error correction capabilities compared to SDH (Synchronous Digital Hierarchy), enabling transparent transport of various client signals with improved scalability. OTN supports higher data rates up to 400 Gbps and beyond, utilizing advanced Forward Error Correction (FEC) for improved signal integrity over long distances. In contrast, SDH primarily relies on synchronous multiplexing and operates efficiently at lower bandwidths, making OTN more suitable for modern high-capacity optical networks.
Data Rates and Scalability in OTN and SDH
OTN supports higher data rates up to 400 Gbps and beyond, enabling efficient transport of large-scale data traffic, while SDH typically maxes out around 40 Gbps, limiting its capacity for modern bandwidth demands. OTN offers superior scalability with flexible multiplexing and grooming capabilities, adapting seamlessly to diverse client signals and future network growth. SDH's rigid hierarchy restricts scalability, making OTN the preferred choice for evolving high-speed telecommunications infrastructures.
Multiplexing Techniques: WDM vs TDM
Optical Transport Network (OTN) primarily uses Wavelength Division Multiplexing (WDM) to enable the simultaneous transmission of multiple optical signals over a single fiber by assigning each signal a unique wavelength. Synchronous Digital Hierarchy (SDH) relies on Time Division Multiplexing (TDM) to divide the signal into time slots, allowing multiple data streams to share the same transmission medium sequentially. WDM offers higher bandwidth efficiency and scalability compared to TDM, making OTN more suitable for modern high-capacity telecommunication networks.
Network Management and Operations
OTN offers advanced network management capabilities by supporting end-to-end error monitoring, efficient bandwidth allocation, and seamless integration with Ethernet services, enabling more precise fault localization and reduced operational complexity compared to SDH. While SDH relies on fixed time-slot assignments and simpler management protocols like TMN and SNMP, OTN's usage of Optical Channel Data Unit (ODU) containers enhances multiplexing efficiency and facilitates dynamic service provisioning. Network operators benefit from OTN's scalability and automated fault detection, which significantly improve operational agility and reduce mean time to repair (MTTR) in complex telecommunications infrastructures.
Protection and Restoration Mechanisms
OTN (Optical Transport Network) offers advanced protection and restoration mechanisms with features such as shared mesh protection and multiplex section protection, enabling rapid recovery from fiber cuts and equipment failures while maximizing bandwidth efficiency. SDH (Synchronous Digital Hierarchy) primarily relies on ring-based protection schemes like UPSR (Unidirectional Path Switched Ring) and BLSR (Bidirectional Line Switched Ring), providing fast restoration times but with less granularity and flexibility compared to OTN. OTN's ability to support end-to-end error detection and grooming enhances service reliability in complex network topologies beyond traditional SDH frameworks.
Application Scenarios: Where OTN and SDH Excel
OTN excels in long-haul and high-capacity network environments by providing superior data transparency, advanced multiplexing, and robust error correction, making it ideal for modern data centers and metro core networks. SDH is well-suited for legacy telecom networks and real-time voice services due to its simplicity, deterministic latency, and widespread deployment in traditional digital hierarchy systems. Enterprises migrating to cloud services and 5G transport increasingly favor OTN for its scalability and flexibility, while SDH remains relevant in stable, narrowband circuit-switched applications.
Migration Strategies: From SDH to OTN
Migration strategies from SDH to OTN often involve phased integration where OTN overlays existing SDH infrastructure, enabling gradual capacity scaling and advanced multiplexing. Service providers prioritize interoperability standards like ITU-T G.709 to maintain seamless transport of legacy SDH signals while leveraging OTN's enhanced error correction and bandwidth efficiency. Effective migration planning includes robust network management tools and training to optimize OTN deployment without disrupting ongoing SDH operations.
Future Trends in Transport Networks
Optical Transport Network (OTN) is rapidly evolving with advancements in flexible spectral grids and higher data rate capabilities, surpassing traditional Synchronous Digital Hierarchy (SDH) in scalability and efficiency. Future transport networks emphasize integration of OTN with software-defined networking (SDN) and network functions virtualization (NFV) to enable dynamic bandwidth allocation and automated network management. Enhanced OTN features such as Forward Error Correction (FEC) improvements and multi-degree Reconfigurable Optical Add-Drop Multiplexers (ROADMs) drive the shift towards more agile, high-capacity, and cost-effective telecommunications infrastructures.

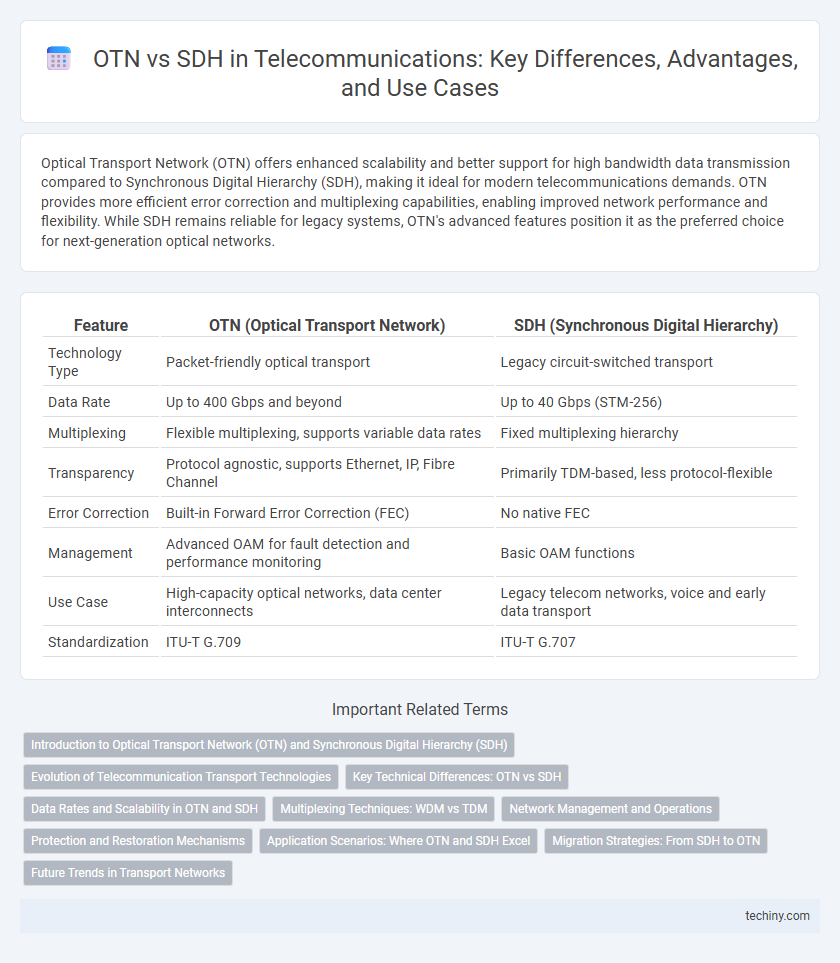

OTN vs SDH Infographic
