techiny.com Optical Transport Network (OTN) enhances Wavelength Division Multiplexing (WDM) by adding robust error correction and advanced multiplexing capabilities to improve data integrity and network management. While WDM efficiently increases bandwidth by multiplexing multiple optical signals on different wavelengths, OTN provides a standardized framing structure that supports multi-service transport and enables seamless interoperability between diverse network equipment. This combination ensures optimized performance, scalability, and reliable high-capacity data transmission in modern telecommunications infrastructures.
Table of Comparison
| Feature | OTN (Optical Transport Network) | WDM (Wavelength Division Multiplexing) |
|---|---|---|
| Definition | A protocol designed for efficient transport, multiplexing, and management of optical signals | Technology that combines multiple wavelengths to transmit different data streams over a single fiber |
| Functionality | Provides error correction, performance monitoring, and multiplexing of multiple client signals | Increases fiber capacity by using multiple wavelengths simultaneously |
| Layer | Layer 1.5 / Optical transport layer | Physical layer multiplexing technology |
| Error Correction | Includes Forward Error Correction (FEC) | No native error correction |
| Signal Management | Supports multiplexing, grooming, and protection switching | Supports wavelength multiplexing only |
| Applications | Used in telecom core networks to provide reliable high-speed transport | Used to maximize fiber bandwidth capacity in optical networks |
| Standard | ITU-T G.709 | ITU-T G.694.1 |
Understanding OTN and WDM: Key Concepts
OTN (Optical Transport Network) provides a standardized framework for efficient, error-corrected, and secure transmission of various types of data across optical fiber networks, supporting multiplexing, management, and fault detection. WDM (Wavelength Division Multiplexing) technology increases bandwidth by transmitting multiple optical signals at different wavelengths over a single fiber, enabling scalable and high-capacity data transportation. Understanding OTN involves grasping its role in encapsulating and managing data streams, while WDM focuses on optimizing physical layer capacity through wavelength separation.
Core Differences Between OTN and WDM
Optical Transport Network (OTN) provides a standardized framework for encapsulating, multiplexing, and managing data, ensuring enhanced error correction and network management capabilities, unlike Wavelength Division Multiplexing (WDM), which primarily focuses on increasing bandwidth by multiplexing multiple wavelengths onto a single fiber. OTN operates as a layered protocol offering transparent transport and comprehensive fault monitoring, while WDM functions at the physical layer to maximize fiber capacity through wavelength separation. Consequently, OTN supports efficient data multiplexing and robust network performance, whereas WDM emphasizes wavelength allocation and transmission optimization in optical networks.
Architecture Overview: OTN vs WDM
Optical Transport Network (OTN) architecture provides a structured framing and multiplexing layer that enables efficient error correction, management, and transparent transport of various client signals, enhancing network reliability and scalability. Wavelength Division Multiplexing (WDM) focuses on the physical layer by multiplexing multiple optical carrier signals onto a single fiber through different wavelengths, maximizing fiber bandwidth without inherent error correction or signal management. OTN integrates with WDM by adding a digital wrapper around WDM channels, enabling advanced operations like performance monitoring and fault isolation beyond WDM's basic wavelength multiplexing functionality.
Signal Management and Performance
Optical Transport Network (OTN) provides advanced signal management through error correction, transparent multiplexing, and enhanced monitoring, ensuring superior performance over Wavelength Division Multiplexing (WDM) that primarily focuses on signal aggregation and wavelength routing. OTN's capability to encapsulate various client signals with robust Forward Error Correction (FEC) significantly improves signal integrity and reduces bit error rates compared to traditional WDM systems. By offering better fault isolation and traffic management, OTN facilitates higher network reliability and optimized bandwidth efficiency in complex telecommunication infrastructures.
Scalability and Capacity Considerations
Optical Transport Network (OTN) offers enhanced scalability through its standardized multi-layer multiplexing, enabling efficient management of diverse client signals with built-in error correction and performance monitoring. Wavelength Division Multiplexing (WDM) primarily increases capacity by splitting the optical spectrum into multiple wavelengths but lacks OTN's advanced overhead capabilities for comprehensive network management. For high-capacity networks requiring granular scalability and robust fault management, OTN presents a more flexible solution compared to traditional WDM systems.
Network Flexibility and Service Provisioning
Optical Transport Network (OTN) offers enhanced network flexibility by enabling efficient multiplexing, error correction, and transparent support for diverse client signals, which simplifies service provisioning and improves bandwidth utilization. Wavelength Division Multiplexing (WDM) provides high-capacity transmission by carrying multiple wavelengths simultaneously but relies on external layer technologies for granular service management and dynamic reconfiguration. Integrating OTN with WDM combines WDM's high data throughput with OTN's robust grooming and management capabilities, resulting in optimized network flexibility and streamlined service delivery.
Transmission Efficiency and Latency
Optical Transport Network (OTN) provides enhanced transmission efficiency by incorporating forward error correction (FEC) and robust framing, reducing retransmissions compared to Wavelength Division Multiplexing (WDM), which relies heavily on raw wavelength multiplexing. OTN achieves lower latency through optimized multiplexing and synchronous transport, minimizing delay variations, whereas WDM can introduce higher latency due to optical signal degradation and the need for electronic regeneration. In high-capacity, long-distance telecommunications, OTN's structured protocol enables more reliable and efficient data transport, outperforming WDM in both transmission efficiency and latency management.
Applications and Use Cases in Modern Networks
OTN (Optical Transport Network) enhances data integrity and network management with features like error correction and fault isolation, making it ideal for long-haul telecommunications and data center interconnects. WDM (Wavelength Division Multiplexing) maximizes fiber capacity by transmitting multiple wavelengths simultaneously, essential for metro and backbone networks requiring high bandwidth and scalability. Together, OTN supports reliable, efficient transport while WDM optimizes spectral efficiency, enabling modern networks to handle increasing traffic demands from cloud services, 5G, and IoT deployments.
Cost Implications and Operational Complexity
Optical Transport Network (OTN) offers cost advantages through efficient bandwidth multiplexing and enhanced error correction, reducing retransmission expenses compared to Wavelength Division Multiplexing (WDM). WDM systems often incur higher operational complexity due to the need for precise wavelength management and amplification across multiple channels. Deploying OTN can streamline network operations with integrated management protocols, ultimately lowering operational overhead in large-scale telecommunications infrastructures.
Future Trends: The Evolution of OTN and WDM
Optical Transport Network (OTN) and Wavelength Division Multiplexing (WDM) are converging with advancements in programmable photonics and AI-driven network optimization, enhancing dynamic bandwidth allocation and fault management. Future trends indicate OTN's role in providing robust error correction and standardized framing will integrate seamlessly with WDM's high-capacity wavelength multiplexing to meet the demands of 5G, IoT, and cloud data centers. The evolution prioritizes scalable, flexible optical infrastructure supporting ultra-low latency and higher spectral efficiency for next-generation telecommunications networks.

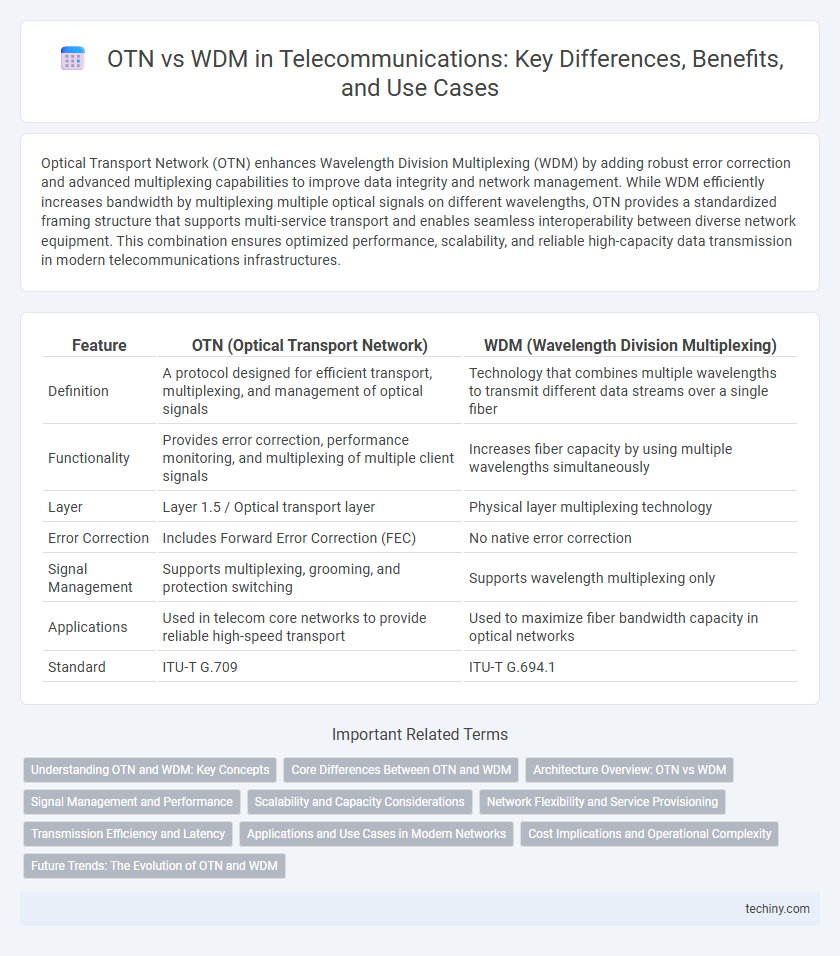

OTN vs WDM Infographic
