techiny.com Microwave links offer wireless communication with rapid deployment and lower initial costs, making them ideal for remote or difficult-to-access areas. Fiber optic links provide superior bandwidth, lower latency, and enhanced security, supporting high-capacity data transmission over long distances. Choosing between microwave and fiber optic links depends on factors such as budget, required data rates, environmental conditions, and network scalability.
Table of Comparison
| Feature | Microwave Link | Fiber Optic Link |
|---|---|---|
| Transmission Medium | Air (Radio Waves) | Glass Fiber |
| Bandwidth | Up to 10 Gbps | Up to Tbps (Terabits per second) |
| Latency | Moderate (~1-5 ms) | Low (<1 ms) |
| Distance | Up to 50 km per hop | Up to 100 km+ (with amplification) |
| Installation Cost | Lower initial cost | Higher initial cost |
| Maintenance | Moderate, weather dependent | Low, stable environment |
| Interference | Susceptible to weather/RF interference | Immune to electromagnetic interference |
| Reliability | Moderate | High |
| Security | Less secure, signal can be intercepted | Highly secure, difficult to tap |
| Use Cases | Remote areas, rapid deployment | High-capacity backbones, data centers |
Introduction to Microwave and Fiber Optic Links
Microwave links utilize high-frequency radio waves to transmit data wirelessly between fixed locations, offering rapid deployment and flexibility in challenging terrains with minimal physical infrastructure. Fiber optic links employ thin strands of glass or plastic to carry light signals over long distances with extremely high bandwidth, low signal attenuation, and immunity to electromagnetic interference. Both technologies play critical roles in telecommunications networks by balancing cost, capacity, and deployment constraints depending on geographic and operational requirements.
Working Principles of Microwave and Fiber Optic Technologies
Microwave links transmit data through high-frequency radio waves in the electromagnetic spectrum, utilizing line-of-sight communication between antennas, which is optimal for long-distance and urban environments with minimal physical infrastructure. Fiber optic links rely on the principle of total internal reflection, where light signals are transmitted through thin strands of glass fibers with minimal signal loss, offering extremely high bandwidth and immunity to electromagnetic interference. Both technologies serve distinct roles in telecommunications networks, with microwave links providing flexible wireless connectivity and fiber optics delivering ultra-fast, high-capacity wired connections.
Data Transmission Speeds: Microwave vs. Fiber Optic
Microwave links typically offer data transmission speeds ranging from 100 Mbps to several Gbps, depending on the technology and frequency band used, but are limited by atmospheric conditions and distance. Fiber optic links provide significantly higher speeds, often exceeding 100 Gbps, with minimal signal loss and latency over long distances due to the use of light waves in glass fibers. The superior bandwidth capacity and reliability of fiber optic systems make them the preferred choice for high-speed telecommunications infrastructure.
Reliability and Signal Quality Comparison
Microwave links offer rapid deployment and flexibility in challenging terrains but are more susceptible to weather interference, causing potential signal degradation and reduced reliability. Fiber optic links provide superior signal quality with minimal attenuation and immunity to electromagnetic interference, ensuring consistent high-speed connectivity over long distances. Reliability in fiber optics surpasses microwave links due to its physical shielding and lower maintenance needs, making it ideal for mission-critical telecommunications infrastructure.
Deployment Cost and Infrastructure Requirements
Microwave links typically offer lower upfront deployment costs and require less physical infrastructure, making them ideal for rapid and flexible site-to-site connectivity in challenging terrains. Fiber optic links involve significant investment in cable laying and trenching, demanding extensive civil works and right-of-way acquisition, which drives up overall deployment expenses. Despite higher initial costs, fiber optics provide greater bandwidth, lower latency, and long-term scalability suited for high-capacity backbone networks.
Scalability and Future-Proofing Capabilities
Microwave links offer rapid deployment and flexible scalability for expanding network coverage in remote or challenging terrains, but their bandwidth capacity remains limited compared to fiber optic links. Fiber optic links provide significantly higher data transmission rates, superior reliability, and extensive scalability, supporting increasing demand from 5G networks and IoT applications, ensuring long-term future-proofing. Investments in fiber infrastructure align with future telecommunications growth, allowing seamless upgrades to higher capacity without extensive physical changes.
Environmental and Geographical Considerations
Microwave links offer flexibility in challenging terrains such as mountains or forests where fiber optic installation is cost-prohibitive or impractical due to dense vegetation or uneven ground. Fiber optic links require extensive groundwork and trenching, making them less suitable for environmentally sensitive or remote areas but provide higher bandwidth and lower latency in urban or suburban settings. Both technologies must consider environmental impacts like weather conditions for microwave signals and soil stability for fiber laying, influencing deployment choices based on geographical factors and ecological preservation.
Security Aspects in Microwave and Fiber Optic Links
Microwave links are more vulnerable to interception and eavesdropping due to their wireless nature, making physical security measures and encryption critical for protecting transmitted data. Fiber optic links offer enhanced security as they are difficult to tap without detection, leveraging the physical properties of light transmission and advanced encryption protocols to safeguard communication. In high-security telecommunications applications, fiber optics provide a more resilient solution against data breaches and unauthorized access compared to microwave links.
Use Cases and Industry Applications
Microwave links are optimal for remote or rugged terrain where rapid deployment and cost-efficiency are critical, commonly used in telecommunications, emergency services, and rural connectivity. Fiber optic links provide high bandwidth and low latency, making them ideal for urban infrastructure, data centers, and backbone network applications in industries like finance, healthcare, and cloud computing. Telecommunications providers often integrate both technologies to optimize network resilience and coverage across diverse environments.
Choosing the Right Technology: Key Decision Factors
Microwave links offer rapid deployment and cost-effective solutions for short to medium distances, especially in challenging terrains where fiber optic installation is impractical. Fiber optic links provide unparalleled bandwidth, low latency, and immunity to electromagnetic interference, making them ideal for high-capacity, long-distance communication networks. Key decision factors include project budget, required data transmission rates, deployment environment, scalability needs, and maintenance considerations.

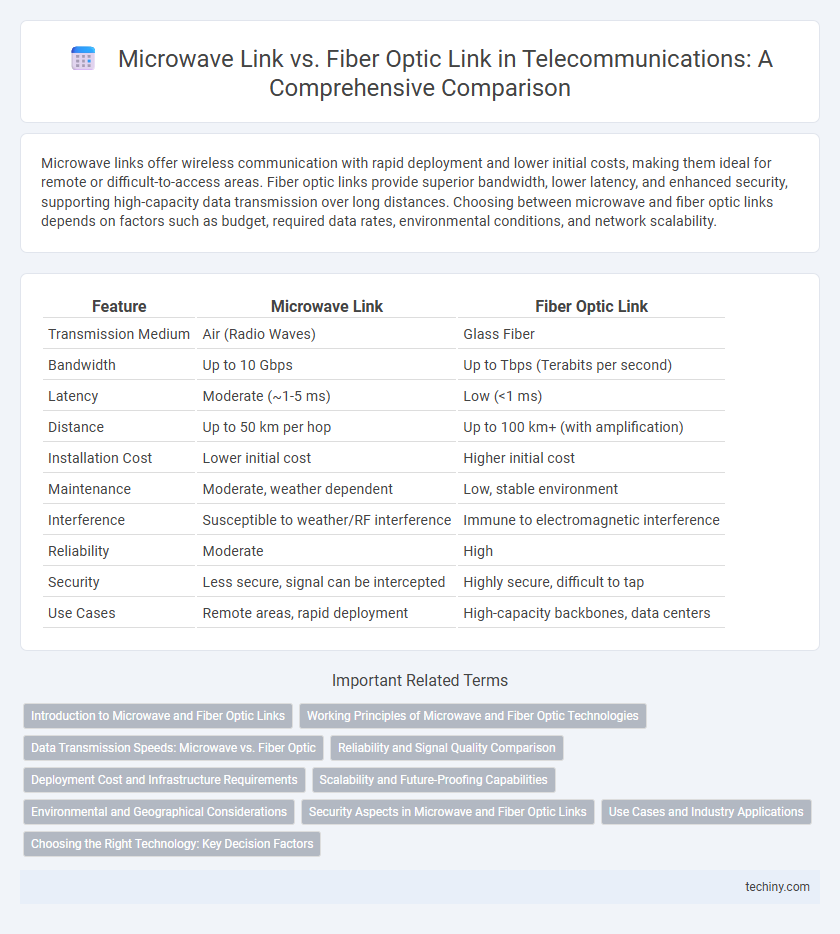

Microwave Link vs Fiber Optic Link Infographic
