techiny.com Voltage Standing Wave Ratio (VSWR) and return loss are critical metrics in telecommunications used to evaluate the efficiency of signal transmission through cables and antennas. VSWR measures the ratio of the maximum to minimum voltage on a transmission line, indicating the level of signal reflection, while return loss quantifies the power loss caused by these reflections in decibels. Lower VSWR and higher return loss values signify better impedance matching, minimizing signal degradation and enhancing overall network performance.
Table of Comparison
| Parameter | VSWR (Voltage Standing Wave Ratio) | Return Loss (dB) |
|---|---|---|
| Definition | Ratio of maximum to minimum voltage in a standing wave pattern on a transmission line | Measure of reflected signal power relative to incident power at a connection point |
| Formula | VSWR = (1 + |G|) / (1 - |G|), where G is the reflection coefficient | Return Loss = -20 log10 |G| (in decibels) |
| Range | 1 (ideal) to infinity (worst mismatch) | 0 dB (worst) to infinity dB (ideal) |
| Interpretation | Lower VSWR indicates better impedance matching | Higher return loss indicates better impedance matching |
| Typical Values (Good) | 1.0 to 1.5 | > 14 dB |
| Usage | Commonly used in antenna and RF system tuning | Used in cable testing and network analysis |
| Measurement | Requires directional coupler and VSWR meter | Measured with a network analyzer or reflectometer |
Understanding VSWR in Telecommunications
Voltage Standing Wave Ratio (VSWR) measures the efficiency of power transmission in telecommunications systems by indicating the degree of impedance mismatch between the transmission line and load. A VSWR value close to 1:1 signifies minimal signal reflection and optimal power transfer, improving the quality of data transmission. Understanding VSWR helps engineers optimize antenna and line design to reduce signal loss and enhance network reliability.
What is Return Loss?
Return loss measures the amount of signal power reflected back to the source due to impedance mismatches in a transmission line, expressed in decibels (dB). It quantifies how effectively a device or cable transmits radio frequency signals without reflections that cause signal degradation. Higher return loss values indicate better impedance matching and lower reflected power, critical for maintaining signal integrity in telecommunications systems.
The Relationship Between VSWR and Return Loss
Voltage Standing Wave Ratio (VSWR) and return loss both quantify signal reflection in telecommunications, where a lower VSWR corresponds to higher return loss, indicating better impedance matching. Mathematically, return loss (in dB) is calculated as -20*log10((VSWR-1)/(VSWR+1)), showing the inverse logarithmic relationship between the two parameters. Understanding this relationship is crucial for optimizing antenna performance and minimizing transmission line losses in RF systems.
Importance of VSWR and Return Loss in Network Performance
VSWR (Voltage Standing Wave Ratio) and Return Loss are critical metrics for assessing signal integrity and minimizing reflections in telecommunications networks. Low VSWR values indicate efficient power transfer with minimal signal reflection, while high Return Loss signifies effective impedance matching, both essential for maintaining network reliability and optimal data transmission. Monitoring these parameters helps prevent signal degradation, boost overall network performance, and reduce maintenance costs.
Calculating VSWR and Return Loss
Calculating Voltage Standing Wave Ratio (VSWR) involves measuring the ratio of the maximum to minimum voltage on a transmission line, which quantifies signal reflection caused by impedance mismatch. Return loss is calculated by converting the reflection coefficient into decibels, representing the amount of power reflected back towards the source. Accurate computation of VSWR and return loss is essential for optimizing antenna performance and minimizing signal degradation in telecommunications systems.
Interpreting Measurement Results
VSWR (Voltage Standing Wave Ratio) and return loss both quantify signal reflection in telecommunications but provide different perspectives; a lower VSWR indicates better impedance matching, while a higher return loss value reflects less signal reflection. Interpreting these measurements involves understanding that a VSWR close to 1:1 corresponds to minimal return loss, typically above 20 dB, signifying efficient transmission line performance. Accurate evaluation of these parameters helps optimize antenna systems, minimize signal degradation, and improve overall network reliability.
Common Causes of High VSWR and Low Return Loss
High Voltage Standing Wave Ratio (VSWR) and low return loss in telecommunications systems commonly stem from impedance mismatches in transmission lines or faulty connectors. Other frequent causes include damaged cables, poor cable terminations, and antenna misalignment, which lead to reflected signals and signal degradation. Regular inspection and maintenance of connectors and cables are essential to minimize these issues and ensure optimal system performance.
Mitigating VSWR and Improving Return Loss
Mitigating VSWR involves optimizing antenna matching and using high-quality connectors to minimize signal reflections, which reduces power loss and prevents damage to transmission equipment. Improving return loss requires precise impedance matching and employing appropriate transmission line techniques to maximize energy transfer and signal integrity. Both strategies enhance overall system reliability, boosting communication efficiency in telecommunications networks.
VSWR vs Return Loss: Advantages and Limitations
VSWR (Voltage Standing Wave Ratio) quantifies the efficiency of power transmission in a telecommunications system by measuring the ratio of incident to reflected signals, where a lower VSWR indicates better impedance matching. Return loss represents the amount of signal power reflected back to the source, expressed in decibels (dB), with higher return loss values signifying superior signal integrity. While VSWR provides a straightforward ratio useful for quick impedance assessments, return loss offers a more precise and scalable metric for evaluating reflection severity, but both parameters are critical for diagnosing and optimizing antenna performance and transmission line quality.
Industry Standards and Best Practices
VSWR (Voltage Standing Wave Ratio) and Return Loss are critical metrics in telecommunications for assessing transmission line quality and antenna performance, with industry standards such as IEEE 802 and ITU-T G.992 defining acceptable limits to ensure signal integrity. Best practices emphasize maintaining a VSWR below 1.5:1 and a return loss greater than 20 dB to minimize reflections and maximize power transfer, aligning with specifications outlined by organizations like the Telecommunications Industry Association (TIA). Regular testing using calibrated network analyzers and adherence to these standardized thresholds are essential for optimizing network reliability and reducing signal degradation.

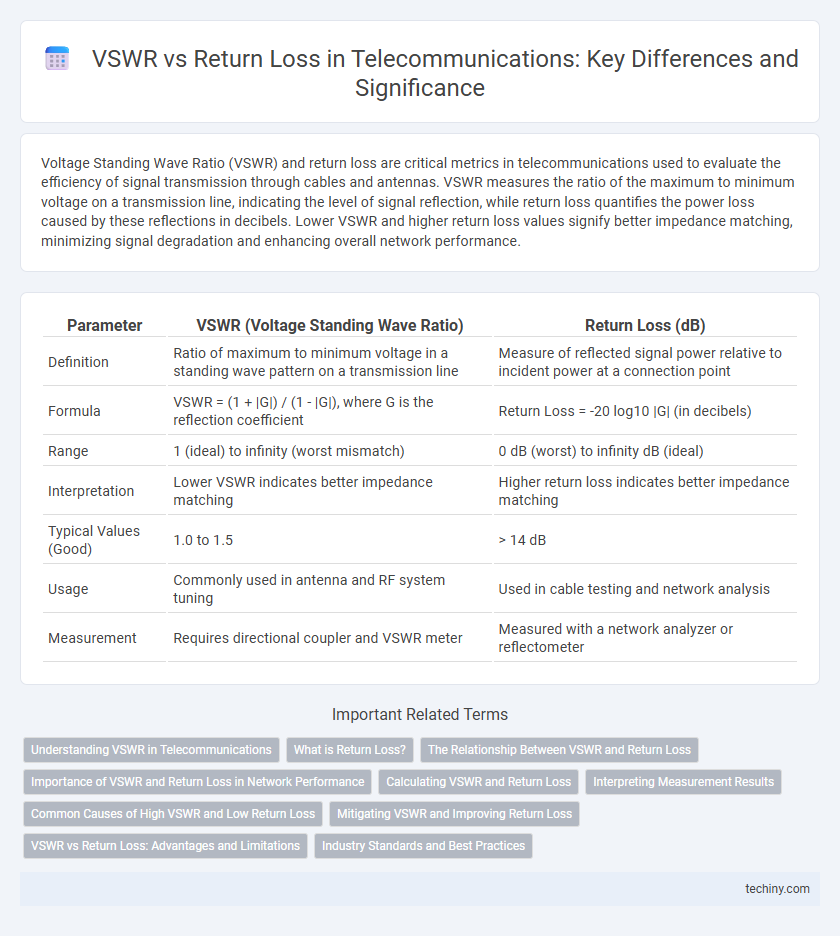

VSWR vs return loss Infographic
