techiny.com A curing station in 3D printing pet resin is essential for hardening and solidifying prints through UV light exposure, enhancing durability and final quality. In contrast, a washing station cleans off excess resin from the prints, preventing surface defects and ensuring smooth finishes. Both stations play crucial roles in post-processing, but curing is focused on strengthening while washing emphasizes cleanliness.
Table of Comparison
| Feature | Curing Station | Washing Station |
|---|---|---|
| Purpose | Finalizes resin 3D prints by UV light curing | Removes uncured resin from prints using isopropyl alcohol |
| Process | UV light exposure for polymerization | Ultrasonic or agitation-based resin cleaning |
| Time Required | 5-30 minutes depending on print size | 5-15 minutes per cleaning cycle |
| Output Quality | Improves print hardness and durability | Ensures smooth surfaces free of sticky resin |
| Equipment | UV LED lamps, rotating platforms | Cleaning tanks, ultrasonic cleaners, IPA reservoirs |
| Use Case | Post-wash step before final assembly or painting | Initial post-print step to prepare for curing |
Introduction to 3D Printing Post-Processing
Curing stations and washing stations are essential components of 3D printing post-processing workflows, particularly for resin-based prints. Washing stations remove uncured resin from the print surface using isopropyl alcohol or specialized cleaning solutions, ensuring surface smoothness and detail preservation. Curing stations use controlled UV light exposure to solidify the resin fully, enhancing mechanical strength and dimensional stability of the final printed object.
What is a Curing Station?
A curing station in 3D printing is a dedicated device designed to harden and strengthen resin prints through controlled exposure to ultraviolet (UV) light and heat, ensuring optimal mechanical properties and surface finish. Unlike washing stations, which clean residual resin from prints using isopropyl alcohol or similar solvents, curing stations complete the post-processing by solidifying the cured material. Effective post-curing improves dimensional stability, enhances durability, and prevents tackiness in stereolithography (SLA) and digital light processing (DLP) printed parts.
What is a Washing Station?
A washing station in 3D printing is a dedicated device used to clean resin prints by removing uncured resin residue from the surface after printing. It typically uses isopropyl alcohol or specialized cleaning solutions in combination with agitation or ultrasonic cleaning to ensure thorough removal of excess resin. Proper washing is essential to prepare the print for the subsequent curing process, improving surface quality and final durability.
Key Differences: Curing vs Washing Station
A curing station in 3D printing utilizes controlled UV light and heat to solidify resin prints, enhancing their strength and durability, while a washing station removes excess resin from printed models using solvents like isopropyl alcohol, ensuring surface cleanliness and detail preservation. Curing focuses on post-processing polymerization, whereas washing emphasizes cleaning to prevent surface tackiness and improve print quality. Proper use of both stations sequentially is critical for achieving optimal mechanical properties and aesthetic finish in resin-based 3D prints.
How Each Station Impacts Print Quality
A curing station enhances print quality by solidifying resin prints through controlled UV light exposure, improving mechanical strength and surface finish. A washing station removes excess resin and contaminants, preventing defects and ensuring finer detail retention in the final model. Both stations are critical; curing stabilizes structural integrity while washing guarantees clean, precise printing outcomes.
Compatibility with 3D Printer Resin Types
Curing stations must be compatible with specific resin types to properly harden printed models using appropriate UV wavelengths and intensities, ensuring optimal mechanical properties and surface finish. Washing stations require compatibility with solvents that effectively clean uncured resin residues without damaging delicate prints or the resin's chemical properties. Matching both curing and washing stations with the 3D printer's resin formulation enhances print quality and durability by preserving resin integrity throughout post-processing.
Time and Efficiency Comparison
Curing stations and washing stations serve distinct roles in the 3D printing post-processing workflow, with curing stations focusing on UV light hardening to enhance print strength, often requiring 10-30 minutes per batch. Washing stations efficiently remove uncured resin using isopropyl alcohol or other solvents, typically completing this process within 5-10 minutes, significantly reducing overall post-print time. Prioritizing efficiency, an optimized post-processing setup integrates fast washing cycles with precise curing durations to balance throughput and print quality.
User Safety Considerations
Curing stations in 3D printing use UV light to solidify resins, requiring users to wear protective gloves and eyewear to avoid skin irritation and eye damage. Washing stations employ solvents like isopropyl alcohol to clean prints, necessitating proper ventilation and chemical-resistant gloves to prevent inhalation of fumes and skin contact. Both stations demand adherence to safety protocols to minimize exposure to hazardous materials and ensure a safe printing environment.
Cost Analysis: Investment and Maintenance
Investment costs for curing stations in 3D printing typically exceed those of washing stations due to advanced UV light technology and precise temperature controls required for resin hardening. Maintenance expenses for curing stations also tend to be higher, involving periodic replacement of UV lamps and calibration, whereas washing stations mainly require routine cleaning and solvent replacement. Evaluating total cost of ownership reveals washing stations offer lower initial and ongoing costs, making them more budget-friendly for smaller operations.
Choosing the Right Station for Your Needs
Selecting the appropriate station for your 3D printing workflow depends on the specific post-processing requirements of your resin prints. Curing stations use UV light to solidify and strengthen prints, ensuring optimal mechanical properties and durability, while washing stations efficiently remove residual resin using isopropyl alcohol or specialized solvents, preventing surface defects and improving print quality. Understanding the material compatibility and desired finish will guide you in choosing between curing, washing, or a combined station to achieve the best results for your 3D models.

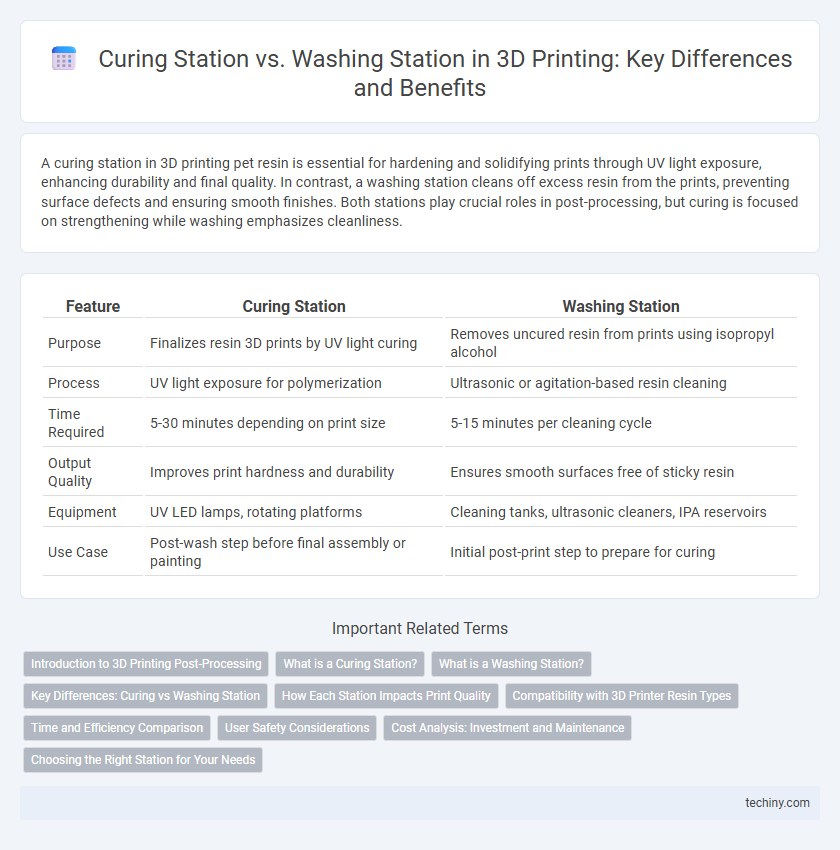

Curing station vs Washing station Infographic
