techiny.com Layer height in 3D printing directly impacts the print's resolution, with smaller layer heights producing finer details and smoother surfaces. A lower layer height enhances the accuracy of pet figurines by capturing intricate features, while higher layer heights speed up printing but reduce detail quality. Balancing layer height and resolution is crucial for achieving both precision and efficiency in 3D printing pet models.
Table of Comparison
| Aspect | Layer Height | Resolution |
|---|---|---|
| Definition | Thickness of each printed layer | Minimum detail size printable horizontally |
| Unit | Millimeters (mm) | Dots Per Inch (DPI) or microns (um) |
| Impact on Print Quality | Affects vertical surface smoothness | Determines horizontal detail sharpness |
| Typical Range | 0.05 mm to 0.3 mm | 50 - 300 DPI or 50 - 300 microns |
| Print Speed | Higher layer height = faster printing | Higher resolution = slower printing |
| Best for | Large parts with less detail | Fine details and intricate models |
Understanding Layer Height in 3D Printing
Layer height in 3D printing defines the thickness of each deposited layer and directly impacts surface smoothness and print detail; smaller layer heights yield finer resolution but require longer print times. Understanding the trade-off between layer height and layer resolution helps optimize print quality according to the specific application, balancing speed and precision. Precise control of layer height is crucial for achieving optimal mechanical properties and visual aesthetics in 3D printed objects.
Defining Print Resolution: What Does It Really Mean?
Print resolution in 3D printing refers to the smallest detail a printer can accurately reproduce, primarily influenced by layer height and XY resolution. Layer height determines vertical resolution by controlling the thickness of each printed layer, with smaller heights producing finer details and smoother surfaces. XY resolution relates to the horizontal precision of the printer's movements, affecting the accuracy of the printer's ability to render fine features along the X and Y axes.
How Layer Height Impacts Print Quality
Layer height directly influences 3D print quality by determining the vertical resolution of each printed layer, with smaller layer heights producing finer surface detail and smoother finishes. A reduced layer height minimizes visible layer lines and improves the accuracy of intricate features, though it increases print time and material usage. Optimizing layer height balances detail precision and print efficiency, crucial for high-resolution 3D models and functional prototypes.
Resolution vs. Layer Height: Key Differences
Resolution in 3D printing defines the printer's ability to reproduce fine details and surface texture, measured in X, Y, and Z axes, while layer height specifically refers to the Z-axis thickness of each printed layer. A smaller layer height results in smoother surfaces and finer vertical detail, but resolution encompasses the overall precision, including horizontal accuracy and nozzle diameter. Understanding the distinction helps optimize print quality, balancing speed and detail according to the printer's mechanical specifications and the desired output fidelity.
Benefits of Lower Layer Heights
Lower layer heights in 3D printing enhance print resolution by producing finer, more detailed surfaces and reducing visible layer lines, resulting in smoother finishes. This precision benefits intricate models and complex geometries, improving overall aesthetic quality and functional performance. While slower print speeds are a trade-off, the superior detail achieved makes lower layer heights ideal for high-accuracy prototypes and delicate designs.
Trade-offs: Speed versus Detail in 3D Printing
Layer height in 3D printing directly impacts resolution and print speed, with thinner layers producing finer details but increasing print time significantly. Larger layer heights accelerate the printing process but sacrifice surface smoothness and intricate feature quality. Balancing layer height is crucial for optimizing the trade-off between detailed resolution and efficient print speed in varied 3D printing applications.
Material Considerations for Layer Height and Resolution
Material properties directly influence the optimal layer height and resolution in 3D printing, as flexible or abrasive filaments often require coarser layers for better adhesion and nozzle durability. High-resolution printing with thinner layers suits materials like PLA and resin, which can accurately capture fine details without compromising strength. Adjusting layer height based on material viscosity and thermal behavior ensures print quality and mechanical performance are balanced effectively.
Choosing the Right Settings for Your Project
Selecting the ideal layer height significantly impacts print resolution and surface quality in 3D printing projects. Finer layer heights, such as 0.1 mm or below, enhance detail and smoothness, ideal for intricate models, while thicker layers, around 0.2-0.3 mm, speed up printing and suit larger, less detailed objects. Balancing layer height with nozzle size and printer capabilities ensures optimal resolution tailored to the specific requirements and desired finish of your print.
Troubleshooting Common Layer Height Issues
Common layer height issues in 3D printing include visible layer lines, poor adhesion, and inconsistent extrusion, often caused by incorrect settings or hardware limitations. Lowering the layer height improves print resolution but may increase print time and require precise calibration of the extruder and bed leveling. Troubleshooting involves adjusting the layer height incrementally, verifying filament quality, and ensuring the printer firmware supports fine resolution to achieve optimal print quality.
Best Practices for Optimal Layer Height and Resolution
Selecting the optimal layer height in 3D printing directly influences the print resolution and surface quality, with finer layers (typically 0.1-0.15 mm) yielding higher resolution and smoother finishes. Best practices recommend balancing layer height with nozzle diameter, as using a layer height between 25% to 75% of the nozzle size maximizes print strength and detail accuracy while minimizing print time. Regular calibration and testing of layer height settings ensure consistent dimensional accuracy and optimal resolution across different 3D printing materials and models.

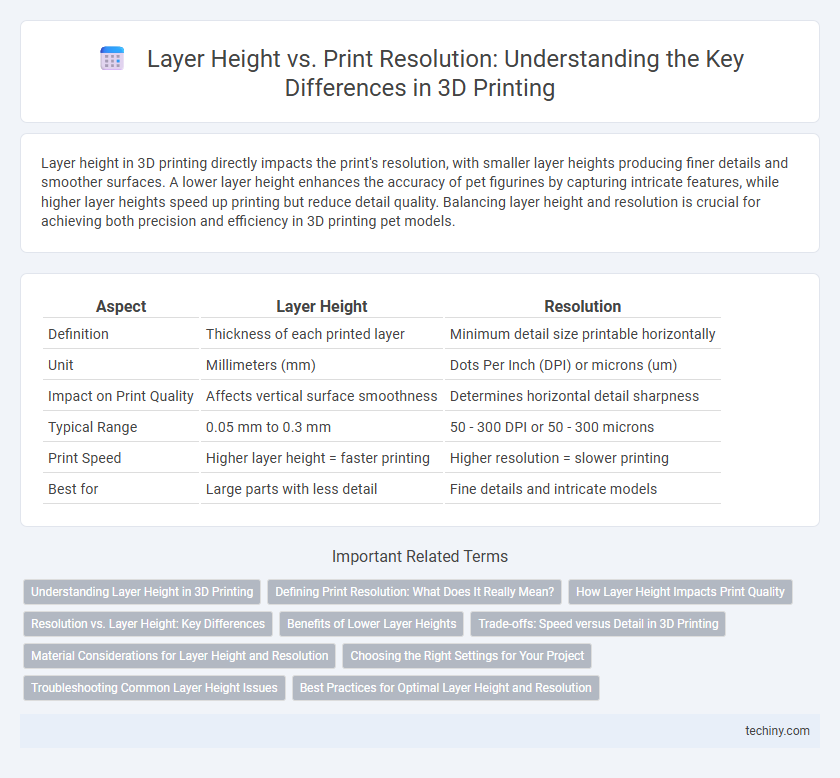

Layer Height vs Resolution Infographic
