techiny.com Bowden extruders offer reduced weight on the print head, improving speed and minimizing vibrations for smoother prints on 3D-printed pet models. Direct drive systems provide better filament control and retraction, essential for detailed and flexible pet accessories without stringing or blobbing. Choosing between Bowden and direct drive depends on the balance between print speed and precision required for customized pet designs.
Table of Comparison
| Feature | Bowden Extruder | Direct Drive |
|---|---|---|
| Filament Path | Long tube from extruder to hotend | Extruder mounted directly on the hotend |
| Weight on Print Head | Lightweight, reduces moving mass | Heavier, increases moving mass |
| Print Speed | Higher speeds due to lighter print head | Moderate speeds, limited by added weight |
| Retraction Control | Less precise, possible stringing | More precise, better stringing control |
| Filament Types | Best for flexible filaments | Works well with rigid and flexible filaments |
| Maintenance | Easier filament replacement, tube may clog | Direct filament feed, easier troubleshooting |
| Cost | Typically lower cost | Typically higher cost |
| Best Use Case | High-speed prints, large printers | Precision prints, flexible filament usage |
Introduction to 3D Printer Extruders
3D printer extruders are crucial components responsible for feeding filament into the hotend for melting and deposition. Bowden extruders position the motor away from the hotend, reducing moving mass and enabling faster print speeds with lighter print heads. Direct drive extruders have the motor mounted directly on the print head, offering improved control over flexible filaments and more precise extrusion, making them suitable for complex prints requiring high accuracy.
What is a Bowden Extruder?
A Bowden extruder is a type of 3D printer extruder where the filament is pushed through a long PTFE tube from a motor mounted away from the hotend, reducing the weight on the moving printhead. This setup allows for faster print speeds and less inertia, improving print quality on lightweight printers like delta or CoreXY models. However, it may struggle with flexible filaments due to the increased distance between the drive gear and the hotend.
What is a Direct Drive Extruder?
A Direct Drive extruder features a compact design where the motor is mounted directly on the print head, allowing precise control over filament extrusion. This setup minimizes filament retraction issues and enhances printing of flexible materials by reducing distance between the drive gear and hotend. Direct Drive extruders improve print accuracy and responsiveness, especially beneficial for complex or detailed 3D models.
Core Differences: Bowden vs Direct Drive
Bowden extruders position the motor away from the hotend, reducing the moving mass and enabling faster print speeds with less inertia. Direct drive systems mount the motor directly on the print head, resulting in improved filament control and better performance with flexible materials. The core difference lies in the filament path length, where Bowden setups have longer paths causing potential retraction issues, while direct drives offer more precise extrusion due to shorter filament travel.
Print Quality Comparison
Bowden extruders offer reduced weight on the print head, which can enhance printing speed but may introduce slight filament retraction issues affecting print quality, especially with flexible materials. Direct drive systems provide more precise filament control due to the motor being mounted close to the hotend, resulting in improved accuracy and detail, particularly in complex or flexible filament prints. Overall, direct drive extruders generally deliver superior print quality with fewer stringing and under-extrusion problems compared to Bowden setups.
Speed and Precision Analysis
Bowden extruders enable faster printing speeds due to reduced moving mass, enhancing overall printer agility and minimizing inertia-related issues. Direct drive systems offer superior precision and control over filament retraction, resulting in improved print quality, especially with flexible materials. Speed trade-offs exist as Bowden setups excel in rapid, less intricate prints, while direct drive prioritizes accuracy in complex, detail-intensive models.
Filament Compatibility and Flexibility
Bowden extruders excel in printing with rigid filaments such as PLA and ABS due to their reduced moving mass, offering faster print speeds and smoother motion. Direct drive extruders provide superior compatibility with flexible filaments like TPU and TPE by minimizing filament path length and enhancing extrusion control. Selecting between Bowden and direct drive setups depends on the priority of filament flexibility and specific material requirements for optimal 3D printing performance.
Maintenance and Ease of Use
Bowden extruders require less frequent maintenance due to their remote motor placement, reducing wear on the printhead and simplifying filament feeding. Direct drive systems offer easier filament changes and better control for flexible materials, though they may demand more regular cleaning and calibration. Choosing between the two depends on balancing maintenance preferences with the desired print quality and material versatility.
Pros and Cons: Bowden vs Direct Drive
Bowden extruders offer reduced moving mass, enabling faster print speeds and less vibration, which improves print quality on lightweight print heads, but they can struggle with flexible filaments due to increased filament path length. Direct drive extruders provide superior retraction control and better handling of flexible and specialty filaments by placing the motor directly on the print head, yet their added weight may limit print speed and increase wear on mechanical components. Choosing between Bowden and direct drive systems depends on the filament types used and the desired balance between speed, precision, and printer maintenance.
Which Extruder is Best for Your 3D Printing Needs?
Choosing between a Bowden extruder and a direct drive depends on your 3D printing requirements such as filament type, print speed, and precision. Bowden extruders offer lighter print heads and faster movement, ideal for high-speed printing with flexible filaments requiring less retraction. Direct drive systems provide better control and precision for flexible and specialty filaments by minimizing filament path length and enabling reliable extrusion in complex prints.

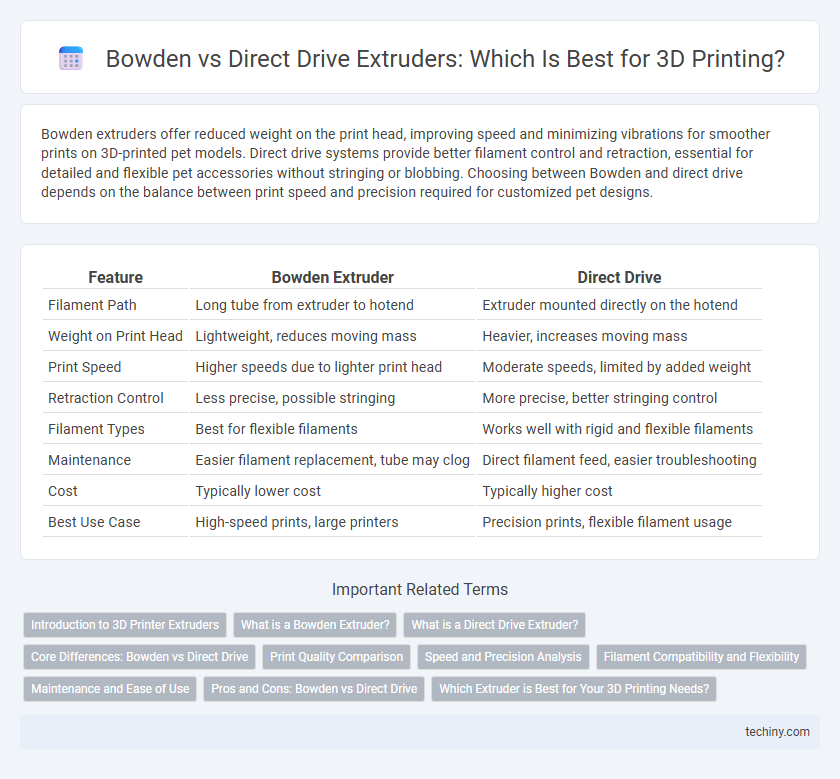

Bowden Extruder vs Direct Drive Infographic
