techiny.com Support material in 3D printing is crucial for creating overhangs and complex geometries by providing temporary structures that are removed after printing, while infill refers to the internal framework that determines the strength and weight of the printed pet model. Choosing the right balance between support material and infill density enhances the durability and aesthetic quality of 3D printed pet figures. Optimizing support material reduces cleanup time, whereas adjusting infill patterns influences the pet model's structural integrity and material usage.
Table of Comparison
| Feature | Support Material | Infill |
|---|---|---|
| Purpose | Provides structural support for overhangs and complex geometries | Fills internal volume for part strength and weight control |
| Material Usage | Consumed only where needed under overhangs | Distributed throughout internal part volume |
| Removal | Removed post-print manually or dissolved (if water-soluble) | Remains inside the part permanently |
| Impact on Print Time | Increases print time depending on complexity and support volume | Increases print time relative to infill percentage |
| Strength Contribution | Minimal; mainly temporary structure | Significant; directly affects part mechanical strength |
| Common Materials | PVA, HIPS, same as main material or specialized dissolvable support | Same as main print material (PLA, ABS, PETG, etc.) |
Introduction to Support Material and Infill in 3D Printing
Support material in 3D printing is used to stabilize overhanging parts and complex geometries during the printing process, preventing sagging or collapse. Infill refers to the internal structure of a 3D printed object, providing strength and rigidity while minimizing material usage. Both support material and infill are crucial for achieving optimal print quality and structural integrity in various 3D printing applications.
Defining Support Material: Purpose and Types
Support material in 3D printing refers to temporary structures printed to uphold overhanging or complex geometries that cannot be built mid-air. Its primary purpose is to prevent deformation, sagging, or collapse during the layering process, ensuring dimensional accuracy and surface quality. Common types include breakaway supports, which are manually removed after printing, dissolvable supports made from water-soluble filaments like PVA or HIPS, and tree-like supports designed to minimize material usage and facilitate easier removal.
Understanding Infill: Function and Patterns
Infill in 3D printing refers to the internal structure within a printed object that provides strength and stability without using solid material throughout, optimizing material use and print time. Common infill patterns include grid, honeycomb, and gyroid, each offering different balances of strength, flexibility, and material efficiency tailored to specific functional requirements. Understanding infill density and pattern selection is crucial for achieving desired mechanical properties while reducing weight and material costs.
Key Differences: Support Material vs Infill
Support material in 3D printing is a temporary structure designed to uphold overhanging or complex geometries during the printing process, ensuring the model maintains its shape and detail. Infill, on the other hand, refers to the internal lattice or pattern that fills the interior of a 3D printed object, providing structural strength and reducing material usage. Key differences include their functions--support material is removed after printing, while infill remains part of the final product--and their placement, with support material located outside or beneath overhangs, contrasting with infill's position inside the model's walls.
Material Choices for Support Structures
Support material in 3D printing is designed to be easily removable and often uses water-soluble compounds like PVA or HIPS to enable clean separation from the main print. Infill materials, typically the same as the primary build material such as PLA or ABS, prioritize structural integrity rather than dissolution characteristics. Selecting the appropriate support material depends on the printer type, print complexity, and the need for post-processing ease, with dual-extruder printers offering greater flexibility for optimized material combinations.
Infill Density: Impact on Strength and Weight
In 3D printing, infill density directly affects the mechanical strength and weight of a printed object; higher infill percentages increase structural integrity but also add weight and material usage. Support material serves primarily to stabilize overhangs and complex geometries during printing, not to influence the object's internal strength. Optimizing infill density balances durability and material efficiency, crucial for functional prototypes and end-use parts.
Removal Processes: Supports vs Infill
Support material in 3D printing is designed to be easily removable, often using water-soluble or breakaway materials that minimize post-processing time. Infill, on the other hand, remains inside the printed object to provide structural integrity and is typically not removed, making its design crucial for balancing strength and material usage. Efficient support removal techniques, such as using dissolvable supports, significantly reduce labor, whereas infill patterns must be optimized during slicing to ensure internal stability without complicating the print.
Cost Implications: Support Material and Infill Use
Support material in 3D printing increases overall production cost due to additional filament consumption and longer print times, especially for complex geometries requiring extensive scaffolding. Infill density directly impacts material usage and structural integrity, with higher densities raising costs but improving part strength, while lower densities reduce expenses but may compromise durability. Balancing support material and infill parameters is crucial for cost-effective printing without sacrificing the functional quality of the final product.
Optimizing Print Quality with Proper Support and Infill
Optimizing print quality in 3D printing requires balancing support material and infill density to ensure structural integrity and surface finish. Support material provides temporary scaffolding for overhangs and complex geometries, preventing sagging and deformation, while properly calibrated infill enhances part strength and reduces material use. Selecting appropriate support patterns and infill percentages tailored to the model's functional requirements minimizes post-processing efforts and improves overall print precision.
Best Practices for Balancing Support and Infill in 3D Prints
Optimizing 3D print quality requires a strategic balance between support material and infill density to ensure structural integrity without excessive use of resources. Best practices involve minimizing support structures by adjusting model orientation and leveraging precise infill patterns like gyroid or honeycomb to enhance strength while reducing print time and material consumption. Employing slicer software settings such as variable support density and customizable infill percentages enables fine-tuning that maximizes print stability and surface finish quality.

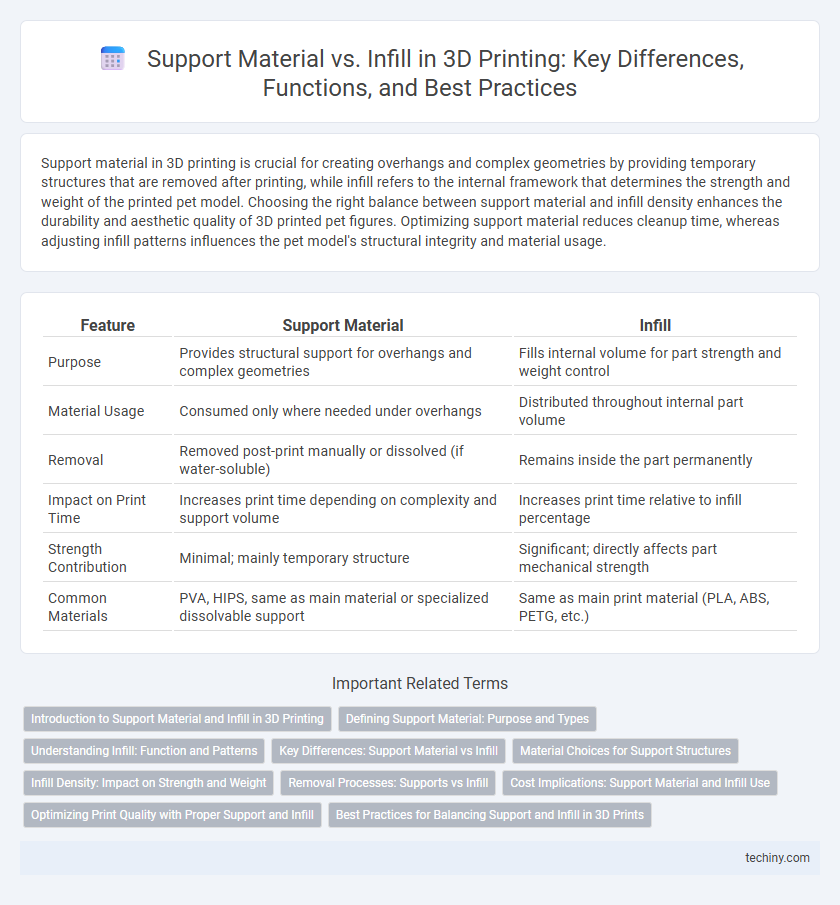

Support Material vs Infill Infographic
