techiny.com Filament and resin represent two primary materials used in 3D printing pets, each offering distinct advantages in detail and durability. Filament-based 3D printing produces sturdier models with a layered texture, ideal for robust pet figures, while resin printing excels in delivering high-resolution, smooth finishes perfect for intricate pet designs. Choosing between filament and resin depends on the desired balance between toughness and fine detail in the final 3D printed pet.
Table of Comparison
| Feature | Filament (FDM) | Resin (SLA/DLP) |
|---|---|---|
| Print Technology | Fused Deposition Modeling (FDM) | Stereolithography (SLA) / Digital Light Processing (DLP) |
| Material | Thermoplastic Filaments (PLA, ABS, PETG) | Photopolymer Resin |
| Print Resolution | Moderate (Layer height ~100-300 microns) | High (Layer height ~25-100 microns) |
| Detail & Surface Finish | Lower detail, visible layer lines | High detail, smooth surface |
| Print Speed | Faster for large parts | Slower, layer-by-layer curing |
| Cost | Lower material and printer cost | Higher material and printer cost |
| Post-Processing | Minimal (removal of supports) | Extensive (washing, curing, support removal) |
| Durability | Generally strong and flexible | Brittle and less flexible |
| Toxicity & Safety | Low toxicity, safe ventilation | Resin fumes toxic, requires ventilation & PPE |
Understanding Filament and Resin Printing Technologies
Filament printing, also known as Fused Deposition Modeling (FDM), uses thermoplastic filaments melted and extruded layer by layer to create objects, offering affordability and ease of use. Resin printing, or Stereolithography (SLA), utilizes photosensitive liquid resin cured by UV light for high-resolution, detailed prints suitable for prototypes and models. Understanding the material properties and printing mechanisms helps in selecting the appropriate technology based on project requirements and desired print quality.
Material Properties: Filament vs. Resin
Filament materials, such as PLA and ABS, are thermoplastics that offer flexibility, strength, and durability ideal for functional parts and prototypes. Resin used in SLA printing provides superior resolution and intricate detail with a smooth surface finish, but tends to be more brittle and less heat-resistant compared to filament. Understanding the mechanical properties, like tensile strength and elongation at break, helps determine the appropriate material choice based on application requirements.
Print Quality and Detail Comparison
Filament-based 3D printing, utilizing materials like PLA or ABS, offers robust prints with moderate surface detail suitable for functional prototypes and larger models. Resin printing excels in delivering superior print quality, capturing intricate details and smooth finishes due to its photopolymerization process, ideal for miniatures and highly detailed parts. In terms of resolution, resin printers typically achieve layer heights as low as 25 microns, significantly finer than the 100-200 microns common in filament printing, resulting in more precise and detailed outputs.
Speed and Efficiency in 3D Printing
Filament-based 3D printing, typically using FDM technology, offers faster print times for larger, less detailed objects due to its efficient layer-by-layer extrusion process. Resin printing, often utilizing SLA or DLP methods, provides higher resolution and finer details but generally requires longer curing and post-processing times, impacting overall speed. Choosing between filament and resin depends on the balance between desired print speed and the level of detail required for the project.
Post-Processing Requirements
Filament 3D printing with FDM technology typically requires minimal post-processing, such as removing support structures and light sanding for surface smoothing. Resin 3D printing using SLA or DLP methods demands extensive post-processing, including washing in isopropyl alcohol to remove uncured resin and curing under UV light to achieve full material strength. The choice between filament and resin directly affects the time and complexity of post-processing workflows, influencing overall print turnaround and finish quality.
Cost Analysis: Filament vs. Resin Printing
Filament printing generally offers lower material costs, with PLA filament averaging around $20 per kilogram compared to resin prices, which can range from $50 to $150 per liter depending on type and quality. Although resin printing provides higher resolution and finer details, the increased expense of resin and required post-processing materials, such as isopropyl alcohol and gloves, contribute to higher overall costs. Filament printers also tend to have lower maintenance costs and longer service intervals, making filament a more cost-effective choice for budget-conscious 3D printing applications.
Health and Safety Considerations
Filament-based 3D printing using materials like PLA or ABS produces minimal volatile organic compounds (VOCs), making it generally safer for indoor use with adequate ventilation. Resin-based printing involves photopolymer resins that can emit harmful fumes and cause skin irritation, necessitating gloves, masks, and proper ventilation during handling and post-processing. Proper disposal of resin waste and avoiding direct skin contact are crucial to minimize health risks associated with resin 3D printing.
Best Use Cases for Filament Printers
Filament printers excel in creating durable prototypes, functional parts, and large-scale models due to their cost-effective and widely available thermoplastic materials like PLA, ABS, and PETG. Ideal for hobbyists, educators, and engineers, filament printers support diverse applications from mechanical components to artistic sculptures with ease of use and straightforward post-processing. Their ability to produce strong, flexible, and heat-resistant objects makes them the preferred choice for practical, everyday use and rapid prototyping in various industries.
Best Applications for Resin Printers
Resin printers excel in producing high-detail, smooth-surfaced models ideal for jewelry, dental molds, and miniatures where precision is crucial. Their ability to create complex geometries with fine layer resolutions makes them the preferred choice for prototyping intricate designs and functional parts. Despite higher material costs and slower print speeds compared to filament printers, resin printers deliver superior aesthetics and surface finish, critical for professional and artistic applications.
Choosing the Right 3D Printing Method for Your Needs
Selecting the appropriate 3D printing method depends on project requirements such as detail accuracy, material strength, and post-processing capabilities. Filament-based FDM printers excel in producing durable, functional parts with wider material options, while resin-based SLA printers deliver superior precision and surface finish for intricate designs. Understanding the balance between cost, print speed, and application-specific needs guides the choice between filament and resin technologies.

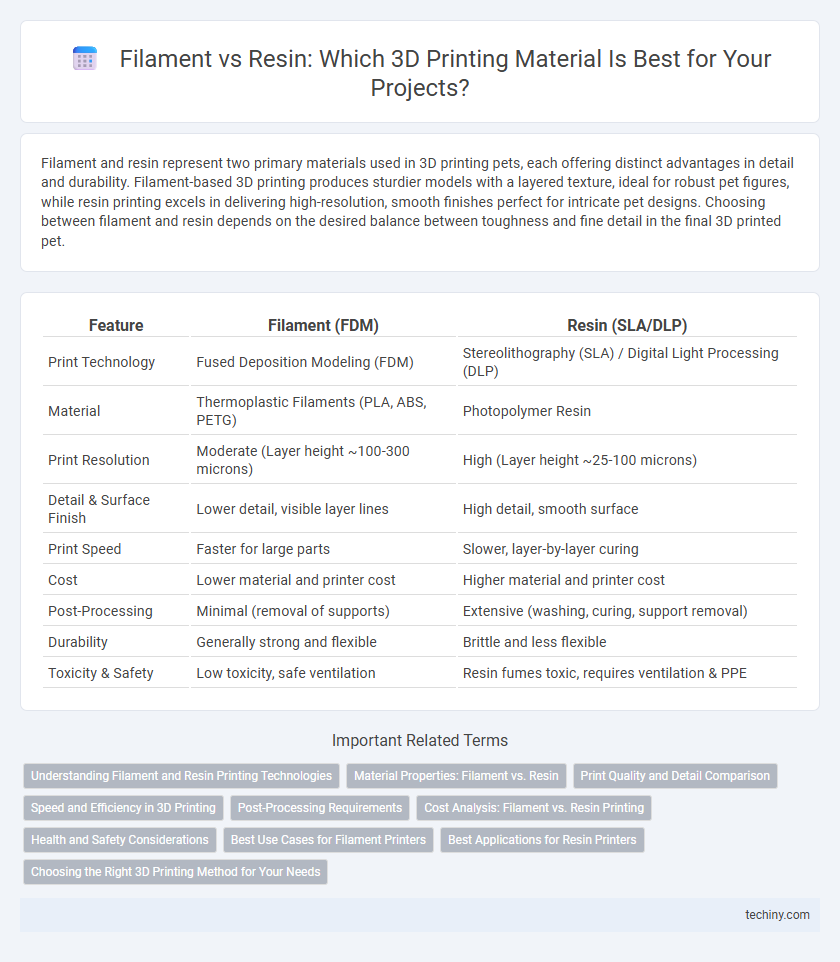

Filament vs Resin Infographic
