techiny.com Linear rails provide superior stability and precision in 3D printing pet projects compared to traditional rod and bearing systems. They minimize play and reduce vibrations, resulting in higher quality prints and more accurate pet toy or accessory models. The improved rigidity of linear rails extends printer lifespan by maintaining alignment and reducing wear over time.
Table of Comparison
| Feature | Linear Rail | Rod and Bearing |
|---|---|---|
| Precision | High accuracy and repeatability | Moderate, prone to wear |
| Load Capacity | Supports heavy loads with minimal deflection | Suitable for light to medium loads |
| Durability | Long-lasting with sealed bearings | Shorter lifespan, exposed components |
| Maintenance | Low maintenance, requires occasional lubrication | Frequent lubrication needed |
| Cost | Higher initial investment | More budget-friendly |
| Installation | Requires precise alignment | Simple setup |
| Smoothness | Consistent smooth motion | Less smooth, potential for binding |
Introduction to Linear Rails and Rods with Bearings
Linear rails offer precise, smooth motion with high rigidity and load capacity, making them ideal for advanced 3D printers requiring accuracy and stability. Rods with bearings provide a cost-effective alternative, delivering sufficient linear guidance for hobbyist printers but often suffer from increased wear and less repeatability over time. Understanding the differences in durability, friction, and maintenance helps optimize 3D printer performance based on project requirements and budget constraints.
Structural Differences: Linear Rail vs Rod and Bearing
Linear rails provide rigid, high-precision guidance through a flat sliding block and recirculating ball bearings, ensuring minimal deflection and smooth motion in 3D printer axes. Rod and bearing systems rely on cylindrical rods paired with linear ball bearings, which allow rotational movement around the rods but often introduce more play and less structural rigidity. The flat surface contact of linear rails reduces vibrations and backlash, enhancing print accuracy compared to the round surface contact inherent in rod and bearing setups.
Load Capacity Comparison
Linear rails offer significantly higher load capacity compared to traditional rods and bearings, making them ideal for heavy-duty 3D printing applications requiring precise movement under substantial weight. Rod and bearing systems often exhibit limited load tolerance and are prone to deflection or wear under high stresses, affecting print accuracy and reliability. Employing linear rails ensures enhanced rigidity and durability, supporting larger print volumes and heavier extruder assemblies with maintained precision.
Precision and Accuracy in 3D Printing
Linear rails offer superior precision and accuracy in 3D printing compared to rod and bearing systems, due to their rigid construction and minimal play. The linear rail's evenly distributed load capacity ensures consistent motion, reducing vibrations and improving layer alignment. Rod and bearing setups often suffer from increased friction and backlash, leading to less stable movements and lower print quality.
Installation and Maintenance Requirements
Linear rails offer straightforward installation with precise alignment features and require periodic lubrication to maintain smooth motion. Rod and bearing systems demand careful adjustment for proper alignment during installation and frequent cleaning to prevent debris buildup affecting performance. Maintenance for linear rails tends to be less intensive compared to rod and bearing setups, which are more susceptible to wear and contamination.
Cost Analysis: Linear Rails vs Rod and Bearing
Linear rails typically cost more upfront compared to rod and bearing systems due to precision manufacturing and higher-quality materials, but they offer superior rigidity and longevity that can reduce maintenance expenses. Rod and bearing systems are generally more affordable initially and easier to source, making them popular for budget-conscious projects, though they may incur higher replacement costs over time due to wear and alignment issues. Evaluating total cost of ownership, including installation, durability, and performance, is crucial for choosing between linear rails and rod and bearing systems in 3D printing applications.
Durability and Lifespan
Linear rails offer superior durability and a longer lifespan compared to rods and bearings due to their high-precision ground surfaces and robust construction, which reduce wear over time. Rod and bearing systems typically experience faster degradation from friction and misalignment, leading to increased maintenance and replacement frequency. Industrial-grade linear rails can maintain smooth operation for tens of thousands of print hours, enhancing 3D printer reliability and performance.
Noise and Vibration Performance
Linear rails provide superior noise and vibration performance compared to rod and bearing systems in 3D printing applications. Their rigid construction and precision ball-bearing design minimize operational vibrations and significantly reduce mechanical noise during high-speed movements. Rod and bearing setups tend to produce more friction and inconsistent motion, resulting in increased noise levels and vibration that can affect print quality.
Compatibility with 3D Printer Designs
Linear rails offer higher precision and rigidity, making them compatible with advanced 3D printer designs that require smooth, accurate motion. Rod and bearing systems are more forgiving and easier to integrate in budget or DIY printers, providing sufficient performance for less demanding prints. Compatibility depends on the printer's design goals, as linear rails suit high-end models, while rods and bearings fit simpler mechanical structures.
Which System is Better for Your 3D Printer?
Linear rails offer higher precision, smoother motion, and increased load capacity compared to rod and bearing systems, making them ideal for high-performance 3D printers requiring accuracy and durability. Rod and bearing setups are generally more affordable and easier to install, suitable for budget-friendly or beginner-level 3D printers with moderate speed and precision needs. Choosing between linear rails and rod and bearing systems depends on the printer's intended use, budget, and performance requirements, with linear rails favored for advanced applications and rod and bearing for cost-effective versatility.

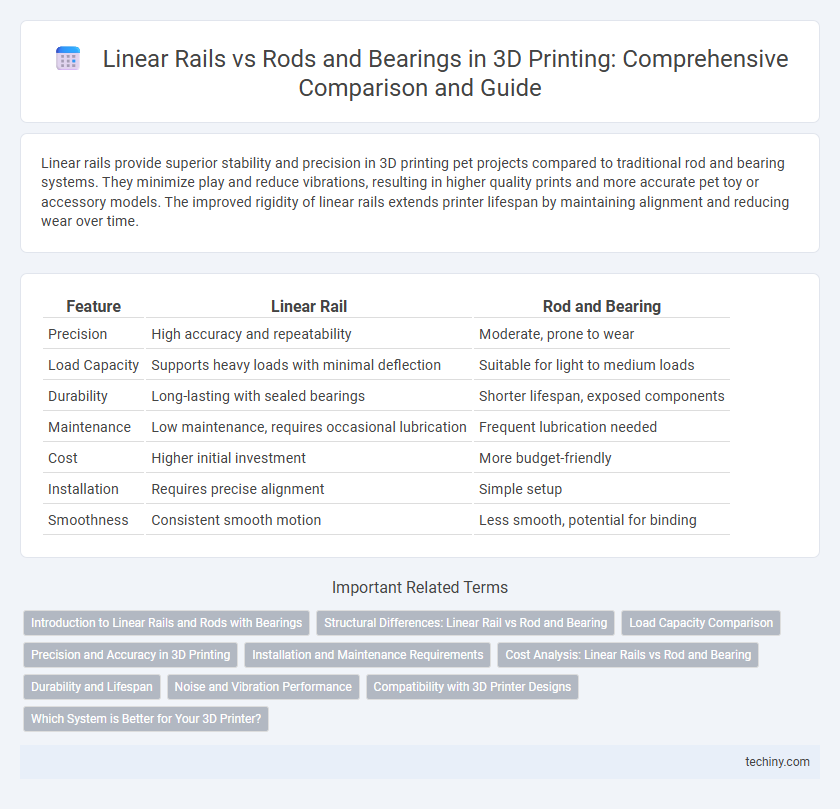

Linear Rail vs Rod and Bearing Infographic
