techiny.com A MAC address is a unique hardware identifier assigned to a network interface card, essential for local network communication and device recognition at the data link layer. An IP address operates at the network layer, enabling devices to locate each other across different networks and route data packets efficiently. Both addresses work together to ensure accurate data transmission, with the MAC address facilitating physical device identification and the IP address managing logical addressing and connectivity.
Table of Comparison
| Feature | MAC Address | IP Address |
|---|---|---|
| Definition | Unique hardware identifier assigned to a network interface | Logical address assigned to a device on a network for communication |
| Format | 48-bit (6 bytes), usually shown as 12 hex digits (e.g., 00:1A:2B:3C:4D:5E) | IPv4: 32-bit numeric, dotted-decimal (e.g., 192.168.1.1) IPv6: 128-bit hexadecimal (e.g., 2001:0db8::1) |
| Scope | Local to the physical network segment | Used across different networks and the internet |
| Assignment | Factory-assigned, burned into the NIC | Assigned via DHCP or configured manually |
| Purpose | Identifies devices on the local network layer (Data Link Layer) | Identifies devices for routing at the Network Layer |
| Uniqueness | Globally unique per device (usually) | May change based on network and subnet |
| Protocol Layer | Layer 2 (Data Link Layer) | Layer 3 (Network Layer) |
| Example Usage | Switch MAC address filtering, ARP tables | Routing, IP addressing, Internet communication |
Understanding MAC Address: Definition and Function
A MAC address is a unique hardware identifier assigned to a network interface card (NIC) for communications within a local network segment. It operates at the data link layer (Layer 2) of the OSI model, providing a permanent physical address used to ensure devices can be uniquely identified on a LAN. Unlike IP addresses, MAC addresses do not change and are essential for frame forwarding and network access control.
What is an IP Address? Purpose and Types
An IP address is a unique numerical identifier assigned to devices on a network, enabling them to communicate and exchange data across the internet or local networks. Its primary purpose is to locate and identify devices, facilitating routing of data packets between source and destination. There are two main types of IP addresses: IPv4, consisting of four octets separated by periods, and IPv6, a newer format with eight groups of hexadecimal digits to accommodate a larger number of devices.
Key Differences Between MAC Address and IP Address
MAC addresses are unique hardware identifiers assigned to network interface cards (NICs) and operate at the data link layer, ensuring device identification within the same local network segment. IP addresses function at the network layer, enabling logical addressing and routing of data packets across different networks through IPv4 or IPv6 protocols. Unlike IP addresses, which can change based on network configuration and location, MAC addresses are typically fixed and burned into the NIC by the manufacturer.
How MAC Addresses Operate in Network Communication
MAC addresses function as unique hardware identifiers assigned to network interface cards (NICs) that enable devices to communicate within the same local area network (LAN). Operating at the data link layer (Layer 2) of the OSI model, MAC addresses facilitate frame forwarding by switches and ensure accurate delivery of data packets between devices on the same subnet. Unlike IP addresses, which are logical and can change based on network topology, MAC addresses are fixed and provide a permanent identifier essential for network access control and traffic management.
Role of IP Addresses in Data Routing
IP addresses are essential for data routing across networks by uniquely identifying devices and enabling packet forwarding through routers based on hierarchical addressing. Unlike MAC addresses, which operate at the data link layer and serve as physical hardware identifiers, IP addresses function at the network layer to determine the optimal path for data transmission between different networks. Routing protocols utilize IP address information to efficiently direct traffic, minimizing latency and ensuring reliable communication in complex network infrastructures.
Layer Comparison: MAC Address (Layer 2) vs IP Address (Layer 3)
MAC addresses operate at Layer 2 of the OSI model, providing unique hardware identification for devices within the same local network segment. IP addresses function at Layer 3, enabling logical addressing and routing of packets across different networks. While MAC addresses are fixed and hardware-based, IP addresses are assigned and can change based on network topology and configuration.
Address Assignment: Static vs Dynamic Approaches
MAC addresses are hardware-assigned unique identifiers embedded in network interface cards, remaining constant regardless of network location. IP addresses can be assigned statically, where a fixed IP is manually configured for consistent network identification, or dynamically through DHCP, which automates IP allocation and simplifies network management. Static IP assignment suits devices requiring stable addresses like servers, while dynamic IP assignment is ideal for general end-user devices to optimize address utilization.
Security Implications: MAC Address vs IP Address
MAC addresses operate at the data link layer and are fixed hardware identifiers, making them harder to change but susceptible to MAC spoofing attacks that can bypass network access controls. IP addresses function at the network layer and are routable, enabling easier tracking and filtering through firewalls and intrusion detection systems, but dynamic allocation methods like DHCP can obscure device identity. Security strategies must account for the inherent differences in address permanence and visibility, using MAC filtering for local network control and IP-based access controls for broader network security enforcement.
Common Use Cases for MAC and IP Addresses
MAC addresses uniquely identify devices on a local network, making them essential for data link layer communication and network access control in LAN environments. IP addresses enable routing and identification of devices across different networks, facilitating internet connectivity and remote communication. Common use cases for MAC addresses include Ethernet and Wi-Fi device authentication, while IP addresses are primarily used for network layer packet routing and managing internet protocols like TCP/IP.
Troubleshooting Network Issues: When to Check MAC or IP Address
Troubleshooting network issues requires understanding when to check the MAC address versus the IP address to pinpoint connectivity problems. MAC addresses are essential for identifying devices on the local network layer and diagnosing issues like ARP conflicts or unauthorized device access. IP addresses help resolve routing problems, verify subnet configurations, and ensure proper communication between different networks or across the internet.

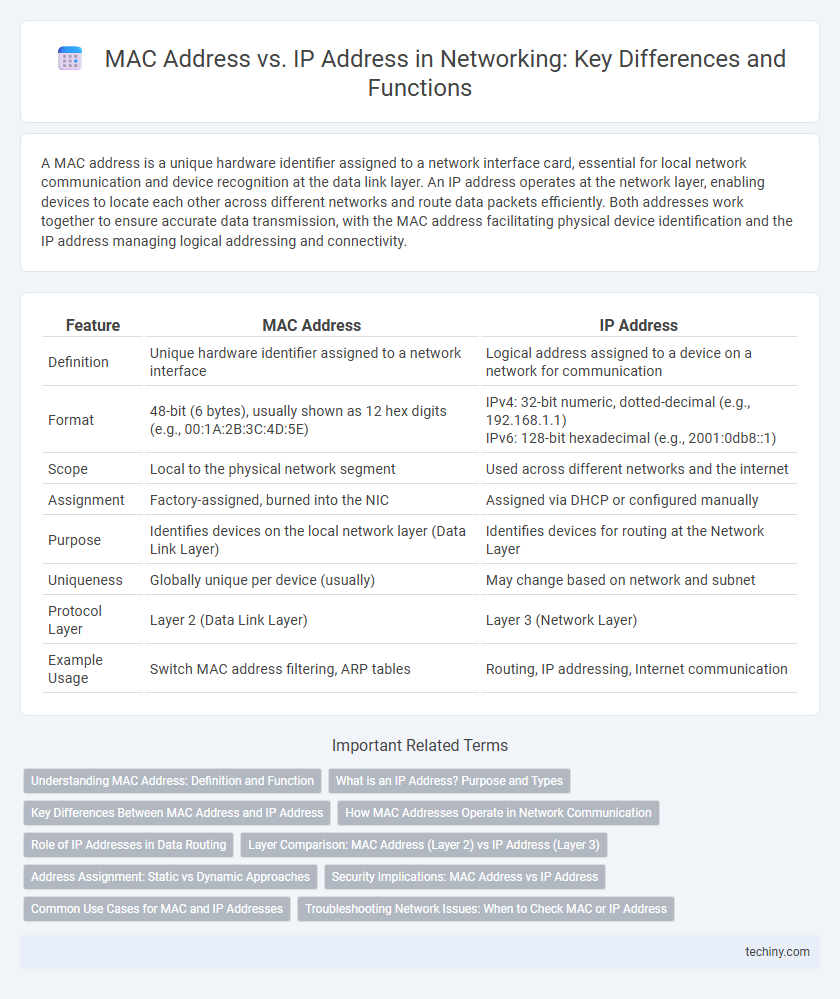

MAC Address vs IP Address Infographic
