techiny.com Coaxial cables offer better shielding against electromagnetic interference, making them ideal for cable television and internet connections requiring high bandwidth over longer distances. Twisted pair cables, commonly used in Ethernet networks, are more flexible and cost-effective but tend to have shorter transmission ranges and are more susceptible to noise. Choosing between coaxial and twisted pair depends on factors like network speed, distance, and environmental interference.
Table of Comparison
| Feature | Coaxial Cable | Twisted Pair Cable |
|---|---|---|
| Structure | Single copper conductor with insulating layer and outer shield | Pair of insulated copper wires twisted together |
| Bandwidth | Up to 10 Gbps (using advanced versions) | Up to 10 Gbps (Cat 6a and above) |
| Interference Resistance | High due to shielding | Moderate; improved with shielding (STP) |
| Common Uses | Cable TV, Internet backbone, CCTV | Ethernet LAN, Telephone, Data transfer |
| Maximum Length per Segment | Up to 500 meters | Up to 100 meters |
| Cost | Higher due to materials and shielding | Lower, widely used in LANs |
| Installation | Thicker, less flexible | Thinner, easy to install |
Introduction to Coaxial and Twisted Pair Cables
Coaxial cables consist of a central conductor surrounded by insulation, a metallic shield, and an outer jacket, offering high resistance to electromagnetic interference and strong signal transmission over longer distances. Twisted pair cables feature pairs of insulated copper wires twisted together, designed to reduce crosstalk and electromagnetic interference, commonly used in Ethernet networks and telephone lines. The choice between coaxial and twisted pair cables depends on factors like bandwidth requirements, signal range, and environmental noise conditions.
Structural Differences Between Coaxial and Twisted Pair
Coaxial cables consist of a central conductor surrounded by an insulating layer, a metallic shield, and an outer insulating layer, which provides superior resistance to electromagnetic interference. Twisted pair cables contain pairs of insulated copper wires twisted together to reduce crosstalk and electromagnetic induction, yet they lack the shielding found in coaxial cables. This structural distinction influences their applications, with coaxial cables often used for cable television and broadband internet, while twisted pair cables dominate in local area network (LAN) wiring and telephone lines.
Signal Transmission Mechanisms
Coaxial cables transmit signals through a central conductor surrounded by an insulating layer and a metallic shield, minimizing electromagnetic interference and allowing higher bandwidth over longer distances. Twisted pair cables use pairs of insulated copper wires twisted together to reduce electromagnetic interference and crosstalk, which enhances signal integrity in shorter-range networking environments. Signal attenuation is generally lower in coaxial cables, making them suitable for cable television and broadband internet, while twisted pair cables are predominant in Ethernet networks due to cost efficiency and flexibility.
Bandwidth and Data Rate Comparison
Coaxial cables typically support higher bandwidths up to several GHz, enabling data rates that can exceed 10 Gbps, making them suitable for cable television and broadband internet. Twisted pair cables, especially Category 5e and Cat 6, generally offer bandwidths up to 250 MHz and 500 MHz respectively, with maximum data rates reaching 1 Gbps to 10 Gbps over shorter distances. The choice between coaxial and twisted pair depends on the required data rate and transmission distance, with coaxial cables providing superior performance in high-frequency, long-distance applications.
Noise Immunity and Interference
Coaxial cables offer superior noise immunity due to their fixed shielding layer, which effectively blocks electromagnetic interference (EMI) and radio frequency interference (RFI), making them ideal for environments with high external noise. Twisted pair cables rely on the twisting of wire pairs to reduce crosstalk and electromagnetic interference, providing moderate noise resistance but typically less than coaxial cables. In high-interference settings such as industrial networks, coaxial cables generally outperform twisted pair cables in maintaining signal integrity.
Installation and Maintenance Factors
Coaxial cables require specialized connectors and precise termination tools, making installation more complex compared to twisted pair cables, which use RJ-45 connectors and are easier to install with basic tools. Maintenance of coaxial systems often involves inspecting shielding integrity to prevent signal interference, whereas twisted pair cables demand regular checks for cable twists and pair continuity to maintain optimal performance. Twisted pair cables generally offer better flexibility and simpler troubleshooting, reducing overall maintenance time and costs.
Cost Analysis: Coaxial vs Twisted Pair
Coaxial cables typically incur higher initial costs due to their thicker shielding and complex installation requirements, whereas twisted pair cables offer a more affordable solution with lower material and labor expenses. Twisted pair cables, especially unshielded varieties (UTP), are widely preferred for cost-effective network expansion in residential and commercial environments. Long-term maintenance and replacement costs also favor twisted pair, as coaxial cables are more susceptible to physical damage and signal degradation over time.
Common Use Cases in Networking
Coaxial cables are commonly used in cable internet connections, cable television distribution, and traditional Ethernet networks like 10BASE2 due to their high resistance to electromagnetic interference and ability to support longer cable runs. Twisted pair cables, particularly Unshielded Twisted Pair (UTP), dominate in local area networks (LANs) for telephone lines, Fast Ethernet (100BASE-TX), and Gigabit Ethernet (1000BASE-T) because of their cost-effectiveness, flexibility, and ease of installation. Both cable types serve distinct roles depending on network speed requirements, distance, and environmental factors influencing signal quality.
Scalability and Future-Proofing Considerations
Twisted pair cables offer greater scalability and future-proofing due to enhanced support for higher bandwidths and compatibility with emerging Ethernet standards like 10GBASE-T. Coaxial cables, while robust for legacy applications such as broadband and CCTV, face limitations in data rate expansion and flexibility for network upgrades. Network architects prioritize twisted pair solutions to accommodate evolving infrastructure demands and seamless integration of advanced technologies.
Choosing the Right Cable for Your Network
Choosing the right cable for your network involves evaluating factors such as bandwidth requirements, distance, and interference resistance. Coaxial cables offer higher shielding and better resistance to electromagnetic interference, making them ideal for longer cable runs and environments with high noise. Twisted pair cables, including CAT5e and CAT6, provide cost-effective flexibility and are widely favored for modern Ethernet networks due to their ease of installation and sufficient performance for most LAN setups.

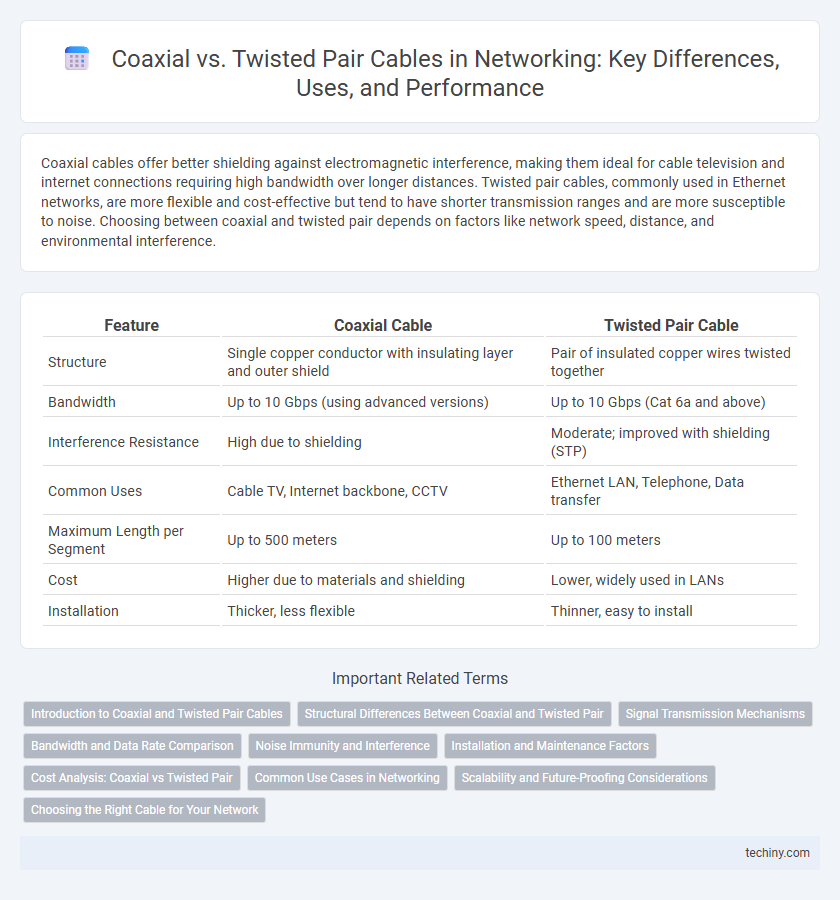

Coaxial vs Twisted Pair Infographic
