techiny.com RIP (Routing Information Protocol) is a distance-vector routing protocol that uses hop count as its metric, making it simpler but less scalable for large networks. OSPF (Open Shortest Path First) is a link-state routing protocol that calculates the shortest path using cost metrics, offering faster convergence and better support for complex network topologies. While RIP is suitable for small, flat networks, OSPF is preferred in larger, hierarchical environments that require efficient and dynamic routing updates.
Table of Comparison
| Feature | RIP (Routing Information Protocol) | OSPF (Open Shortest Path First) |
|---|---|---|
| Protocol Type | Distance-vector | Link-state |
| Metric | Hop count (max 15) | Cost based on bandwidth |
| Convergence Speed | Slow | Fast |
| Scalability | Small networks | Large and complex networks |
| Update Interval | 30 seconds | Triggered and periodic updates |
| Loop Prevention | Split horizon, route poisoning | Shortest path first algorithm (Dijkstra) |
| IP Support | IPv4 only | IPv4 and IPv6 |
| Administrative Distance | 120 | 110 |
| Resource Usage | Low CPU and memory | Higher CPU and memory |
| Use Case | Simple, small-scale networks | Enterprise and service provider networks |
Overview of RIP and OSPF in Networking
Routing Information Protocol (RIP) is a distance-vector routing protocol using hop count as its metric, with a maximum limit of 15 hops, making it suitable for small to medium-sized networks. Open Shortest Path First (OSPF) is a link-state routing protocol designed for larger, more complex networks, utilizing cost metrics based on bandwidth and supporting hierarchical network design through areas. OSPF offers faster convergence and scalability compared to RIP, which relies on periodic updates and has slower adaptation to network changes.
Key Differences Between RIP and OSPF
RIP (Routing Information Protocol) uses distance vector routing based on hop count with a maximum limit of 15 hops, making it suitable for smaller networks, while OSPF (Open Shortest Path First) employs link-state routing with a more complex metric based on bandwidth, allowing scalability in large enterprise environments. RIP updates routing tables every 30 seconds, which can lead to slower convergence, whereas OSPF uses event-driven updates and faster convergence times supported by a hierarchical design with areas. Security and flexibility differ; OSPF supports authentication and load balancing across multiple paths, whereas RIP lacks these advanced features, influencing their deployment choices.
Routing Protocol Fundamentals: RIP Explained
Routing Information Protocol (RIP) is a distance-vector routing protocol that uses hop count as its primary metric, limiting the maximum number of hops to 15, which can result in slower convergence and less scalability compared to OSPF. RIP broadcasts its entire routing table every 30 seconds, leading to higher bandwidth consumption and potential routing loops without proper split horizon or route poisoning techniques. Unlike OSPF's link-state approach that calculates the shortest path based on link costs, RIP's simplicity makes it suitable for smaller, less complex networks but less efficient for larger, dynamic environments.
Routing Protocol Fundamentals: OSPF Explained
OSPF (Open Shortest Path First) is a link-state routing protocol that uses Dijkstra's algorithm to calculate the shortest path tree for each route, enabling faster convergence and scalability compared to the distance-vector protocol RIP (Routing Information Protocol). OSPF organizes routers into areas to optimize traffic and reduce routing overhead in large networks, supporting VLSM (Variable Length Subnet Masking) for efficient IP address allocation. Its use of LSAs (Link-State Advertisements) and a hierarchical design enhances network stability and routing accuracy, making it a preferred choice in complex enterprise environments.
RIP vs OSPF: Performance and Scalability
RIP relies on hop count as its routing metric, limiting its scalability to small networks with a maximum of 15 hops, which affects performance in larger environments. OSPF uses cost based on bandwidth, enabling more efficient routing decisions and superior performance in extensive and complex topologies. OSPF's hierarchical design with areas enhances scalability and reduces routing overhead compared to the flat topology approach of RIP.
Configuration and Implementation: RIP vs OSPF
RIP configuration is straightforward, requiring minimal commands and is suitable for small networks with simple topology due to its distance-vector protocol nature. OSPF implementation involves more complex setup, including defining areas and router IDs, which provides greater scalability and faster convergence for large enterprise networks. While RIP relies on hop count as a routing metric, OSPF uses cost based on link bandwidth, enhancing route optimization and network performance.
Security Considerations in RIP and OSPF
RIP uses simple authentication methods, such as plain-text or MD5 hashing, which are vulnerable to spoofing and replay attacks, making it less secure compared to OSPF. OSPF implements more robust security features including support for cryptographic authentication using MD5 or SHA, providing enhanced protection against unauthorized routing updates and man-in-the-middle attacks. Network administrators prefer OSPF in environments requiring strong security due to its ability to enforce message integrity and authenticate neighbor routers effectively.
Use Cases: When to Choose RIP or OSPF
RIP is ideal for small, simple networks with limited routers where ease of configuration and minimal resource usage are priorities, making it suitable for home or small office setups. OSPF excels in larger, complex enterprise networks requiring fast convergence, scalability, and efficient route management across multiple areas. Choosing OSPF is beneficial when supporting hierarchical network designs and demanding high availability or load balancing.
Troubleshooting RIP and OSPF Networks
Troubleshooting RIP networks involves verifying correct hop counts, ensuring all routers have synchronized routing tables, and checking for routing loops caused by the protocol's slow convergence. In OSPF, issues often arise from misconfigured areas, mismatched hello and dead intervals, or authentication failures, requiring careful examination of adjacency states and LSDB consistency. Efficient troubleshooting of both protocols demands thorough analysis of routing updates, interface status, and protocol-specific timers to maintain optimal network performance.
Future Trends in Dynamic Routing Protocols
Future trends in dynamic routing protocols indicate a shift from legacy RIP toward more advanced OSPF implementations that offer enhanced scalability, faster convergence, and improved security features. OSPF's link-state algorithm supports hierarchical network design and integration with IPv6, aligning with the growing demand for efficient large-scale enterprise and service provider networks. Emerging protocols like Segment Routing and advancements in OSPFv3 highlight ongoing evolution addressing automation and reliability in complex dynamic routing environments.

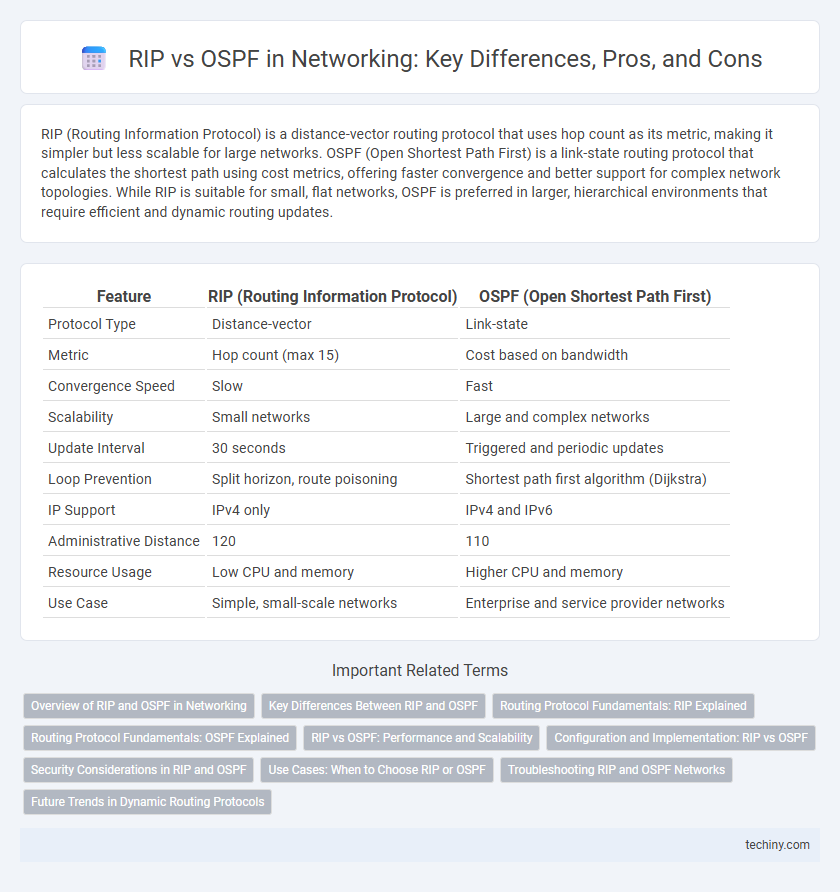

RIP vs OSPF Infographic
