techiny.com Optical Carrier (OC) and Synchronous Transport Module (STM) are fundamental standards in telecommunications for high-speed data transmission over fiber optic networks, with OC being primarily used in North America and STM in Europe and other regions. Both standards define a hierarchy of transmission rates, where OC-n levels correspond directly to STM-m rates at the physical layer, such that OC-3 aligns with STM-1, and OC-12 corresponds to STM-4, enabling interoperability across different network technologies. Understanding the distinction and equivalence between OC and STM is crucial for designing global optical networks and ensuring seamless interoperability in international telecommunications infrastructure.
Table of Comparison
| Feature | Optical Carrier (OC) | Synchronous Transport Module (STM) |
|---|---|---|
| Definition | Standard specifying digital signal rates over optical fiber in SONET networks. | SDH's hierarchical level defining synchronous transmission rates over fiber optics. |
| Standard | SONET (Synchronous Optical Network) | SDH (Synchronous Digital Hierarchy) |
| Basic Unit | OC-1 (51.84 Mbps) | STM-1 (155.52 Mbps) |
| Data Rate | OC-n where n=1,3,12,... (e.g., OC-3 = 155.52 Mbps) | STM-n where n=1,4,16,... (e.g., STM-4 = 622.08 Mbps) |
| Geographical Use | Primarily North America and Japan | Primarily Europe and rest of the world |
| Multiplexing | Byte-interleaving multiplexing | Bit-interleaving multiplexing |
| Synchronization | Locally synchronized network | Globally synchronized network |
| Compatibility | Supports only SONET systems | Supports SDH and compatible with SONET |
| Application | High-speed digital transmission in SONET networks | Global standard for high-speed telecommunication networks |
Overview of Optical Carrier (OC) and Synchronous Transport Module (STM)
Optical Carrier (OC) and Synchronous Transport Module (STM) are standardized protocols for high-speed optical fiber communication, with OC primarily used in North America under the SONET framework and STM in Europe based on SDH technology. OC levels, such as OC-3 or OC-192, define data rates from 155.52 Mbps to 9.953 Gbps, while STM levels like STM-1 through STM-64 correspond to similar speeds standardized globally. Both systems provide synchronous data transfer with robust multiplexing, synchronization, and error correction suited for telecommunication networks.
Historical Development of OC and STM Standards
The Optical Carrier (OC) standard emerged in the 1980s within North America as part of the SONET (Synchronous Optical Network) framework to standardize high-speed fiber optic transmission. Concurrently, the Synchronous Transport Module (STM) was developed in Europe under the SDH (Synchronous Digital Hierarchy) standard to harmonize digital communication systems across different countries. Both standards evolved to accommodate increasing data rates, with OC levels (e.g., OC-1 at 51.84 Mbps) and STM levels (e.g., STM-1 at 155.52 Mbps) reflecting their respective regional designs yet achieving interoperability over time.
OC vs STM: Fundamental Technical Differences
Optical Carrier (OC) and Synchronous Transport Module (STM) represent two standardized hierarchies for high-speed optical network transmission, with OC used primarily in the SONET (Synchronous Optical Network) system and STM in the SDH (Synchronous Digital Hierarchy) system. OC levels are denoted as OC-1, OC-3, etc., with OC-1 operating at 51.84 Mbps, while STM levels such as STM-1 operate at 155.52 Mbps, reflecting their differing base transmission rates and multiplexing structures. The fundamental technical difference lies in the framing and multiplexing techniques: SONET (OC) uses an 810-byte frame transmitted every 125 microseconds, whereas SDH (STM) employs a 270-byte frame also sent every 125 microseconds, optimizing interoperability and synchronization across different international telecom standards.
Bandwidth Capacities: OC Levels vs STM Levels
Optical Carrier (OC) levels, standardized under SONET, range from OC-1 at 51.84 Mbps to OC-768 at 39.813 Gbps, enabling scalable bandwidth capacities for North American telecommunications. Synchronous Transport Module (STM) levels, defined by SDH, start at STM-1 with 155.52 Mbps and scale up to STM-64 at 9.953 Gbps, primarily used in European and international networks. The bandwidth capacities of OC and STM levels correlate closely, with OC-3 matching STM-1 and OC-768 aligning with STM-256, facilitating interoperability between SONET and SDH systems.
Network Architecture: SDH vs SONET
OC (Optical Carrier) levels define transmission rates in SONET (Synchronous Optical Network), a North American standard, whereas STM (Synchronous Transport Module) levels correspond to SDH (Synchronous Digital Hierarchy), used internationally. Both standards enable efficient, scalable, and synchronous multiplexing of digital signals, but SDH offers more flexible and granular network management features compared to SONET. Network architectures utilizing SDH with STM levels provide enhanced interoperability and higher bandwidth capacities across diverse telecommunication infrastructures.
Signal Multiplexing and Framing Techniques
Optical Carrier (OC) signals use SONET framing with byte-interleaved multiplexing for efficient transport of multiple digital data streams over fiber optic networks, enabling synchronous transmission and precise timing. Synchronous Transport Module (STM), part of the SDH standard, employs block-interleaved multiplexing and complex framing structures to accommodate variable-rate signals while maintaining network synchronization and interoperability. Both OC and STM techniques facilitate high-capacity, low-latency data transfer but differ in framing formats and multiplexing strategies optimized for their respective regional telecommunications infrastructures.
Global Adoption: Regional Preferences and Use Cases
Optical Carrier (OC) standards dominate North American telecommunications infrastructure, particularly within SONET-based networks, while Synchronous Transport Module (STM) standards are prevalent in Europe and regions adopting SDH protocols. This regional preference influences global network interoperability, with OC-n utilized for high-capacity data transmission across the Americas and STM-n preferred for synchronous optical networks worldwide. Use cases vary accordingly, as OC systems support large-scale carriers requiring robust bandwidth, whereas STM systems facilitate seamless integration in multinational SDH frameworks.
Compatibility and Interoperability Considerations
Optical Carrier (OC) and Synchronous Transport Module (STM) represent different hierarchy standards in telecommunications for high-speed data transmission over fiber optic networks. Compatibility issues arise as OC follows the SONET standard primarily used in North America, while STM is based on the SDH standard prevalent internationally; interoperability between these systems depends on the ability to map OC levels (e.g., OC-3, OC-12) to their STM equivalents (e.g., STM-1, STM-4). Network equipment must support protocol conversion and adhere to synchronization requirements to ensure seamless data flow and maintain signal integrity across OC and STM infrastructures.
Future Trends in Optical Networking
Optical Carrier (OC) and Synchronous Transport Module (STM) represent pivotal standards in optical networking, with OC primarily used in SONET and STM in SDH frameworks. Future trends indicate a shift towards higher transmission rates beyond OC-768 and STM-256, leveraging advanced modulation techniques and coherent detection to address increasing bandwidth demands. Integration with software-defined networking (SDN) and network function virtualization (NFV) is accelerating dynamic optical resource allocation and enhanced network agility.
Choosing Between OC and STM for Modern Networks
Choosing between Optical Carrier (OC) and Synchronous Transport Module (STM) depends on network compatibility and regional standards, with OC predominantly used in North America under SONET, while STM is favored in Europe and other regions following SDH protocols. OC provides rates from OC-1 (51.84 Mbps) to OC-768 (39.813 Gbps), whereas STM levels range from STM-1 (155.52 Mbps) to STM-256 (39.813 Gbps), aligning with global transmission needs. Modern networks require evaluation of existing infrastructure, interoperability demands, and scalability to decide the optimal choice for high-speed data transport and synchronous communication.

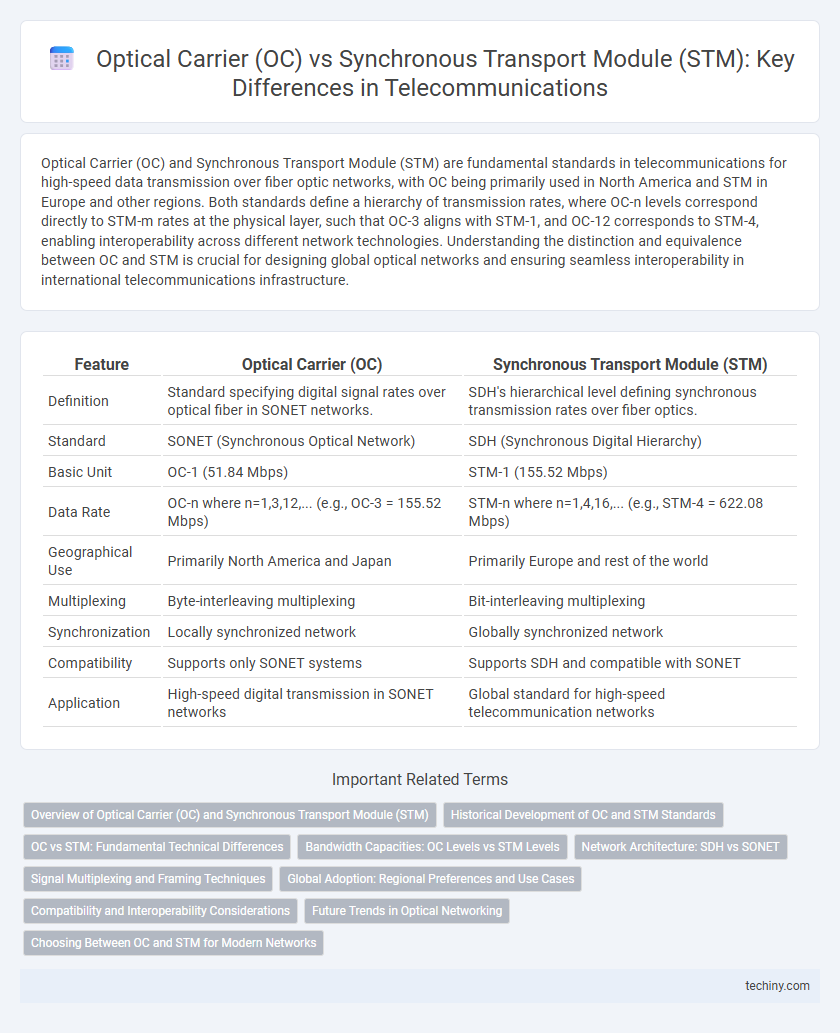

Optical Carrier (OC) vs Synchronous Transport Module (STM) Infographic
