techiny.com The Bowden tube system offers reduced weight on the moving print head, enabling higher print speeds and less wobble during pet filament extrusion. Direct drive paths provide precise control and improved retraction performance, making them ideal for flexible materials often used in pet 3D printing. Choosing between Bowden and direct drive depends on the balance between speed and filament control required for optimal pet print quality.
Table of Comparison
| Feature | Bowden Tube | Direct Drive |
|---|---|---|
| Extruder Location | Remote from hotend via long PTFE tube | Mounted directly on the hotend |
| Filament Control | Less precise due to tube length | Better control, reduces backlash |
| Print Speed | Higher due to lighter moving parts | Moderate, impacted by weight on printhead |
| Print Quality | Potential stringing, less accurate retraction | Improved retraction, finer detail |
| Weight on Moving Axis | Light, reduces inertia | Heavier, may affect speed and vibration |
| Maintenance | Requires tube inspection and possible replacement | Easy filament path access |
| Best Use Case | High-speed printing, flexible filaments | High precision, rigid filaments |
Introduction to 3D Printing Extrusion Systems
Bowden tube and direct drive paths are two primary 3D printing extrusion systems that impact filament control and print quality. Bowden setups use a remote extruder with a long PTFE tube guiding filament to the hotend, reducing moving mass and enabling faster print speeds but potentially causing filament flex and retraction challenges. Direct drive systems mount the extruder directly on the print head, offering precise filament control and better handling of flexible materials at the cost of increased moving mass and slower accelerations.
What is a Bowden Tube Setup?
A Bowden tube setup in 3D printing uses a flexible PTFE tube to guide filament from the extruder motor, which is mounted away from the print head, to the hotend. This design reduces the moving mass on the print head, allowing faster and more precise movements by minimizing inertia. The Bowden tube system is popular for printers that prioritize speed and reduced weight but may require careful calibration to handle flexible filaments effectively.
Understanding Direct Drive Extruders
Direct drive extruders position the motor directly on the print head, enabling precise filament control and faster retraction, which reduces stringing and improves print quality. This setup excels with flexible and soft materials, as the filament path is shorter and more direct, minimizing the risk of jams and deformation. While direct drive systems add weight to the moving parts, their enhanced extrusion accuracy benefits intricate 3D prints requiring fine detail.
Key Differences: Bowden Tube vs Direct Drive
Bowden Tube and Direct Drive represent two primary extruder configurations in 3D printing, differing mainly in the filament feed mechanism. Bowden Tube setups position the extruder motor away from the hotend, reducing moving mass and enabling faster print speeds but often sacrificing retraction precision and flexibility with flexible filaments. Direct Drive extruders mount the motor directly on the print head, providing superior retraction control and improved handling of flexible materials at the cost of increased weight and potentially slower movements.
Print Quality Comparison
The print quality in 3D printing significantly differs between Bowden tube and direct drive setups due to filament control precision. Direct drive extruders provide better retraction performance and reduced stringing, resulting in finer detail and smoother surfaces, especially with flexible filaments. Bowden tubes, while lighter on the moving parts and faster in travel speed, often suffer from increased backlash and less consistent extrusion, which can compromise print accuracy and detail sharpness.
Material Compatibility and Flexibility
Bowden tube setups excel in printing flexible filaments like TPU by minimizing the filament path friction and allowing easier feeding through a long, indirect path. Direct drive systems place the extruder motor closer to the hotend, providing better control and retraction for rigid materials such as PLA, ABS, and specialty filaments like Nylon and polycarbonate. Material compatibility in 3D printing depends largely on the extrusion method, with Bowden tubes favoring flexible filaments and direct drive paths enhancing performance for a wider range of rigid and specialty materials.
Speed and Precision Analysis
Bowden tube systems enable higher print speeds by reducing extruder weight on the moving carriage, minimizing inertia and allowing faster travel without compromising overall motion stability; however, the increased filament path length can introduce slight lag and reduce retraction precision, affecting fine details. Direct drive setups offer superior precision and control by positioning the extruder directly on the print head, enhancing retraction accuracy and filament responsiveness at slower or moderate speeds, which is crucial for detailed prints and flexible filaments. Speed-focused prints benefit from Bowden configurations due to lightweight mechanics, while precision-intensive applications favor direct drive for optimal extrusion control and dimensional accuracy.
Maintenance and Troubleshooting
Maintenance of Bowden tube systems typically involves regular inspection for clogs and tube wear, as the filament travels through a longer path affecting print consistency. Direct drive setups require more frequent checks on the extruder mechanism itself, including gear alignment and motor function, due to the proximity of the drive to the hotend. Troubleshooting Bowden tubes often centers on feed issues and retraction settings, while direct drive troubleshooting focuses on filament grip and extruder calibration.
Cost Considerations for Upgrading
Upgrading from a Bowden tube to a direct drive extruder typically involves higher initial costs due to the need for additional hardware such as a heavier extruder motor and reinforced mounting brackets. The Bowden setup benefits from lower replacement and maintenance expenses because of fewer moving parts and simpler filament path, making it more budget-friendly for entry-level upgrades. Cost efficiency depends on print quality goals, with direct drive offering better performance at a higher investment, while Bowden remains a cost-effective choice for users prioritizing affordability.
Choosing the Right System for Your 3D Printing Needs
Choosing between a Bowden tube and a direct drive path hinges on print speed, material flexibility, and precision requirements. Bowden tubes offer faster print speeds and reduced weight on the print head, ideal for rigid filaments like PLA, while direct drive systems excel with flexible materials such as TPU due to their shorter filament path and improved extrusion control. Evaluating your typical filament types and print quality expectations will guide the optimal extrusion system selection for reliable 3D printing performance.

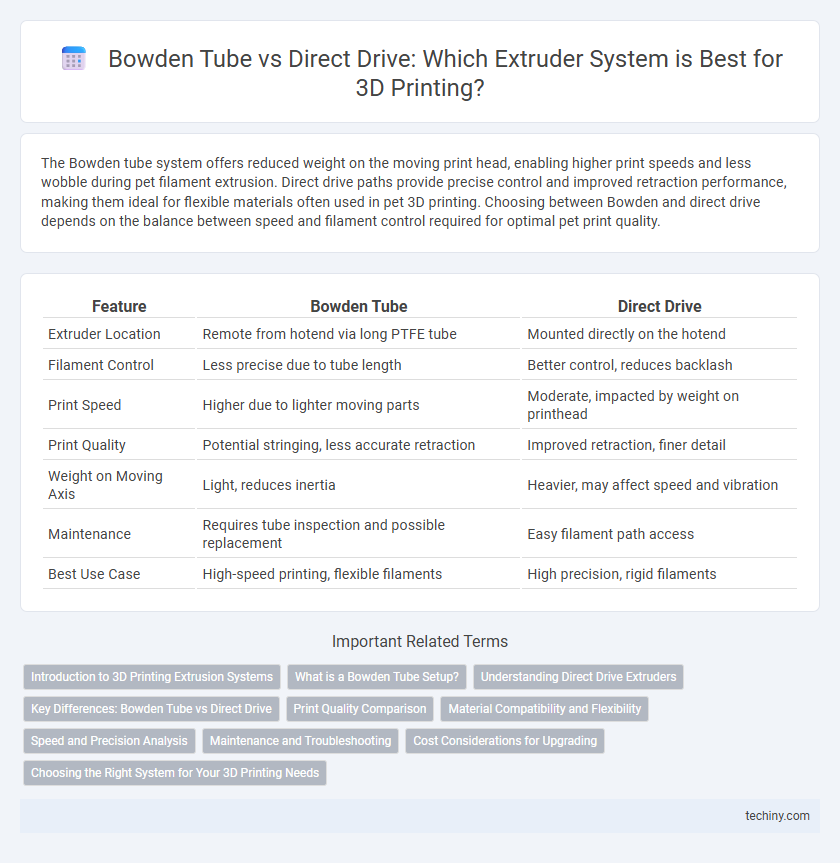

Bowden Tube vs Direct Drive Path Infographic
