techiny.com Calibration Cube and Benchy serve distinct purposes in 3D printing pets, with the Calibration Cube primarily used to test and optimize printer accuracy by measuring dimensions and detecting errors. Benchy, a complex 3D model shaped like a boat, evaluates overall printing performance, including surface finish, overhang capabilities, and intricate detail reproduction. Choosing between these models depends on whether the focus is on precise calibration or comprehensive quality assessment for pet-related prints.
Table of Comparison
| Feature | Calibration Cube | Benchy |
|---|---|---|
| Purpose | Dimensional accuracy and printer calibration | Overall print quality and real-world performance |
| Size | Typically 20mm3 | Approximately 60mm x 31mm x 48mm |
| Details | Simple geometry focused on measuring XYZ accuracy | Complex shapes testing overhangs, bridges, and surface finish |
| Time to Print | Fast (5-15 minutes) | Moderate (20-60 minutes) |
| Use Case | Quick calibration and troubleshooting of dimensional errors | Comprehensive testing for print quality and functional performance |
| Material Efficiency | Low filament usage | Moderate filament usage |
| Community Standard | Widely used for calibration | Industry benchmark for 3D printing quality |
Introduction to Calibration Cube and Benchy
A Calibration Cube is a standardized 3D printed model used to evaluate and fine-tune printer accuracy, focusing on dimensional precision and surface quality. The Benchy, a miniature boat model, is designed to test a 3D printer's ability to handle complex geometries, overhangs, and surface details. Both serve as essential calibration tools, with the Cube providing straightforward measurement benchmarks and the Benchy offering insight into real-world print performance.
Purpose and Importance in 3D Printing
Calibration cubes are fundamental tools designed to assess and fine-tune printer accuracy by measuring dimensional precision and identifying common print defects. Benchy, a popular 3D model shaped like a boat, serves as a comprehensive benchmark to evaluate overall printer performance, including detail resolution, bridging, and surface finish. Utilizing both calibration cubes and Benchy prints ensures optimal printer calibration, enhancing print quality and reliability in complex 3D printing projects.
Design Features: Calibration Cube vs Benchy
The Calibration Cube is designed with simple geometric shapes and precise dimensions to evaluate printer accuracy in XYZ axes, offering clear benchmarks for dimensional accuracy and layer consistency. In contrast, the Benchy features complex design elements such as curved surfaces, overhangs, and small details like portholes and chimney, specifically crafted to test a printer's performance in handling intricate features and surface quality. Choosing between the Calibration Cube and Benchy depends on whether the priority is basic dimensional calibration or comprehensive performance analysis of detailed print capabilities.
Print Time and Material Usage Comparison
Calibration Cube prints typically require less time and material, often completing within 20-30 minutes using minimal filament due to their simple geometry. Benchy, a detailed benchmark model, usually takes longer--around 1-2 hours--and consumes more filament because of its intricate features designed to test printer performance. Comparing print time and material usage helps users choose between quick calibration and comprehensive printing assessments.
Assessing Dimensional Accuracy
Calibration Cube and Benchy are essential 3D printing models used to assess dimensional accuracy, with the cube providing straightforward measurement of X, Y, and Z axis deviations. The Benchy, with its complex geometry including overhangs, curves, and detailed features, evaluates not only dimensional precision but also the printer's ability to reproduce intricate shapes. Comparing results from both models offers comprehensive insights into calibration quality and identifies potential mechanical or software issues affecting print fidelity.
Identifying Print Quality Issues
Calibration cubes enable precise measurement of dimensional accuracy in 3D printing, highlighting issues like layer misalignment, over-extrusion, and under-extrusion. Benchy, with its complex geometry including arches, overhangs, and small details, reveals problems with print speed, cooling, and bridging capabilities. Comparing results from both models provides comprehensive insight into mechanical and tuning defects, ensuring optimal print quality.
Analyzing Overhangs and Surface Details
Calibration Cube offers precise dimensional accuracy ideal for measuring printer calibration through flat surfaces and sharp edges, while Benchy excels in testing complex overhangs and intricate surface details that challenge extrusion consistency. Overhang analysis on Benchy reveals printer capabilities in managing layer adhesion and cooling during steep angles, whereas the Calibration Cube provides baseline metrics for axis alignment and extrusion width. Both models together deliver comprehensive insights into printer performance, combining geometric precision with detailed surface evaluation to optimize 3D print quality.
Troubleshooting with Calibration Cube and Benchy
Calibration Cube serves as an essential tool for diagnosing printer accuracy issues by measuring dimensional fidelity, layer alignment, and extrusion consistency, while Benchy excels in identifying complex problems such as overhang, bridging, and surface finish quality. Using a Calibration Cube allows for precise adjustments in flow rate, steps per millimeter, and temperature settings, enabling rapid identification of under-extrusion or layer shifting problems. Benchy's detailed geometry and overhangs help troubleshoot cooling deficiencies, retraction settings, and first layer adhesion, providing a comprehensive assessment of print quality and mechanical calibration.
When to Use Calibration Cube vs Benchy
Use a calibration cube to quickly assess printer accuracy and fine-tune dimensional precision during initial setup or after hardware modifications. The Benchy model, a more complex 3D print, is ideal for evaluating multiple printer parameters simultaneously, such as overhangs, bridging, and surface quality, typically after basic calibration is complete. Prioritizing calibration cubes in early stages ensures foundational accuracy before advancing to Benchy tests for comprehensive performance analysis.
Final Thoughts: Choosing the Right Test Model
Calibration Cube and Benchy serve distinct purposes in 3D printing testing, with the Calibration Cube focusing on dimensional accuracy and printer calibration, while the Benchy evaluates overall print quality and surface detail. Selecting the right test model depends on whether the priority is verifying precise measurements or assessing complex geometries and printing capabilities. For comprehensive evaluation, using both models in tandem provides a balanced approach to identifying printer strengths and weaknesses.

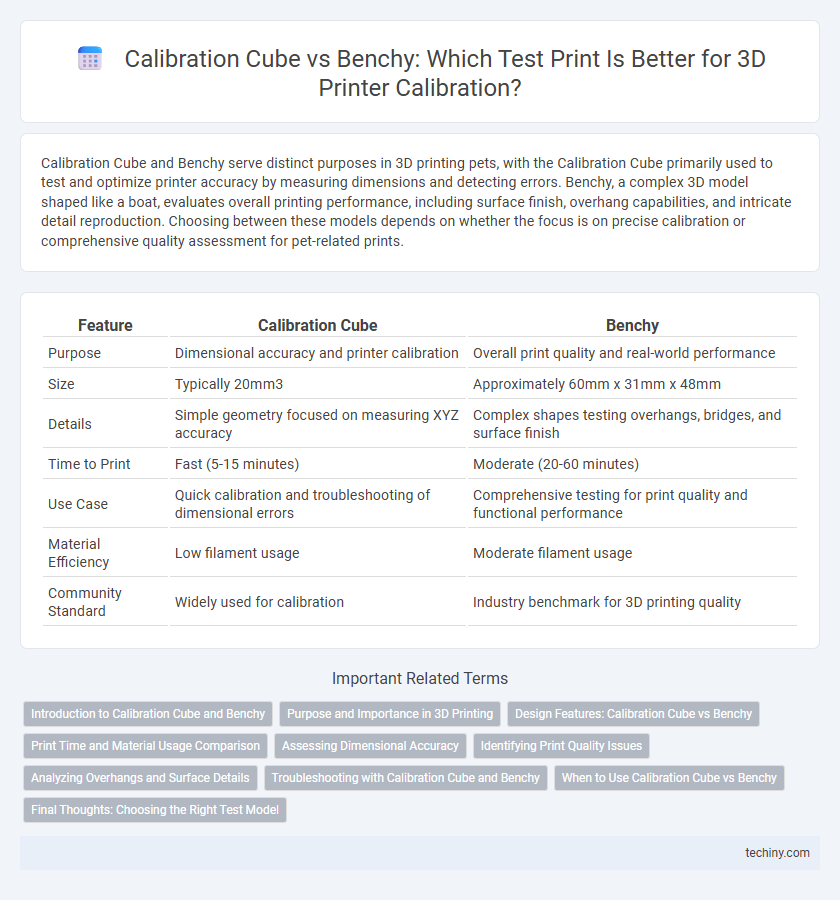

Calibration Cube vs Benchy Infographic
