techiny.com Thermistors and thermocouples are both temperature sensors commonly used in 3D printing to monitor the heated bed and extruder temperature. Thermistors provide precise temperature readings with high sensitivity in a limited temperature range, making them ideal for consistent prints at lower temperatures. Thermocouples operate effectively at higher temperatures and offer a broader sensing range but typically require more complex calibration and electronics for accurate measurements.
Table of Comparison
| Feature | Thermistor | Thermocouple |
|---|---|---|
| Temperature Range | -55degC to 150degC (typical) | -200degC to 1350degC |
| Accuracy | +-0.1degC to +-1degC | +-1degC to +-5degC |
| Response Time | Fast (milliseconds) | Moderate (seconds) |
| Cost | Low | Moderate to High |
| Durability in 3D Printing | Lower; sensitive to mechanical stress | Higher; withstands harsh environments |
| Application | Ideal for low to mid-temperature sensors in extruders | Suitable for high-temperature measurement and heated beds |
| Signal Type | Resistance-based | Voltage-based (millivolts) |
| Calibration | Simple and stable | Requires frequent recalibration |
Introduction to Temperature Sensors in 3D Printing
Thermistors and thermocouples are critical temperature sensors used in 3D printing to monitor and control extrusion and bed temperatures accurately. Thermistors, made from semiconductor materials, offer precise temperature readings within a limited range, typically between -50degC and 150degC, making them ideal for maintaining consistent filament melting. Thermocouples, constructed from two dissimilar metals, measure a broader temperature spectrum up to 1300degC and provide faster response times, essential for high-temperature printing applications like metal or specialty filaments.
What is a Thermistor?
A thermistor is a temperature-sensitive resistor widely used in 3D printing to accurately monitor and control the heat of the printer's hotend and heated bed. It operates based on the principle that its resistance changes predictably with temperature, providing precise and stable readings critical for consistent print quality. Compared to thermocouples, thermistors are cost-effective, easier to interface with microcontrollers, and offer high sensitivity within the typical temperature ranges of 3D printers.
What is a Thermocouple?
A thermocouple is a temperature sensor composed of two dissimilar metal wires joined at one end, producing a voltage that correlates directly to temperature changes. Commonly used in 3D printing to monitor and control nozzle and bed temperatures, thermocouples offer a wide measurement range and fast response times. Compared to thermistors, thermocouples provide greater durability in high-temperature environments and enhanced accuracy for reliable thermal management.
Core Differences Between Thermistors and Thermocouples
Thermistors are temperature sensors made from semiconductor materials that exhibit a large change in resistance with temperature, offering high sensitivity but a limited temperature range typically between -50degC and 150degC. Thermocouples consist of two different metal wires joined at one end, generating a voltage proportional to temperature, enabling them to measure a wide range from -200degC to over 2000degC with fast response times. The core difference lies in thermistors providing precise measurements within a narrow range ideal for 3D printer hotends, while thermocouples excel in extreme temperature environments with broader monitoring applications.
Accuracy and Precision: Thermistor vs Thermocouple
Thermistors offer high accuracy and sensitivity within a limited temperature range, making them ideal for precise temperature control in 3D printing hotends. Thermocouples provide a broader temperature range but typically exhibit lower accuracy and more noise, requiring signal conditioning to enhance precision. For applications demanding fine temperature regulation and consistency, thermistors outperform thermocouples in maintaining stable print quality.
Temperature Range Suitability in 3D Printing
Thermistors typically operate effectively within a temperature range of -50degC to 300degC, making them ideal for standard 3D printing applications with moderate heating requirements. Thermocouples, particularly Type K, can measure much higher temperatures, often up to 1260degC, suitable for industrial or high-temperature 3D printing processes involving advanced materials. Selecting between thermistor and thermocouple sensors depends on the specific temperature range demands of the printing material and the extruder or heated bed setup.
Response Time and Stability
Thermistors exhibit faster response times than thermocouples, typically measuring temperature changes within milliseconds, which is critical for real-time 3D printing nozzle temperature control. Thermistors also provide higher stability and accuracy over narrow temperature ranges, maintaining consistent readings essential for precise filament extrusion. In contrast, thermocouples offer broader temperature ranges but respond slower and exhibit greater drift, making them less ideal for rapid temperature adjustments in 3D printing environments.
Durability and Longevity in 3D Printers
Thermistors in 3D printers offer reliable temperature sensing with moderate durability, typically lasting around 1,000 to 2,000 hours of operation before requiring replacement. Thermocouples provide superior longevity and thermal stability, enduring high temperatures and harsh environments for significantly longer periods, often exceeding 10,000 hours. The enhanced durability of thermocouples makes them ideal for industrial-grade 3D printers operating under continuous or high-temperature conditions.
Compatibility with 3D Printer Electronics
Thermistors offer high accuracy and are widely compatible with most 3D printer electronics due to their simple two-wire design and low cost, making them ideal for temperature sensing on standard hotends and heated beds. Thermocouples, while capable of measuring higher temperatures, often require specialized amplifier modules and signal conditioning to interface correctly with 3D printer control boards, which may limit direct compatibility. Choosing between a thermistor and thermocouple depends on the printer's firmware support and hardware input options, with most consumer 3D printers favoring thermistors for ease of integration.
Which Sensor to Choose for Your 3D Printer?
Thermistors provide higher accuracy and faster response times at common 3D printing temperatures, making them ideal for desktop printers requiring precision within 0-300degC. Thermocouples, capable of measuring a broader temperature range up to 1,200degC, suit industrial 3D printers handling high-temperature materials like ceramics or metals. Selecting between the two depends on your printer's temperature requirements, with thermistors preferred for standard polymer printing and thermocouples for advanced, high-temperature applications.

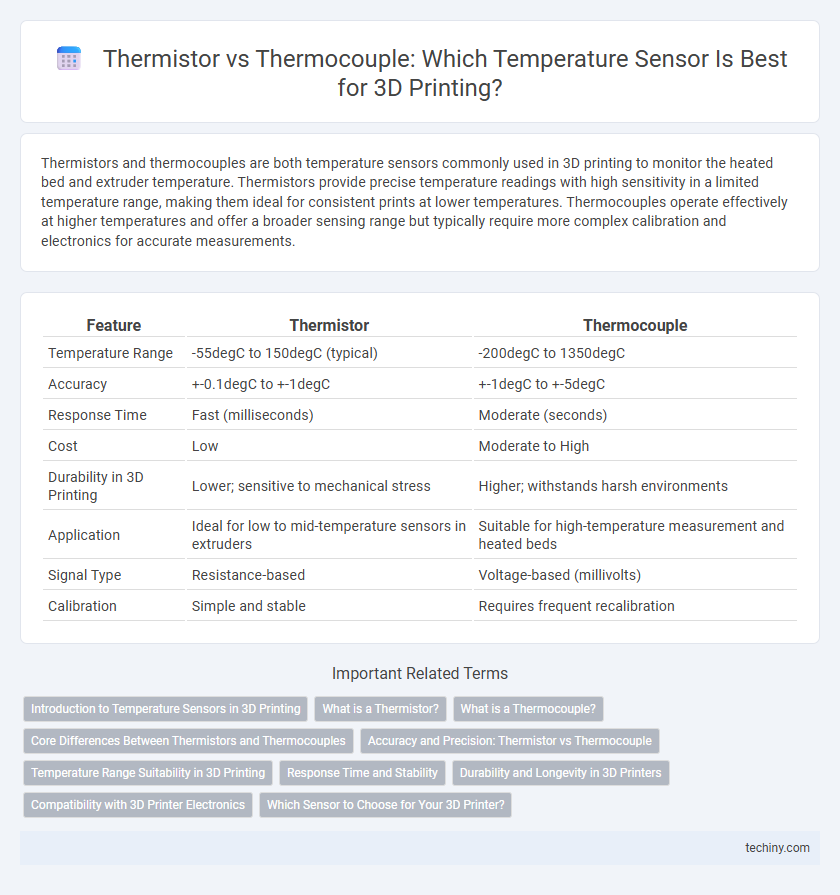

Thermistor vs Thermocouple Infographic
