techiny.com 3D printing pets require materials with isotropic strength to ensure durability and uniform performance in all directions, preventing weak spots that can lead to breakage. Anisotropic strength, common in many 3D printed parts, results in varying mechanical properties along different axes, which may compromise the structural integrity of pet models under stress. Choosing printing techniques and materials that promote isotropic strength enhances the longevity and reliability of 3D printed pets.
Table of Comparison
| Property | Isotropic Strength | Anisotropic Strength |
|---|---|---|
| Definition | Uniform mechanical strength in all directions | Mechanical strength varies based on orientation |
| Material Structure | Homogeneous and consistent at molecular level | Layered or directional bonding causing variability |
| 3D Printing Relevance | Often achieved via advanced materials like metal alloys or composites | Common in FDM and SLA prints with layer-dependent strength |
| Strength Consistency | High, unaffected by print orientation | Variable; weaker along layer lines or directions |
| Typical Applications | Load-bearing parts, aerospace, automotive | Prototypes, decorative parts, less critical components |
| Print Orientation Impact | Minimal | Significant; affects tensile and impact strength |
| Cost | Higher; requires specialized materials/processes | Lower; standard printing methods |
Introduction to Isotropic and Anisotropic Strength in 3D Printing
Isotropic strength in 3D printing refers to materials exhibiting uniform mechanical properties in all directions, enabling consistent performance regardless of the orientation of the printed part. In contrast, anisotropic strength occurs when printed components display variable strength depending on the layer direction or print orientation, often due to weaker interlayer bonding. Understanding the distinction between isotropic and anisotropic properties is crucial for optimizing design parameters and material selection in additive manufacturing processes.
Understanding Material Behavior: Isotropy vs. Anisotropy
Isotropic materials exhibit uniform strength and mechanical properties in all directions, providing consistent performance across the 3D printed object. Anisotropic materials, common in fused filament fabrication (FFF), display varying strength depending on the orientation of printed layers due to interlayer adhesion differences. Understanding isotropic versus anisotropic behavior is crucial for optimizing print orientation, material selection, and ensuring the structural integrity of 3D printed components in engineering applications.
Common 3D Printing Materials and Their Strength Properties
Common 3D printing materials such as PLA, ABS, and PETG exhibit varying degrees of isotropic and anisotropic strength, with isotropic materials like resin-based prints offering uniform strength in all directions. Fused Deposition Modeling (FDM) materials like PLA and ABS tend to show anisotropic properties, where strength is significantly weaker along the layer lines due to weaker interlayer adhesion. Understanding these material-specific strength characteristics is essential for optimizing part performance and selecting the right filament for load-bearing applications.
Layer Bonding and Its Effect on Anisotropic Strength
Layer bonding in 3D printing significantly impacts anisotropic strength, where mechanical properties vary depending on the orientation of the printed layers. Poor interlayer adhesion leads to weak points along the Z-axis, causing the printed object to exhibit lower tensile strength perpendicular to the layers. Optimizing printing parameters such as temperature, speed, and material choice improves layer fusion, enhancing isotropic strength and reducing anisotropic weaknesses in 3D printed parts.
Influence of Print Orientation on Mechanical Performance
Print orientation significantly impacts mechanical performance in 3D printing, where isotropic strength indicates uniform mechanical properties in all directions, while anisotropic strength varies with direction. Layer-by-layer fabrication typically produces anisotropic parts because inter-layer adhesion is weaker than the material's bulk strength, leading to reduced tensile strength and durability perpendicular to the layers. Optimizing print orientation aligns load-bearing directions with stronger in-plane strengths, enhancing structural integrity and minimizing failure risks in functional components.
Testing and Measuring Strength in 3D Printed Parts
Testing and measuring strength in 3D printed parts reveals significant differences between isotropic and anisotropic materials, with isotropic prints exhibiting uniform mechanical properties in all directions. Anisotropic strength is predominantly influenced by layer orientation and bonding quality, requiring tensile and flexural tests aligned with print layers for accurate assessment. Advanced techniques such as digital image correlation and micro-CT scanning provide detailed insights into internal defects and stress distribution, ensuring precise evaluation of 3D printed components' structural integrity.
Design Strategies for Optimizing Strength in 3D Prints
Design strategies for optimizing strength in 3D prints emphasize understanding isotropic versus anisotropic material properties, where isotropic materials exhibit uniform strength in all directions, while anisotropic materials show variable strength depending on print orientation. Techniques such as aligning print paths with load directions, adjusting layer height, and optimizing infill patterns enhance mechanical performance by mitigating weaknesses inherent in anisotropic prints. Utilizing materials engineered for isotropic behavior or hybrid printing methods can further improve structural integrity and durability in complex 3D-printed components.
Practical Applications: When to Prioritize Isotropic or Anisotropic Strength
Isotropic strength in 3D printing ensures uniform mechanical properties in every direction, making it essential for parts subjected to multidirectional stresses, such as aerospace components and medical implants. Anisotropic strength, common in FDM printing, is suitable for applications where forces are predominantly aligned with the print layers, like prototyping and non-structural models. Prioritizing isotropic strength improves durability and reliability in load-bearing applications, while anisotropic strength allows for faster, cost-effective production when directional strength requirements are less critical.
Challenges and Limitations in Achieving Isotropic Strength
Achieving isotropic strength in 3D printing remains challenging due to the inherent layer-by-layer fabrication process, which often results in anisotropic mechanical properties with weaker interlayer adhesion. Material selection and printing parameters significantly influence bonding quality, yet optimizing these factors to eliminate directional weaknesses is complex and application-specific. Current limitations include difficulty in replicating uniform strength across all axes, leading to potential failure in load-bearing components when stress is applied perpendicular to printed layers.
Future Trends: Enhancing 3D Printing for Improved Material Strength
Future trends in 3D printing focus on enhancing isotropic strength by developing advanced materials and multi-axis printing techniques that reduce anisotropic weaknesses inherent in current layer-by-layer manufacturing. Innovations such as continuous fiber reinforcement and novel polymer composites are driving improvements in uniform mechanical properties across all directions. These advancements aim to achieve consistent, high-performance parts suitable for critical applications in aerospace, automotive, and biomedical industries.

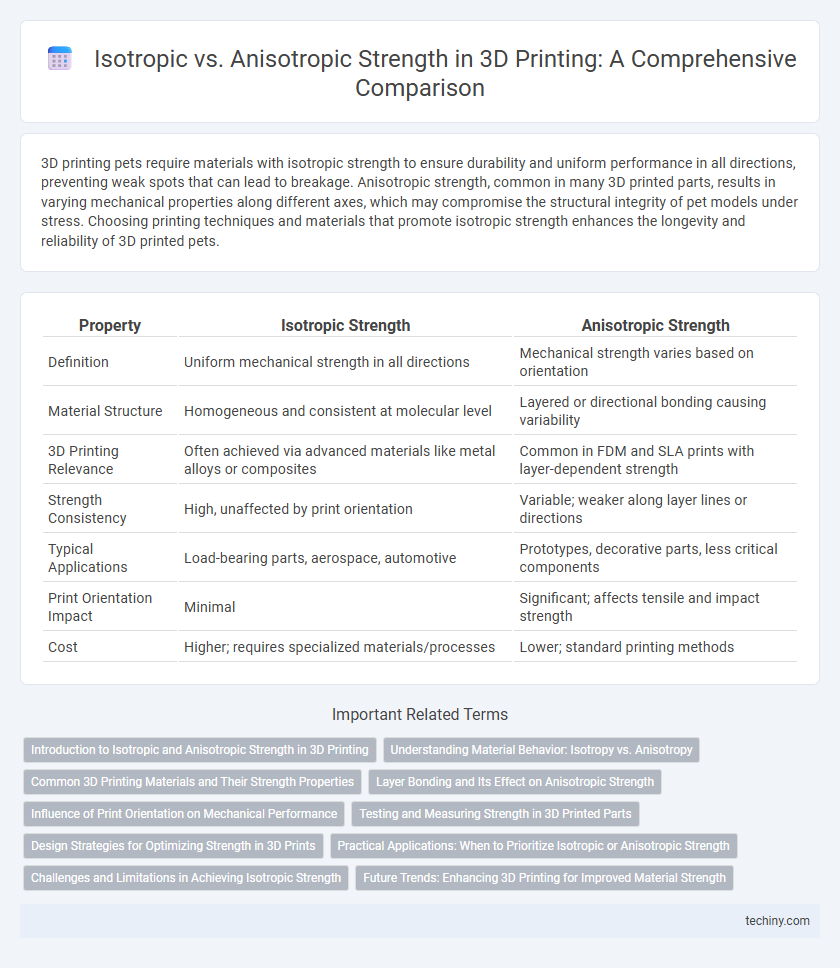

Isotropic vs Anisotropic Strength Infographic
