techiny.com Support structures in 3D printing pets provide necessary backing for overhanging parts to prevent sagging or collapse, ensuring detailed and precise features. Bridges span gaps between two points without direct support underneath, relying on controlled printing speed and cooling to maintain shape integrity. Balancing the use of supports and bridges optimizes material usage and surface finish in complex pet figurines.
Table of Comparison
| Feature | Support | Bridge |
|---|---|---|
| Purpose | Provides temporary structure for overhangs during printing | Connects two points across an unsupported gap |
| Material Usage | High, consumes extra filament for support structures | Minimal, only the bridge material is printed |
| Print Time | Increases print duration due to additional layers | Reduces time by avoiding unnecessary supports |
| Post-Processing | Requires removal of support structures, possible surface finishing | No removal needed; clean bridging if optimized |
| Surface Quality | May leave rough spots where supports contact the print | Typically smooth if bridging settings are correct |
| Best Use Case | Complex geometries with steep overhangs | Short gaps under 10 mm with flat horizontal spans |
Understanding Support Structures in 3D Printing
Support structures in 3D printing are essential for creating overhangs and complex geometries by providing temporary scaffolding that prevents sagging during the printing process. Bridges, unlike supports, span gaps between two points without touching the build plate, relying on precise filament cooling and printer calibration to avoid deformation. Optimizing support settings reduces material waste and post-processing time while ensuring accurate dimensional stability in detailed prints.
What is Bridging in 3D Printing?
Bridging in 3D printing refers to the process where the printer extrudes filament across a gap between two points without any support underneath, creating a horizontal span. Successful bridging relies on optimal print speed, cooling, and layer height to minimize sagging and achieve clean, straight lines. Unlike support structures, which are temporary scaffolds printed to uphold overhangs, bridging requires precise printer calibration to ensure structural integrity and surface quality without additional material.
Key Differences: Support vs Bridge
Support in 3D printing refers to structures printed beneath overhangs to prevent sagging or collapse, typically removed after printing, while bridges span gaps between two points without direct support underneath, relying on the printer's ability to extrude filament accurately across open space. Supports ensure print stability for complex geometries but increase material use and post-processing time, whereas successful bridging requires precise calibration to minimize drooping and maintain surface quality. Understanding these differences is crucial for optimizing print quality and minimizing waste.
Advantages of Using Supports
Supports in 3D printing provide essential stability for overhanging or complex geometries, ensuring accurate layer deposition and preventing sagging or warping. Utilizing supports improves print quality by maintaining structural integrity during the build process, especially in intricate models requiring precise detail. Effective support removal techniques minimize surface defects, enabling cleaner finishes compared to unsupported bridged sections.
Benefits of Successful Bridging
Successful bridging in 3D printing eliminates the need for additional support structures, reducing material usage and print time significantly. It enhances surface finish quality between unsupported spans, resulting in smoother, cleaner bridges that require minimal post-processing. Improved bridging techniques also expand design possibilities, allowing for intricate geometries and complex overhangs without compromising structural integrity.
When to Use Supports vs Bridges
Supports are essential in 3D printing when overhangs exceed 45 degrees or when printing complex geometries with no underlying base for the filament to adhere to, preventing sagging and ensuring structural integrity. Bridges are ideal for short horizontal spans typically under 10 mm, where the filament can stretch between two points without additional support. Choosing between supports and bridges depends on the angle and length of the overhang, filament type, and printer capabilities to optimize print quality and minimize material usage.
Common Challenges with Supports
Supports in 3D printing are essential for overhangs but often cause surface blemishes and require post-processing, leading to increased print time and material usage. Bridging, while reducing the need for supports, struggles with sagging and limited span lengths, impacting print quality. Common challenges with supports include difficulty in removal, potential damage to printed parts, and added complexity in slicing settings to balance structural stability and material efficiency.
Troubleshooting Bridge Failures
Bridge failures in 3D printing often result from insufficient cooling, incorrect printing speed, or improper extrusion settings, leading to sagging or incomplete layers. Optimizing fan speed and reducing print velocity can enhance filament solidification during bridging, while adjusting extrusion multiplier ensures consistent material flow to support overhangs effectively. Implementing support structures strategically and calibrating bridging parameters tailored to specific filament types improves print quality and minimizes structural defects.
Optimizing Print Settings for Supports and Bridges
Optimizing print settings for supports involves adjusting parameters like support density, overhang threshold, and Z distance to ensure stability without excessive material use. For bridges, fine-tuning print speed, cooling fan settings, and extrusion rate helps minimize sagging and improve surface quality. Accurate calibration of these settings reduces post-processing time and enhances overall print strength and aesthetics.
Material Considerations for Support and Bridging
Material considerations for 3D printing support structures include ease of removal, especially with soluble or breakaway materials that minimize surface damage. Bridging requires materials with good layer adhesion and low stringing tendencies, such as PLA or PETG, to maintain structural integrity across open gaps. Selecting the right filament affects print quality and post-processing efficiency when balancing support complexity and bridge performance.

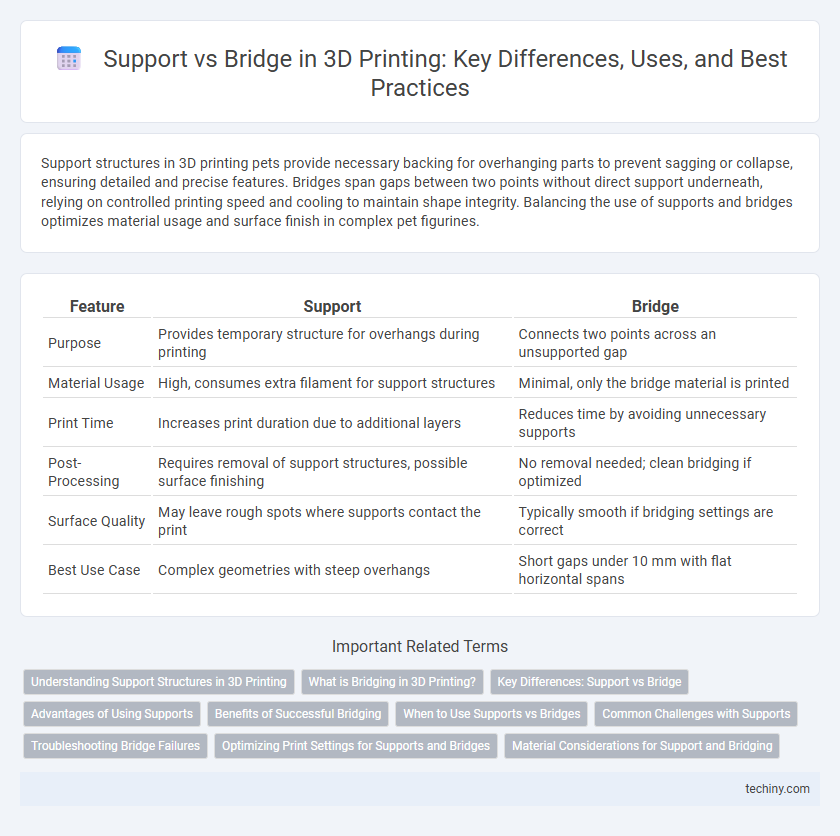

Support vs Bridge Infographic
